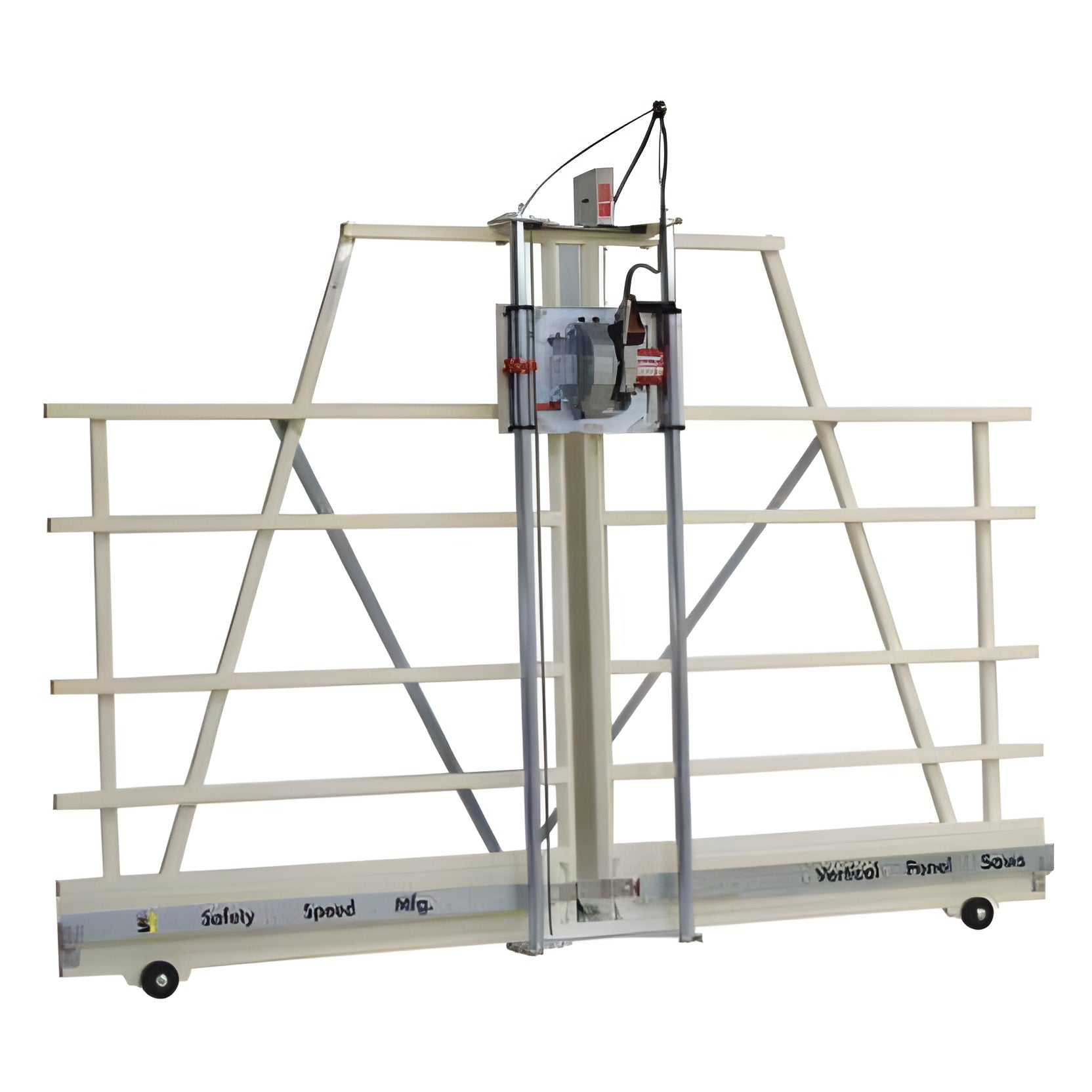

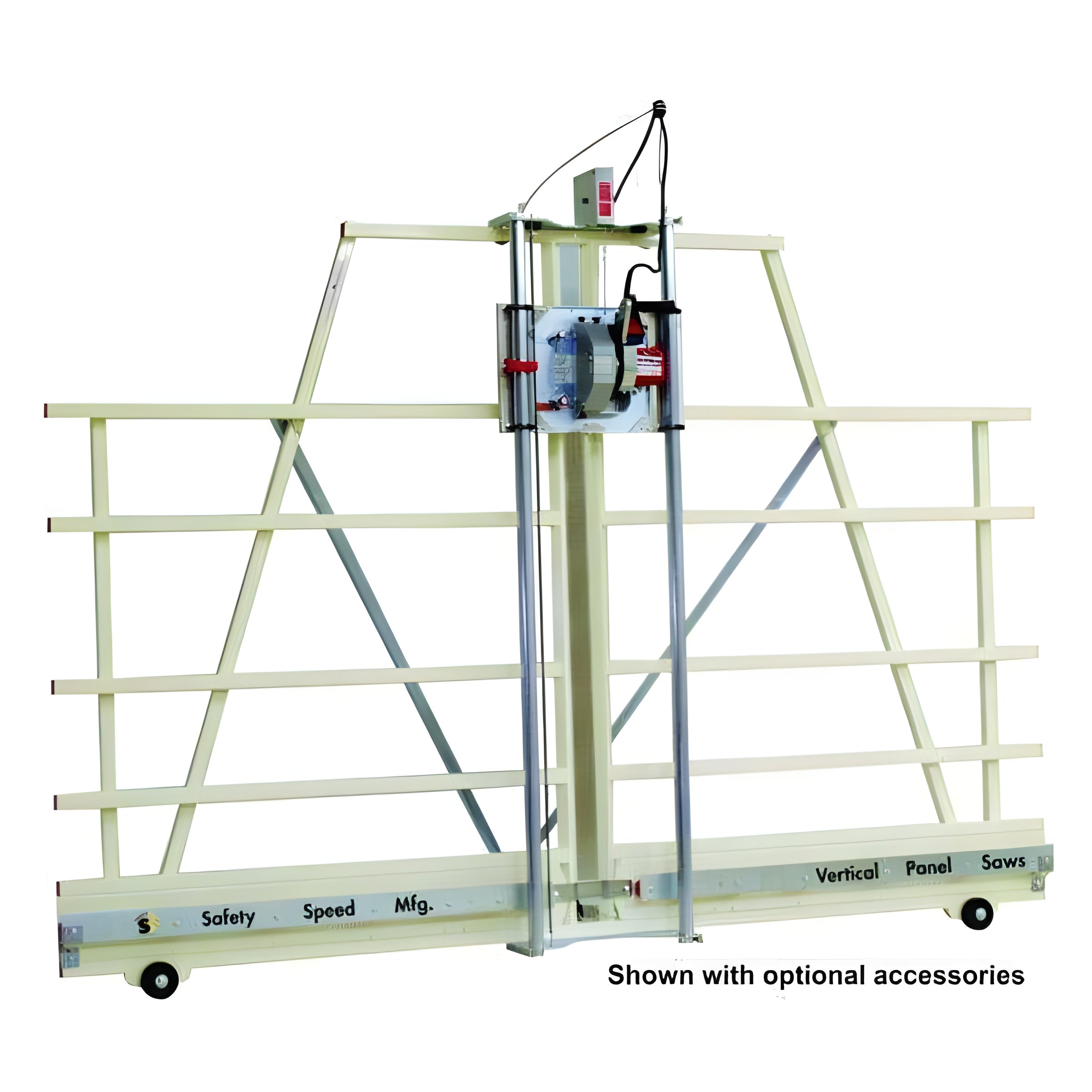

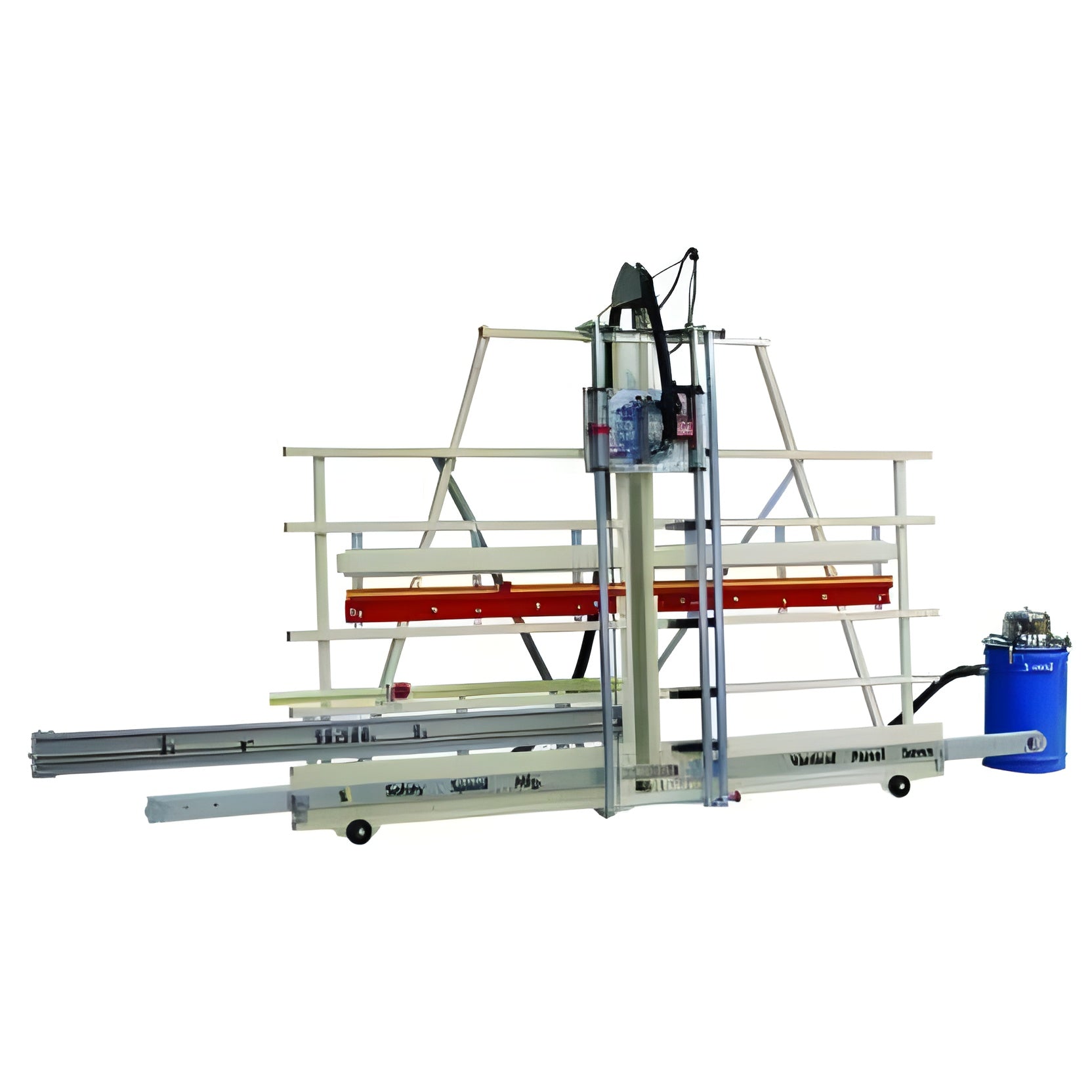

Safety Speed H5 Panel Saw

Our flagship H5 panel saws are ideally suited for customers looking for a full sized vertical panel saw at a very affordable price. This saw has a crosscutting height of 64″ while delivering an accuracy of 1/32″ straight and square. The only difference between this model and our H4 and H6 models are that the they provide 50″, and 74″ maximum crosscuts.

Standard Equipment

• Zinc plated 1 ¾”steel guide tubes.
• 4 Nylatron roller bearing systems.
• Adjustable vertical and horizontal rulers.
• Quick change from vertical to horizontal cutting.
• Thin material pressure guard.

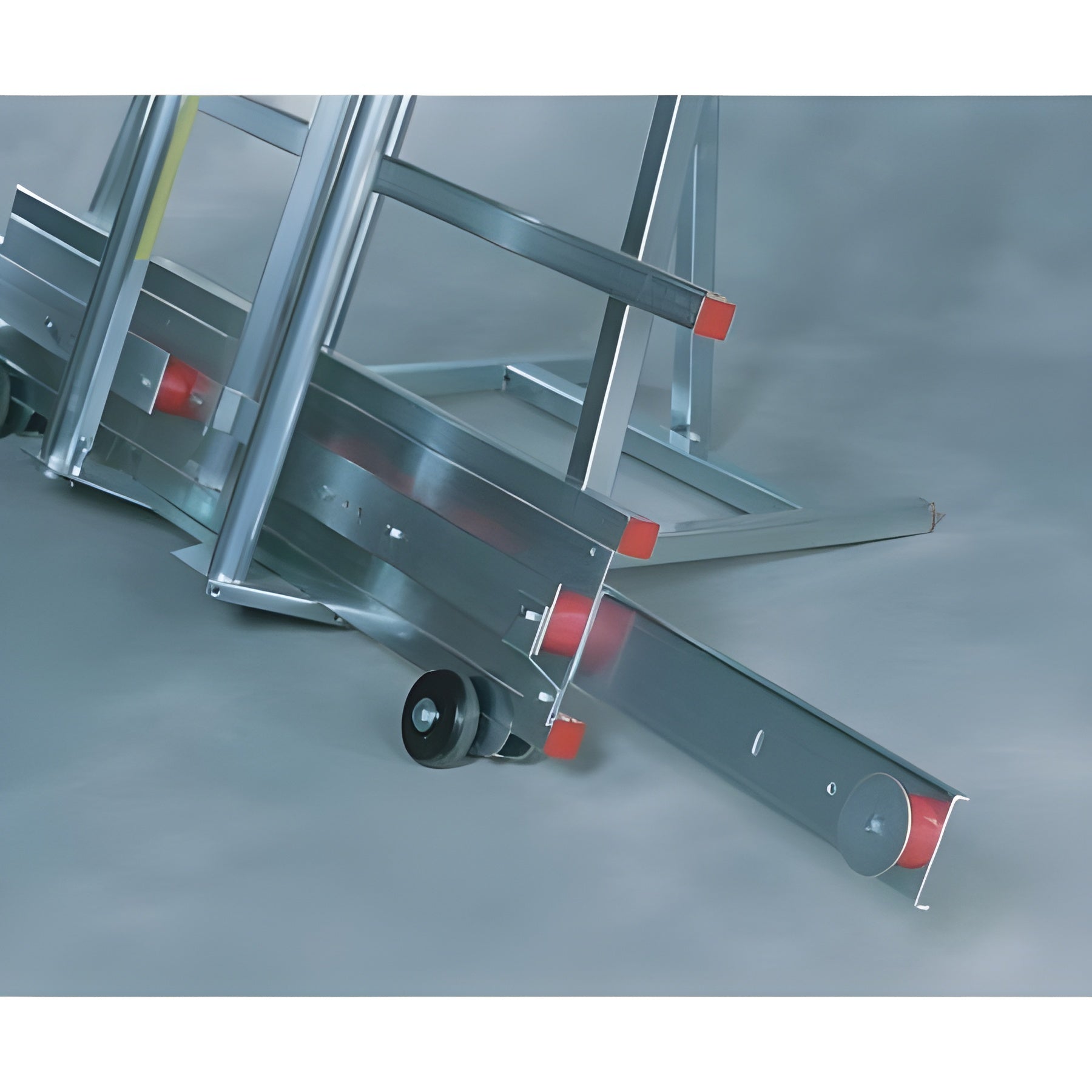

• Injection-molded plastic material rollers.
• Spring loaded counter balance system.
• Integrated dust collection bonnet.
• Extended warranty.
• TUV certified to UL/CSA standards

Specifications

Documents

Product manual

Product parts

H5 Panel Saw Sheet

What Our Experts Think

The Safety Speed H5 Panel Saw is a versatile, efficient tool that stands out for its performance and ease of use. Here's why it's a great choice for professionals:

• Precision Cutting: Offers clean, accurate cuts on a variety of materials such as wood, plastic, and composites, ensuring high-quality results every time.
• Heavy-Duty Construction: Built to withstand the rigors of industrial environments, ensuring durability and long-lasting performance.
• Space-Saving Design: The vertical format saves valuable floor space, making it ideal for workshops with limited room without sacrificing stability or functionality.
• Ease of Use: Designed with user-friendly controls that allow for quick setup and simple adjustments, enhancing productivity.
• Versatile Applications: Capable of handling large panels, making it suitable for cabinetry, furniture making, and other large-scale panel cutting projects.
• Safety Features: Includes safety features to protect operators and ensure smooth, risk-free operation.
• Efficient Performance: Designed for high-volume cutting, providing fast and consistent results, which helps improve operational efficiency.

Q&A

Q: What is the Safety Speed H5 Panel Saw used for?
A: The Safety Speed H5 Panel Saw is designed for precise cutting of large panels, such as wood, plastics, and composites, ideal for woodworking, cabinetry, and other panel processing applications.

Q: What is the maximum panel size it can handle?
A: It can handle panels up to 60" tall and virtually unlimited in width.

Q: What is the cutting depth capacity?
A: The H5 Panel Saw can cut materials up to 1¾" thick.

Q: How is precision maintained during cutting?
A: The H5 features a vertical cutting design with a rotating saw head and adjustable guides, ensuring accuracy and consistency in every cut.

Q: Is the saw portable?
A: While designed for stationary use, the compact vertical design helps save space while providing stable and efficient cutting.

Q: What industries is this panel saw suitable for?
A: The H5 is perfect for use in woodworking, cabinetry, sign-making, and other industries requiring precise panel cutting.

Q: Does it include any safety features?
A: Yes, it comes with safety features like blade guards and a counterbalance system to ensure safe operation.

Maintenance Tips

• Inspect the Saw Regularly: Check the frame, guide rails, rollers, and cutting components for wear, damage, or misalignment. Tighten any loose bolts or fasteners as needed.
• Lubricate Moving Parts: Apply appropriate lubricant to the guide rails, rollers, and carriage bearings to ensure smooth operation and reduce friction.
• Clean After Use: Remove sawdust, debris, and residue from the blade area, guide rails, and motor housing after each use to prevent buildup that could affect performance.
• Monitor Blade Condition: Inspect the saw blade regularly for dullness, chips, or damage. Replace or sharpen the blade as necessary to maintain cutting accuracy and efficiency.
• Test Safety Features: Verify that all safety guards, emergency stop mechanisms, and blade covers are functioning correctly before operating the saw.
• Check Alignment: Periodically check the alignment of the blade, fence, and guide rails to ensure straight and precise cuts. Adjust if necessary for optimal accuracy.
• Use Correct Materials: Ensure the materials being cut meet the manufacturer's specified thickness and type to avoid damage to the saw and ensure safe operation.
• Replace Worn Parts: Inspect rollers, bearings, and other components subject to wear regularly, replacing them as needed to keep the saw in good working condition.
• Wear Personal Protective Equipment (PPE): Always use safety goggles, ear protection, and a dust mask to protect against debris, noise, and dust exposure.
• Proper Storage: Store the saw in a clean, dry environment when not in use, and cover it to protect against moisture, dust, and other damaging elements.
