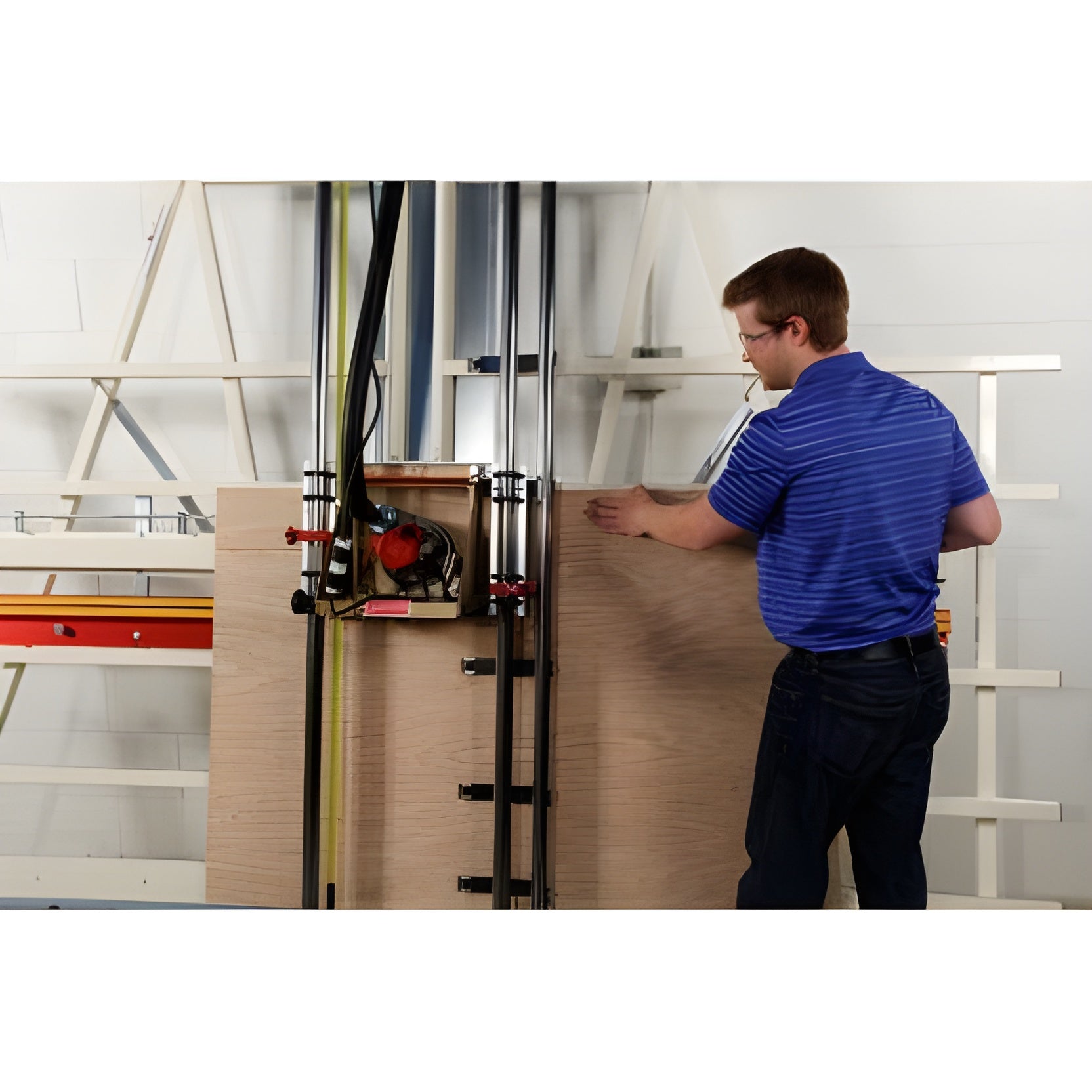

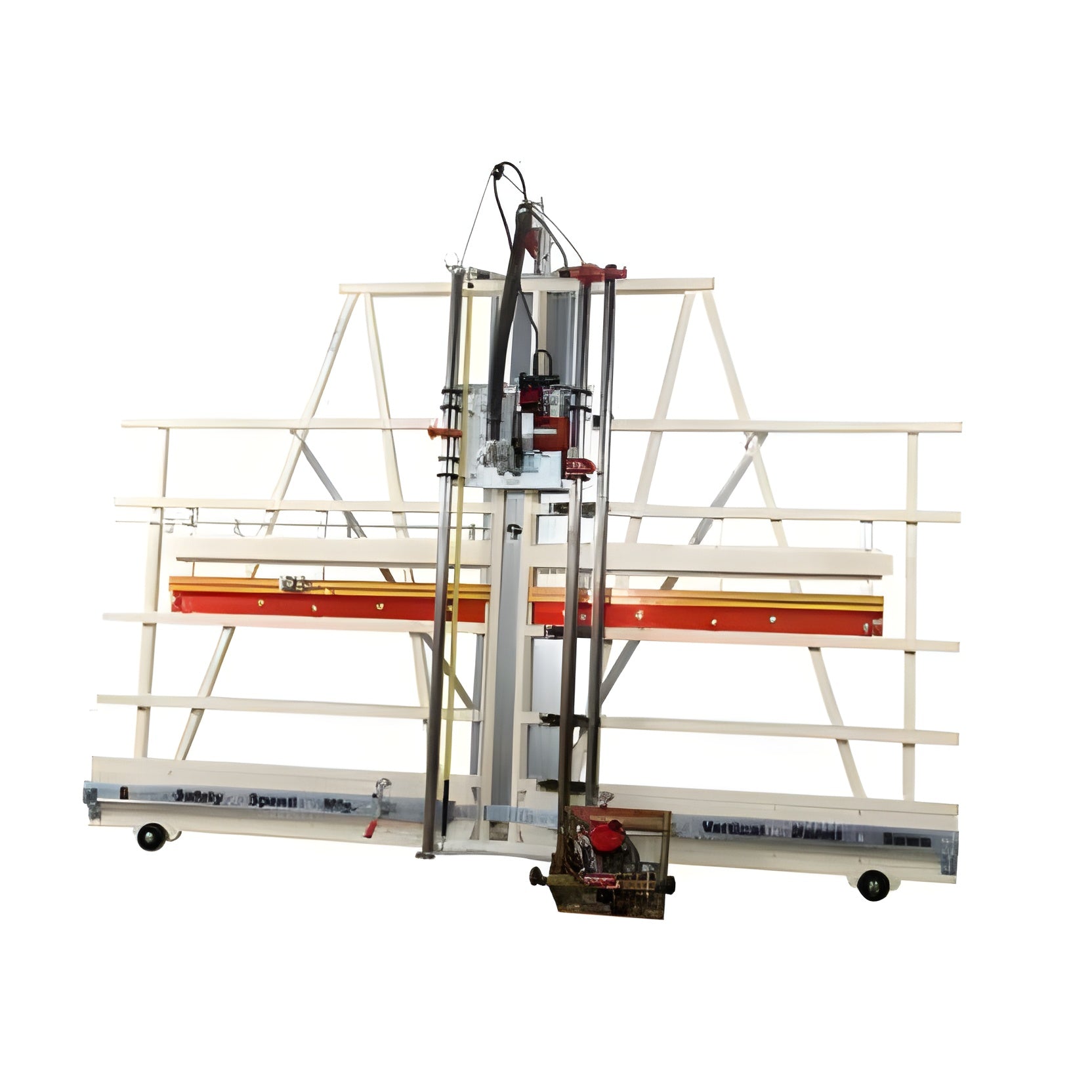

Safety Speed SR5 Panel Saw and Router Combo

The SR5 & is ideal for shops doing extensive cutting, and dado or rabbet routing. The SR5 can be changed from a saw to a router in under a minute while delivering an accuracy of 1/64” straight and square. Includes an interchangeable motor carriage with rotating saw for vertical and horizontal cutting. The patented self-adjusting, floating router carriage provides a consistent depth of cut. Our MID-WAY Fence® allows for processing smaller panels at waist level. If both panel cutting and routing are part of your operation, why not consider one machine that will do both?

For shops with limited space, this versatile machine is ideal where both panel sizing and panel routing are required. Ask about our V-grooving package.

Standard Equipment

• 3 ¼ Hp, 15 amp saw motor.
• 1 ¾ Hp, 11 amp router motor.
• 10 ft. welded steel frame.
• Chrome-plated 1 ¾” guide tubes.
• 8 Nylatron roller bearing system.
• Adjustable vertical and horizontal rulers.
• Quick change from vertical to horizontal cutting.
• Enclosed counterweight system.
• Integrated dust collection bonnet.
• Thin material pressure guard.
• Injection molded plastic rollers
• Adjustable floating router head.
• MID-WAY FENCE™ with stop.
• MID-WAY FENCE™ flip stop.
• 4 material clamps.
• 2 blind dado stops.
• Extended warranty.
• TUV certified to UL/CSA standards.

Specifications

Documents

Product manual

Product parts

SR5 and SR5U Panel Saw and Router Catalog Page 1

SR5 and SR5U Panel Saw and Router Catalog Page 2

What Our Experts Think

• Versatile Dual Function: The Safety Speed SR5 Panel Saw and Router Combo seamlessly integrates two essential functions—panel sawing and routing—into one machine, maximizing productivity and space efficiency.
• Precision Cutting and Routing: Delivers accurate, smooth cuts and fine routing capabilities for a variety of materials, including wood, MDF, and composites, ensuring high-quality results every time.
• Heavy-Duty Construction: Built to last with industrial-grade materials, this combo machine is designed for continuous, high-demand use in professional woodworking and cabinetry shops.
• Space-Efficient: Combines the power of both a panel saw and router in a single unit, saving valuable workshop space while maintaining top-tier performance.
• User-Friendly: Features easy-to-use controls, enabling quick and efficient operation with minimal setup time and user training.
• Ideal for Multiple Applications: Perfect for woodworking, cabinetry, sign-making, and other custom projects requiring both cutting and routing in one machine.

Q&A

Q: What is the Safety Speed SR5 Panel Saw and Router Combo?
A: The SR5 is a dual-purpose machine that combines a panel saw and a router in one unit, designed for cutting and routing wood, plywood, MDF, and other materials in professional woodworking environments.

Q: What are the key features of the SR5 Panel Saw and Router Combo?
A: The SR5 features a robust motor, a sliding table for precise cuts, adjustable cutting depths, and an integrated router for edge shaping, making it ideal for both cutting and routing tasks.

Q: What materials can the SR5 Panel Saw and Router Combo handle?
A: The SR5 can cut and route wood, plywood, MDF, particleboard, and laminate, making it suitable for cabinetry, furniture, and custom woodworking projects.

Q: How does the router function in the SR5 Combo?
A: The built-in router allows for detailed edge routing and shaping, offering additional versatility to the machine and eliminating the need for a separate routing station.

Q: Is the SR5 suitable for high-volume production?
A: Yes, the SR5 is designed for industrial and high-volume use, making it perfect for professional shops and factories that require both precision cutting and routing in one machine.

Q: What safety features are included with the SR5?
A: The SR5 includes safety guards, emergency stop buttons, and protective shields to ensure safe operation during use.

Q: Is the SR5 easy to maintain?
A: Yes, the SR5 is designed for easy maintenance, with accessible parts for cleaning, lubrication, and regular servicing to ensure long-term reliability.

Maintenance Tips

• Clean After Use: Remove sawdust and debris from the saw blade, router, rails, and other areas after each use. Use a soft cloth, air compressor, or vacuum system to prevent buildup that could affect performance.

• Inspect and Replace Saw Blade: Regularly check the saw blade for dullness, chips, or wear. Replace or sharpen the blade as needed to ensure clean, precise cuts and prevent damage to the motor.

• Router Bit Maintenance: Inspect router bits for dullness or chips. Replace or sharpen bits when necessary to ensure clean routing and prevent strain on the motor.

• Lubricate Moving Parts: Periodically lubricate the rails, carriage system, and other moving components to reduce friction and ensure smooth operation. Use the manufacturer-recommended lubricant for optimal performance.

• Check Fasteners and Alignment: Inspect all screws, bolts, and fasteners to ensure they are secure. Verify that the saw and router systems are properly aligned to maintain cutting and routing precision.

• Dust Collection System Maintenance: Regularly inspect and clean the dust collection system. Clear any blockages in the hoses and filters to ensure efficient dust extraction and maintain proper airflow.

• Inspect Electrical Components: Check all electrical connections, wiring, and switches for wear, damage, or loose connections. Ensure the system is properly grounded and replace any damaged parts.

• Check Feed System: Inspect the feed rollers and conveyor system for wear or misalignment. Clean and lubricate rollers to ensure smooth material feeding.

• Monitor Motor Performance: Check both the saw and router motors for any unusual noises or overheating. Ensure proper ventilation and cooling to maintain motor efficiency.
