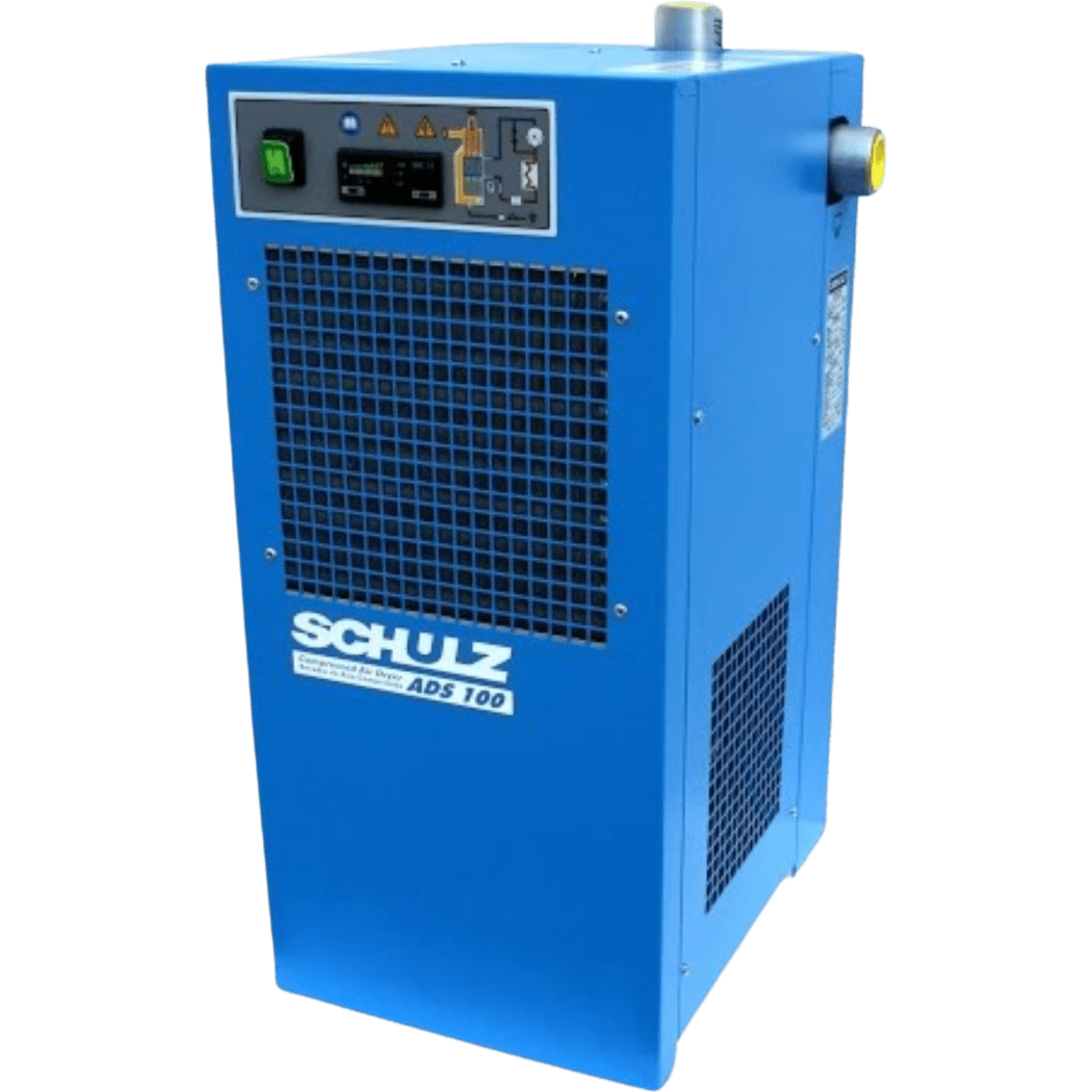

Schulz Air Dryer Non-Cycling Compressed 100 CFM 203 PSI 115V 1-Phase New -ADS-100
The Schulz non-cycling compressed air dryers have been developed for applications with inlet and room temperatures up to 100 °F. Removable panels facilitate easy and quick access to internal components. With an integrated electronic panel, this dryer is an extremely cost-effective option. Select the best option for your company.
Features
-
The ADS Schulz line of air dryers was designed to facilitate inspection and maintenance operations. The panels are easily removable and allow immediate access to internal components. ADS Schulz dryers are equipped with a quick-disconnected automatic drain valve which does not require any special tools for maintenance and cleaning.
-
The dryer’s operation is monitored by an electronic controller The dryer’s operation is monitored by an electronic controller which digitally indicates the temperature and dew point, controls the drain valve through a timer, and the condenser fan through a probe. The refrigerant is circulated through the system using high-efficiency compressors. These compressors have totally new design that brings low levels of power consumption and high dependability.
-
ADS Schulz dryers are designed to match the displacement of the air compressors, consequently, it is not necessary to oversize the dryer, resulting in savings in energy consumption.
-
ADS Schulz dryers have excellent performance, even in situations where ambient and inlet temperatures are elevated.
Specifications
| Model | ADS-100 |
|---|---|
| Flow (CFM, l/min, m³/h) | 100 / 2,830 / 170 |
| Connections | 1-1/4" NPT-F |
| Nominal Air Pressure | 100 PSI |
| Max. Air Pressure | 203 PSI |
| Voltage | 115V |
| Frequency | 60 Hz |
| Nominal Amp | 8A |
| Wire | 14 GA |
| Refrigerant Type | R134A |
| Dimensions (H x W x L) | 29.1/8 x 13.9/16 x 16.5/16 in. |
| Weight | 86 lbs. (39 kg) |
Product Manual
What Our Experts Think
- High-Capacity Air Drying: The Schulz ADS-100 Air Dryer offers an impressive 100 CFM of air drying capacity, effectively removing moisture from compressed air to ensure dry, clean air for industrial and commercial use.
- High Pressure Support: Capable of handling up to 203 PSI, it’s perfect for high-pressure systems, ensuring continuous performance in demanding environments.
- Non-Cycling Technology: The non-cycling design allows for uninterrupted air drying, providing consistent performance and reliability without the need for periodic cycling.
- Energy Efficient: Operating at 115V with a 1-phase power supply, the ADS-100 is energy-efficient, helping reduce electricity costs while delivering optimal air quality.
- Durable and Reliable: Constructed with high-quality materials, this air dryer is built to last, providing long-term reliability and minimal maintenance needs in industrial applications.
Q&A
Q: What is the Schulz ADS-100 Air Dryer?
A: The Schulz ADS-100 is a non-cycling air dryer designed for compressed air systems, offering a 100 CFM capacity and operating at 203 PSI with a 115V 1-phase power supply.
Q: Who is this air dryer suitable for?
A: Perfect for medium to large industrial applications, workshops, or businesses that require high-volume, efficient moisture removal from compressed air systems to protect equipment.
Q: What are the dimensions of the air dryer?
A: Dimensions: [Insert dimensions]. Compact enough for efficient space utilization in industrial setups while offering high-performance drying.
Q: How do I maintain the air dryer?
A: Perform routine checks for debris and moisture buildup, replace filters when needed, and ensure regular maintenance of the compressor and electrical system for optimal performance.
Maintenance Tips
- Check and Replace Air Filter: Inspect the air filter regularly and replace it when dirty to maintain proper airflow and efficiency.
- Empty Condensate Drain: Drain moisture from the system regularly to prevent buildup and ensure efficient moisture removal.
- Inspect Hoses and Connections: Examine hoses, fittings, and connections for leaks or damage to avoid air loss and maintain optimal pressure.
- Monitor Operating Pressure: Ensure that the pressure stays within the recommended range (203 PSI) to avoid stress on components.
- Lubricate Moving Parts: Regularly lubricate components such as valves and moving parts to prevent wear and ensure smooth operation.
- Test Dryer Performance: Periodically check that the air dryer cycles properly and operates within specifications.
