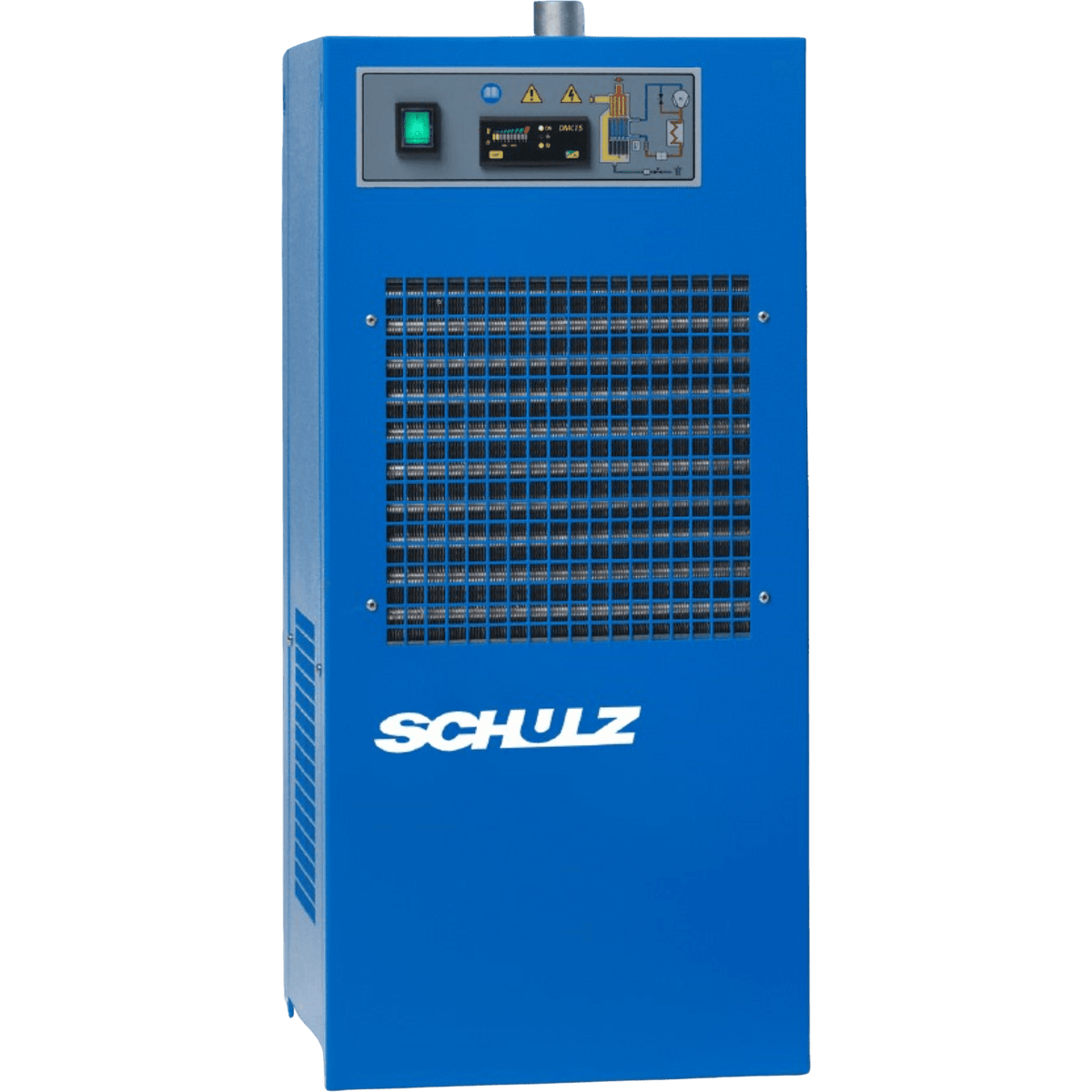

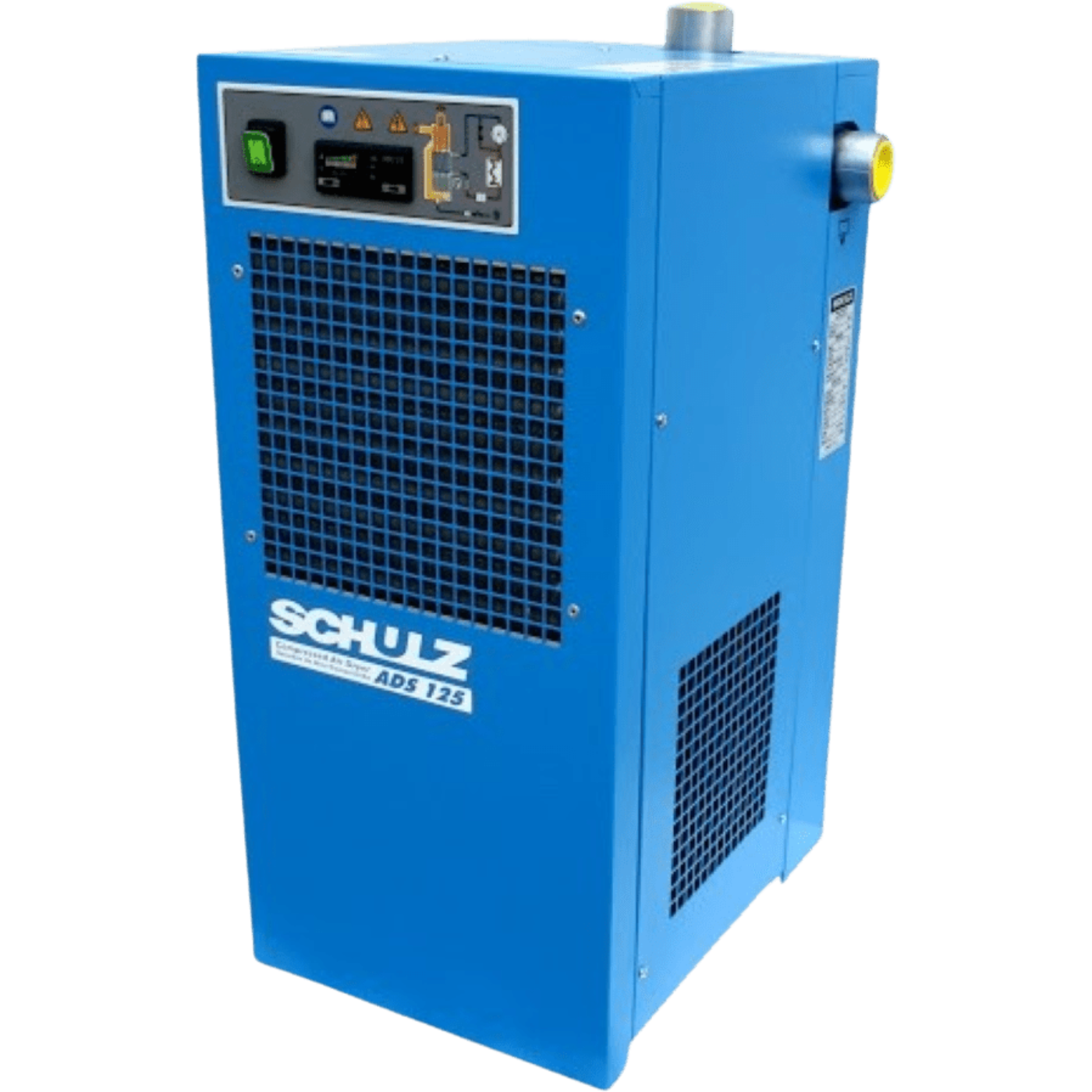

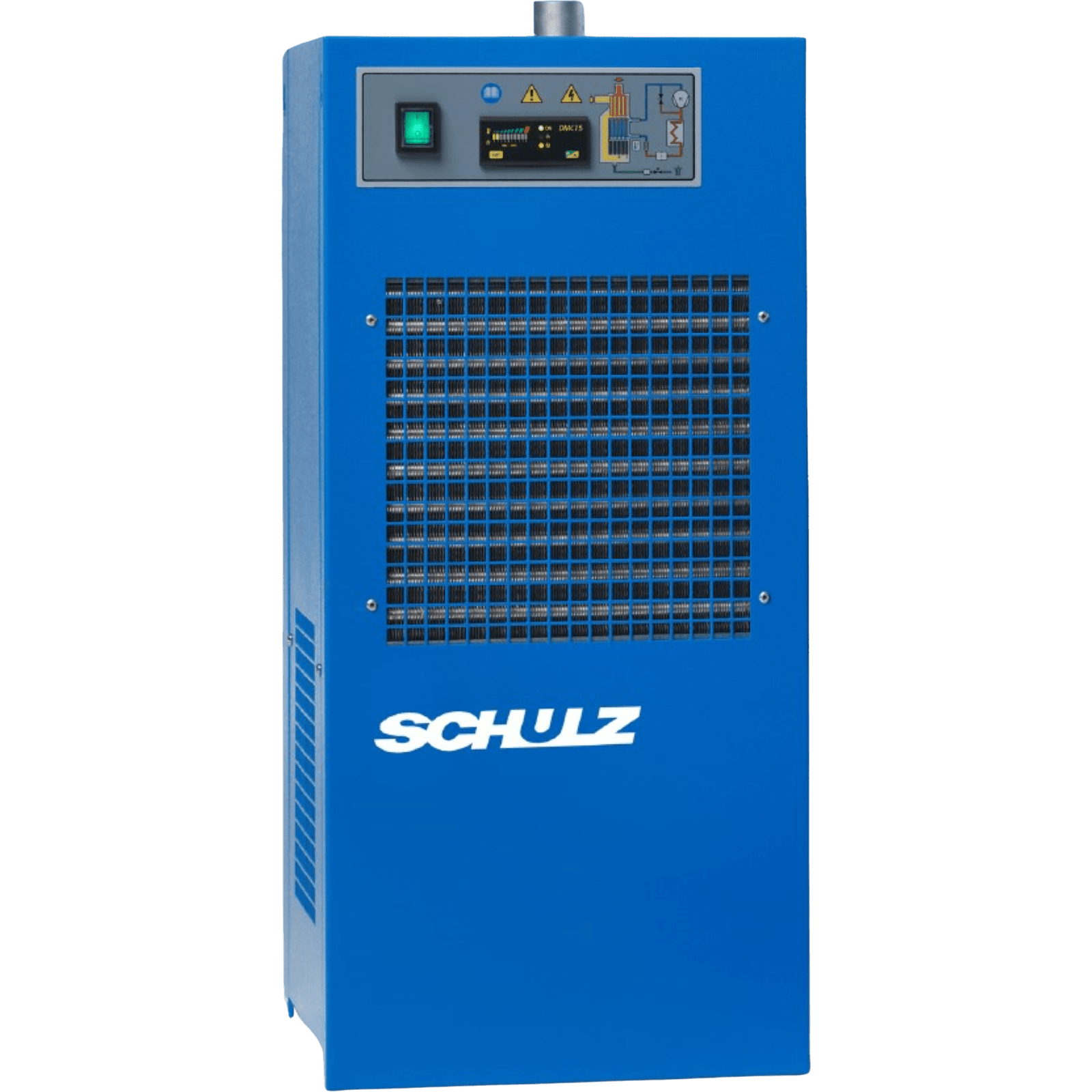

Schulz Air Dryer Non-Cycling Compressed 125 CFM 203 PSI 115V 1-Phase New - ADS-125
The Schulz non-cycling compressed air dryers have been developed for applications with inlet and room temperatures up to 100 °F. Removable panels facilitate easy and quick access to internal components. With an integrated electronic panel, this dryer is an extremely cost-effective option. Select the best option for your company.
Features
-
The ADS Schulz line of air dryers was designed to facilitate inspection and maintenance operations. The panels are easily removable and allow immediate access to internal components. ADS Schulz dryers are equipped with a quick-disconnected automatic drain valve which does not require any special tools for maintenance and cleaning.
-
The dryer’s operation is monitored by an electronic controller The dryer’s operation is monitored by an electronic controller which digitally indicates the temperature and dew point, controls the drain valve through a timer, and the condenser fan through a probe. The refrigerant is circulated through the system using high-efficiency compressors. These compressors have totally new design that brings low levels of power consumption and high dependability.
-
ADS Schulz dryers are designed to match the displacement of the air compressors, consequently, it is not necessary to oversize the dryer, resulting in savings in energy consumption.
-
ADS Schulz dryers have excellent performance, even in situations where ambient and inlet temperatures are elevated.
Specifications
| Model | ADS-125 |
|---|---|
| Flow (CFM, l/min, m³/h) | 125 / 3,538 / 212 |
| Connections | 1-1/4" NPT-F |
| Nominal Air Pressure | 100 PSI |
| Max. Air Pressure | 203 PSI |
| Voltage | 115V |
| Frequency | 60 Hz |
| Nominal Amp | 7.6A |
| Wire | 10 GA |
| Refrigerant Type | R407C |
| Dimensions (H x W x L) | 29.1/8 x 13.9/16 x 16.5/16 in. |
| Weight | 88 lbs. (40 kg) |
Product Manual
What Our Experts Think
- High-Performance Air Drying: The Schulz ADS-125 Air Dryer provides 125 CFM of air drying capacity, efficiently removing moisture from compressed air, ensuring a constant supply of clean, dry air for industrial applications.
- Powerful Pressure Handling: Built to withstand pressures up to 203 PSI, the ADS-125 is ideal for high-demand environments where reliability and consistent performance are essential.
- Non-Cycling Technology: The non-cycling design offers continuous, uninterrupted operation, ensuring a steady flow of dry air without periodic downtime, making it perfect for high-volume operations.
- Energy Efficient: Designed to run on 115V 1-phase power, the ADS-125 is energy-efficient, reducing operational costs while delivering high-quality performance.
- Robust and Long-Lasting: Constructed with premium materials for durability, the ADS-125 is engineered for long-term reliability, with minimal maintenance and maximum uptime.
Q&A
Q: What is the Schulz ADS-125 Air Dryer?
A: The Schulz ADS-125 is a non-cycling air dryer designed for compressed air systems, offering a 125 CFM capacity and operating at 203 PSI with a 115V 1-phase electrical supply.
Q: Who is this air dryer suitable for?
A: Ideal for larger industrial applications, commercial facilities, or workshops that need high-volume, reliable moisture removal from compressed air systems to safeguard equipment and tools.
Q: What are the dimensions of the air dryer?
A: Dimensions: [Insert dimensions]. Designed to provide efficient performance in a space-saving package for industrial environments.
Q: How do I maintain the air dryer?
A: Regular maintenance involves checking for moisture and debris accumulation, replacing filters as necessary, and ensuring the compressor and electrical systems are functioning properly to maintain performance.
Maintenance Tips
- Inspect and Replace Air Filter: Regularly check the air filter for dirt and debris, replacing it as needed to maintain airflow and efficiency.
- Drain Condensate: Empty the condensate drain frequently to prevent moisture buildup and ensure optimal moisture removal from the compressed air.
- Check for Leaks: Examine hoses, fittings, and connections for air leaks, and tighten or replace any damaged parts to maintain pressure levels.
- Monitor Pressure: Ensure that the system operates within the recommended 203 PSI pressure range to prevent overloading and potential damage.
- Lubricate Moving Parts: Periodically lubricate valves and any moving components as per the manufacturer's guidelines to reduce friction and wear.
- Test Dryer Performance: Regularly test the air dryer’s performance to ensure it is cycling correctly and meeting air quality standards.
