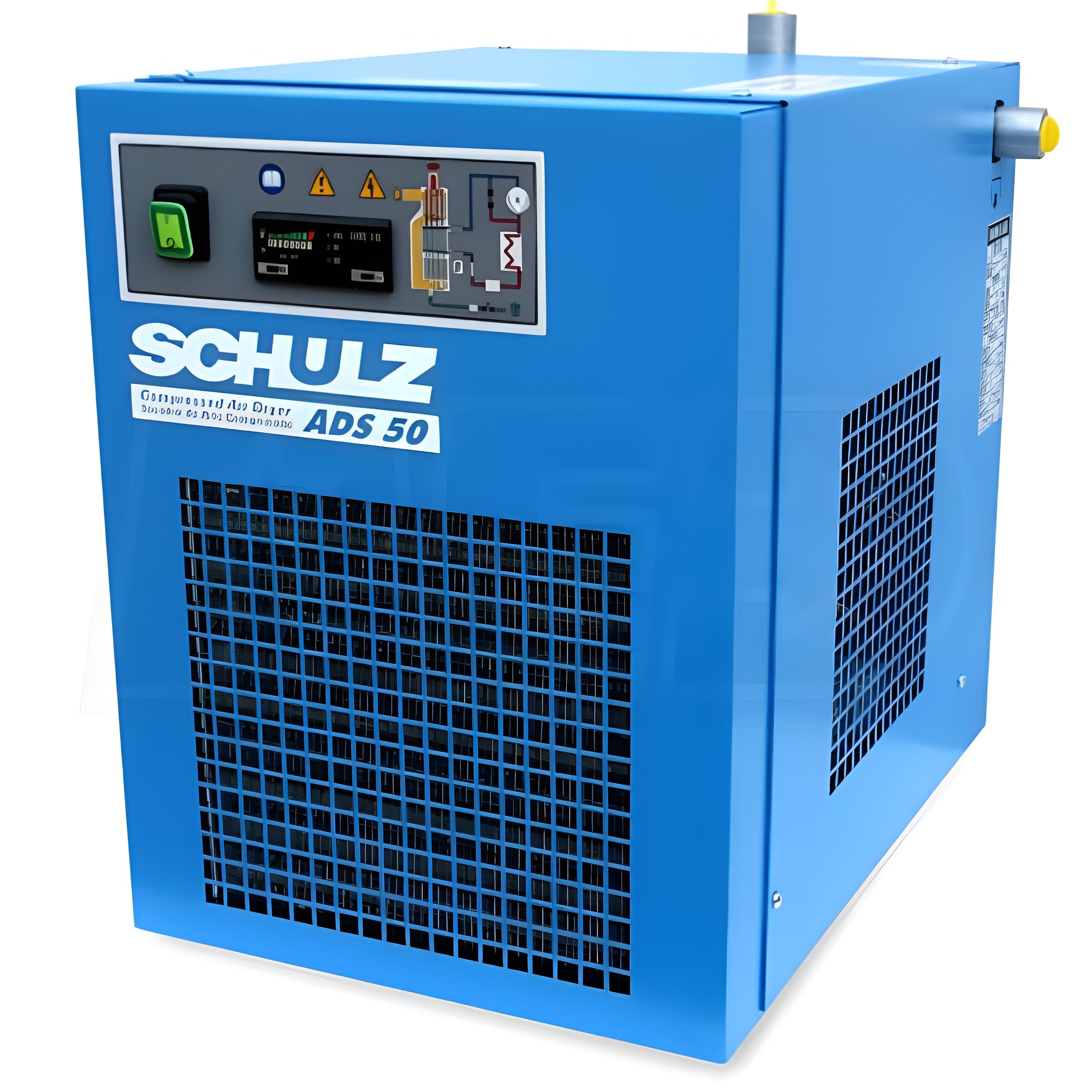

Schulz Air Dryer Non-Cycling Compressed 50 CFM 232 PSI 115V 1-Phase New - ADS-50
The Schulz non-cycling compressed air dryers have been developed for applications with inlet and room temperatures up to 100 °F. Removable panels facilitate easy and quick access to internal components. With an integrated electronic panel, this dryer is an extremely cost-effective option. Select the best option for your company.
Features
-
The ADS Schulz line of air dryers was designed to facilitate inspection and maintenance operations. The panels are easily removable and allow immediate access to internal components. ADS Schulz dryers are equipped with a quick-disconnected automatic drain valve which does not require any special tools for maintenance and cleaning.
-
The dryer’s operation is monitored by an electronic controller The dryer’s operation is monitored by an electronic controller which digitally indicates the temperature and dew point, controls the drain valve through a timer, and the condenser fan through a probe. The refrigerant is circulated through the system using high-efficiency compressors. These compressors have totally new design that brings low levels of power consumption and high dependability.
-
ADS Schulz dryers are designed to match the displacement of the air compressors, consequently, it is not necessary to oversize the dryer, resulting in savings in energy consumption.
-
ADS Schulz dryers have excellent performance, even in situations where ambient and inlet temperatures are elevated.
Specifications
| Model | ADS-50 |
|---|---|
| Flow (CFM, l/min, m³/h) | 50 / 1,415 / 85 |
| Connections | 1/2" NPT-F |
| Nominal Air Pressure | 100 PSI |
| Max. Air Pressure | 232 PSI |
| Voltage | 115V |
| Frequency | 60 Hz |
| Nominal Amp | 3.4A |
| Wire | 14 GA |
| Refrigerant Type | R134A |
| Dimensions (H x W x L) | 18.11/16 x 14.9/16 x 18.11/16 in. |
| Weight | 70 lbs. (32 kg) |
Product Manual
What Our Experts Think
- Optimal Air Drying Capacity: The Schulz ADS-50 Air Dryer delivers 50 CFM of drying capacity, making it a great choice for medium-scale industrial and commercial applications requiring efficient moisture removal.
- High Pressure Performance: Capable of handling pressures up to 232 PSI, this air dryer ensures reliable moisture removal even in demanding high-pressure environments.
- Non-Cycling Operation: The non-cycling design allows for continuous, uninterrupted drying performance, ensuring consistent delivery of dry air without any periodic downtime.
- Energy Efficient: Operating at 115V with a 1-phase power supply, the ADS-50 is energy-efficient, keeping energy costs low while maintaining high drying performance.
- Durable and Long-Lasting: Constructed with high-quality materials, the ADS-50 is built for durability, providing long-term reliability and requiring minimal maintenance.
Q&A
Q: What is the Schulz ADS-50 Air Dryer?
A: The Schulz ADS-50 is a non-cycling air dryer designed for compressed air systems, offering a 50 CFM capacity and operating at 232 PSI with a 115V 1-phase power supply.
Q: Who is this air dryer suitable for?
A: Perfect for medium-sized industrial applications, workshops, or facilities requiring reliable and efficient moisture removal from compressed air systems.
Q: What are the dimensions of the air dryer?
A: Dimensions: [Insert dimensions]. Compact and efficient, designed for integration into compressed air systems with space-saving in mind.
Q: How do I maintain the air dryer?
A: Check for debris or moisture buildup regularly, replace filters when necessary, and conduct routine maintenance on the compressor and electrical components to ensure peak performance.
Maintenance Tips
- Check Air Filter: Inspect the air filter regularly and replace it if necessary to maintain optimal airflow and prevent contamination.
- Drain Condensate: Empty the condensate drain frequently to prevent water buildup and ensure moisture is effectively removed.
- Inspect Connections and Hoses: Examine all hoses, fittings, and connections for leaks or wear and replace damaged parts as needed.
- Monitor Pressure: Keep the operating pressure within the recommended 232 PSI to ensure safe and efficient operation.
- Lubricate Components: Regularly lubricate valves and other moving parts per the manufacturer's guidelines to reduce friction and maintain smooth operation.
- Test Functionality: Periodically test the dryer’s cycling function and performance to ensure it is working correctly.
