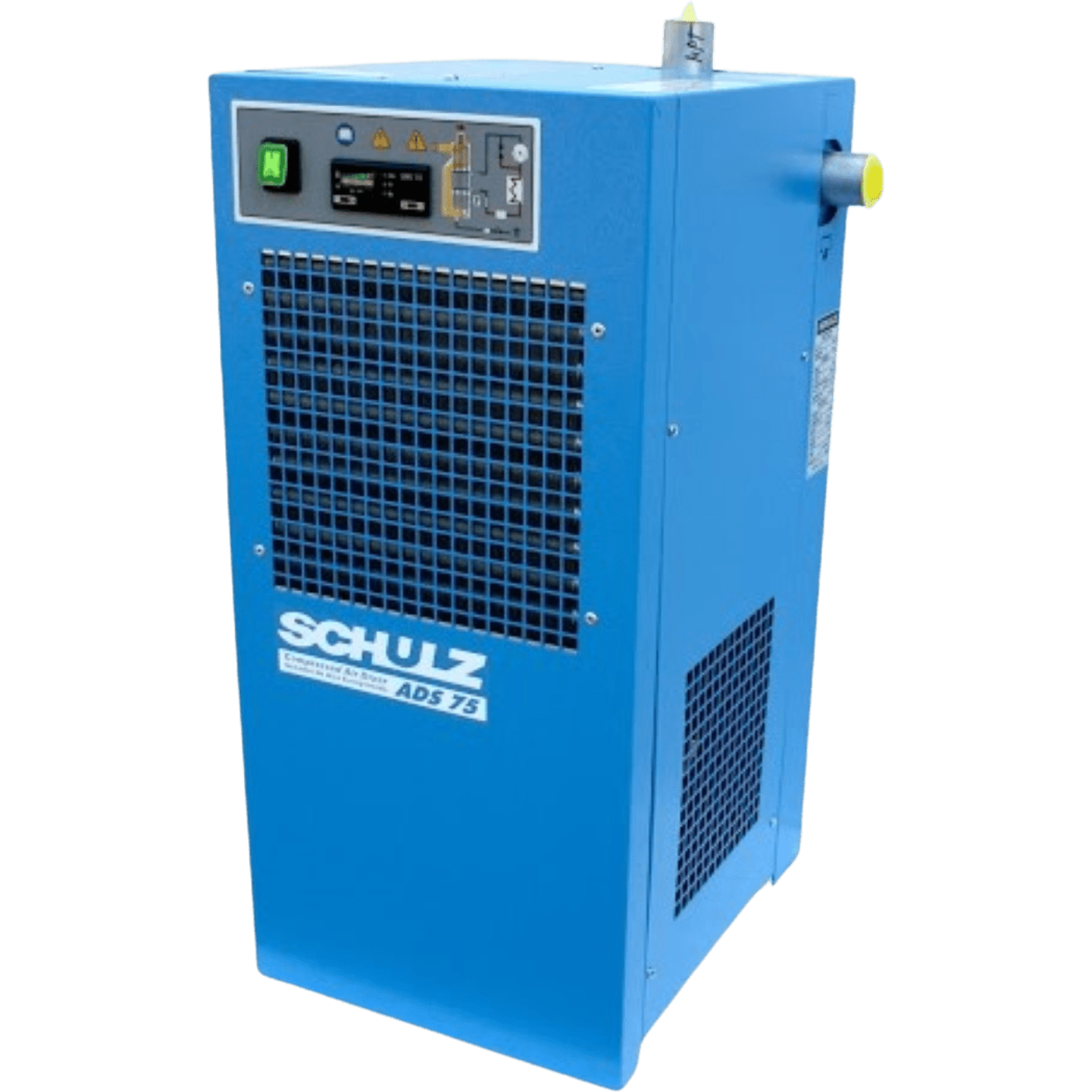

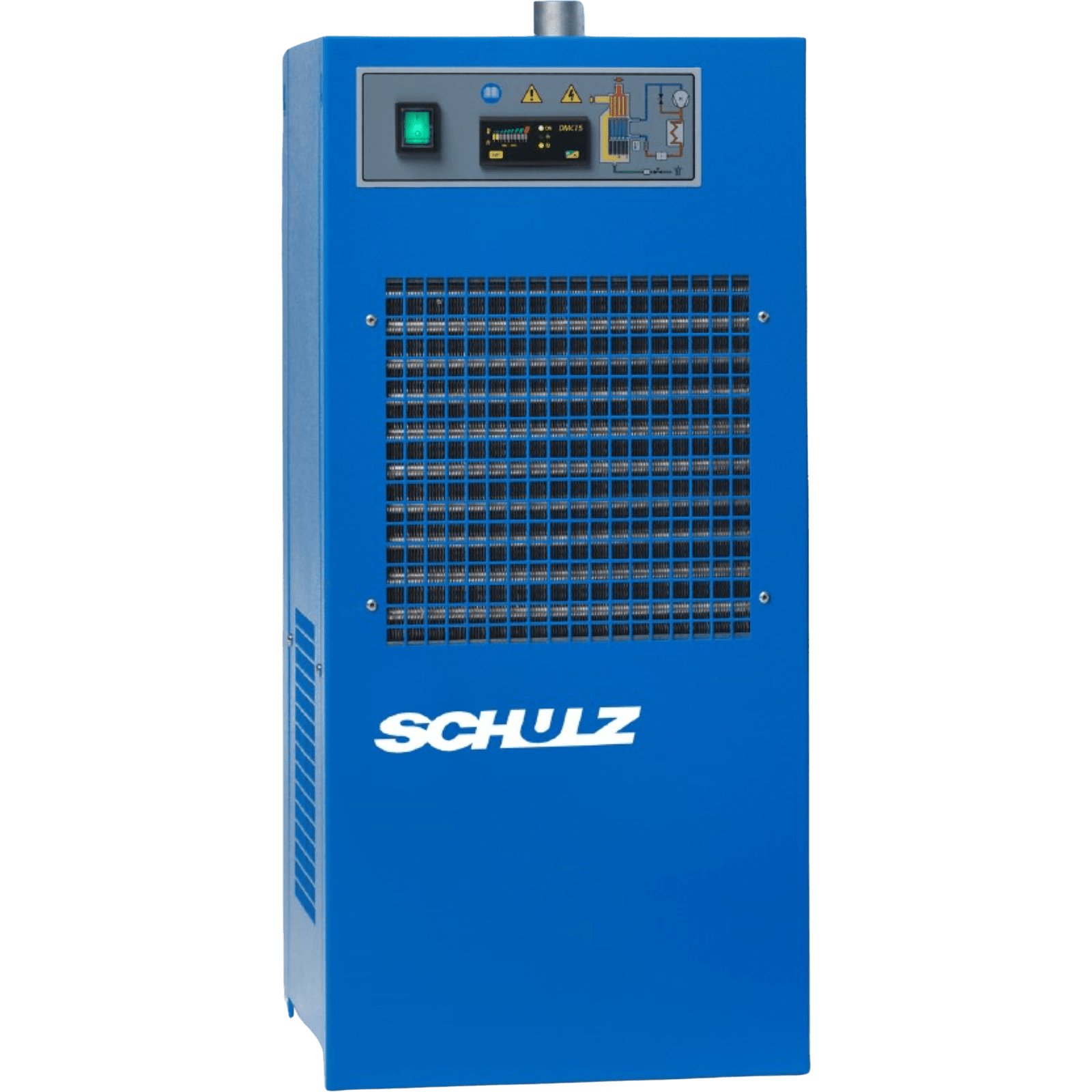

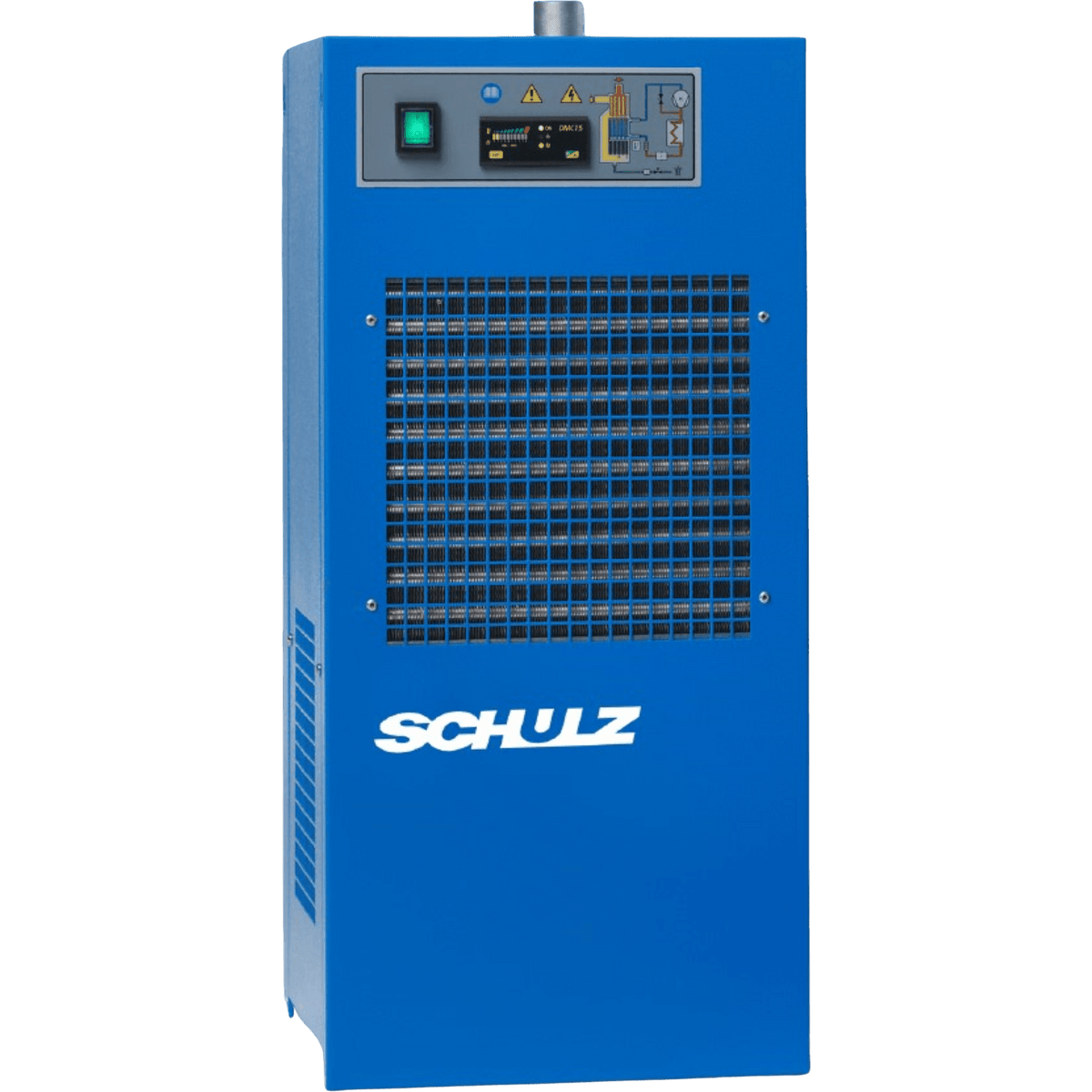

Schulz Air Dryer Non-Cycling Compressed 75 CFM 203 PSI 115V 1-Phase New - ADS-75
The Schulz non-cycling compressed air dryers have been developed for applications with inlet and room temperatures up to 100 °F. Removable panels facilitate easy and quick access to internal components. With an integrated electronic panel, this dryer is an extremely cost-effective option. Select the best option for your company.
Features
-
The ADS Schulz line of air dryers was designed to facilitate inspection and maintenance operations. The panels are easily removable and allow immediate access to internal components. ADS Schulz dryers are equipped with a quick-disconnected automatic drain valve which does not require any special tools for maintenance and cleaning.
-
The dryer’s operation is monitored by an electronic controller The dryer’s operation is monitored by an electronic controller which digitally indicates the temperature and dew point, controls the drain valve through a timer, and the condenser fan through a probe. The refrigerant is circulated through the system using high-efficiency compressors. These compressors have totally new design that brings low levels of power consumption and high dependability.
-
ADS Schulz dryers are designed to match the displacement of the air compressors, consequently, it is not necessary to oversize the dryer, resulting in savings in energy consumption.
-
ADS Schulz dryers have excellent performance, even in situations where ambient and inlet temperatures are elevated.
Specifications
| Model | ADS-75 |
|---|---|
| Flow (CFM, l/min, m³/h) | 75 / 2,123 / 127 |
| Connections | 1" NPT-F |
| Nominal Air Pressure | 100 PSI |
| Max. Air Pressure | 203 PSI |
| Voltage | 115V |
| Frequency | 60 Hz |
| Nominal Amp | 5.1A |
| Wire | 10 GA |
| Refrigerant Type | R134A |
| Dimensions (H x W x L) | 29.1/8 x 13.9/16 x 15.3/8 in. |
| Weight | 75 lbs. (34 kg) |
Product Manual
What Our Experts Think
- Reliable Drying Power: The Schulz ADS-75 Air Dryer provides 75 CFM of drying capacity, perfect for medium to large-scale industrial applications that require efficient moisture removal from compressed air systems.
- High Pressure Handling: With a maximum pressure of 203 PSI, it is ideal for high-demand environments, ensuring consistent, dry air under challenging conditions.
- Non-Cycling Design: The non-cycling technology ensures continuous operation without downtime, maintaining a steady flow of dry air and improving system efficiency.
- Energy Efficient: Operating on 115V 1-phase power, the ADS-75 is designed for energy efficiency, reducing operating costs while providing reliable and high-performance drying.
- Durable Construction: Built with durable materials, the ADS-75 offers long-lasting performance and minimal maintenance, ensuring that it can handle tough industrial applications over time.
Q&A
Q: What is the Schulz ADS-75 Air Dryer?
A: The Schulz ADS-75 is a non-cycling air dryer designed for compressed air systems, providing a 75 CFM capacity and operating at 203 PSI with a 115V 1-phase power supply.
Q: Who is this air dryer suitable for?
A: Ideal for medium to large industrial applications, workshops, and facilities that require efficient moisture removal from compressed air to prevent damage to tools and equipment.
Q: What are the dimensions of the air dryer?
A: Dimensions: [Insert dimensions]. Designed to be compact yet powerful, making it easy to integrate into your compressed air system without taking up too much space.
Q: How do I maintain the air dryer?
A: Regularly inspect for debris and moisture buildup, change filters as needed, and ensure the compressor and electrical system are maintained to ensure consistent and efficient performance.
Maintenance Tips
- Inspect Air Filter: Check and clean or replace the air filter regularly to prevent dirt buildup and ensure efficient airflow.
- Drain Condensate: Empty the condensate drain frequently to prevent moisture accumulation and maintain proper moisture removal.
- Check for Leaks: Inspect hoses, fittings, and connections for leaks, and replace or tighten as needed to maintain proper pressure.
- Monitor Pressure Levels: Ensure the operating pressure stays within the recommended 203 PSI to avoid system stress and damage.
- Lubricate Moving Parts: Regularly lubricate valves and other moving components to prevent wear and ensure smooth operation.
- Test Functionality: Periodically test the air dryer to ensure it is cycling properly and maintaining consistent performance.
