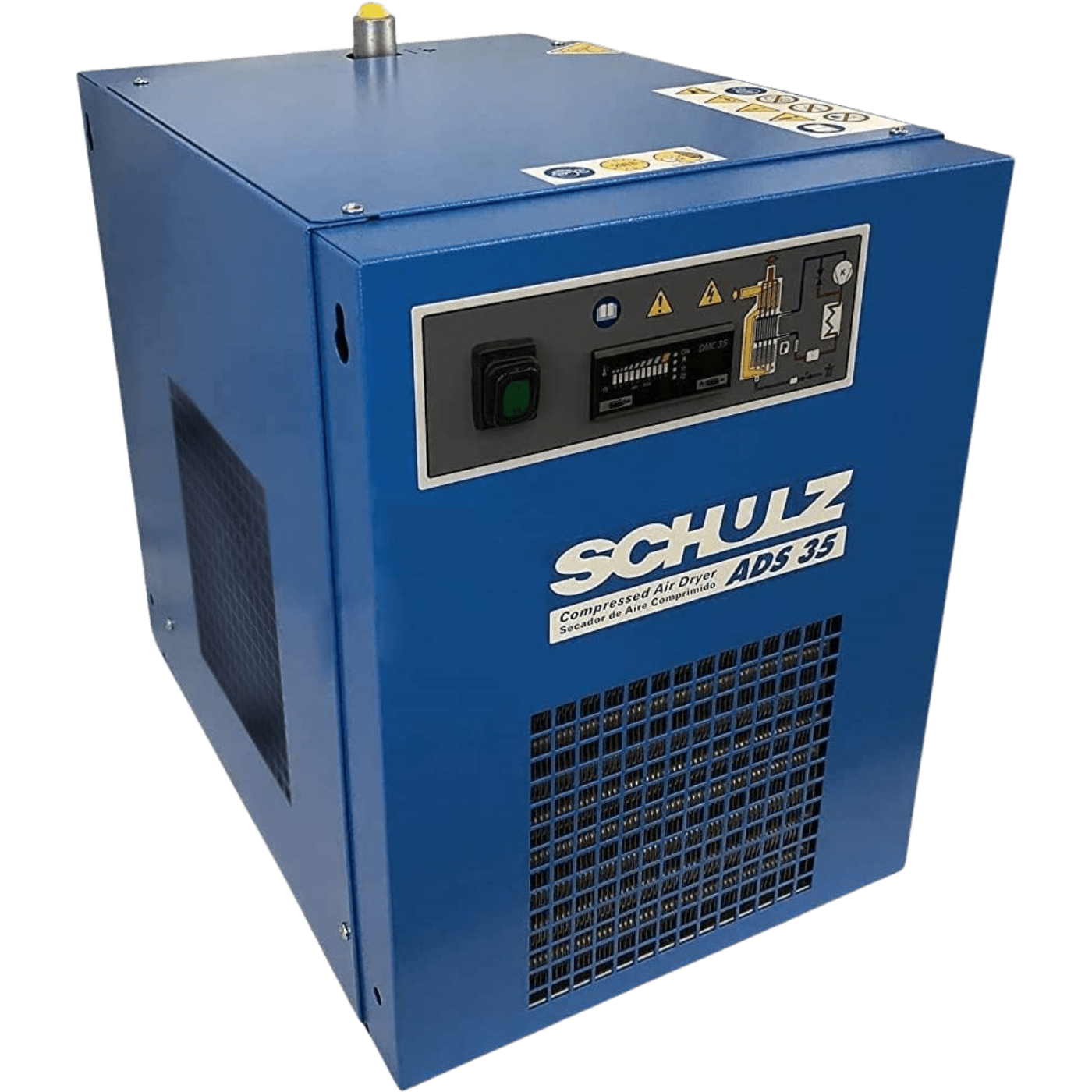

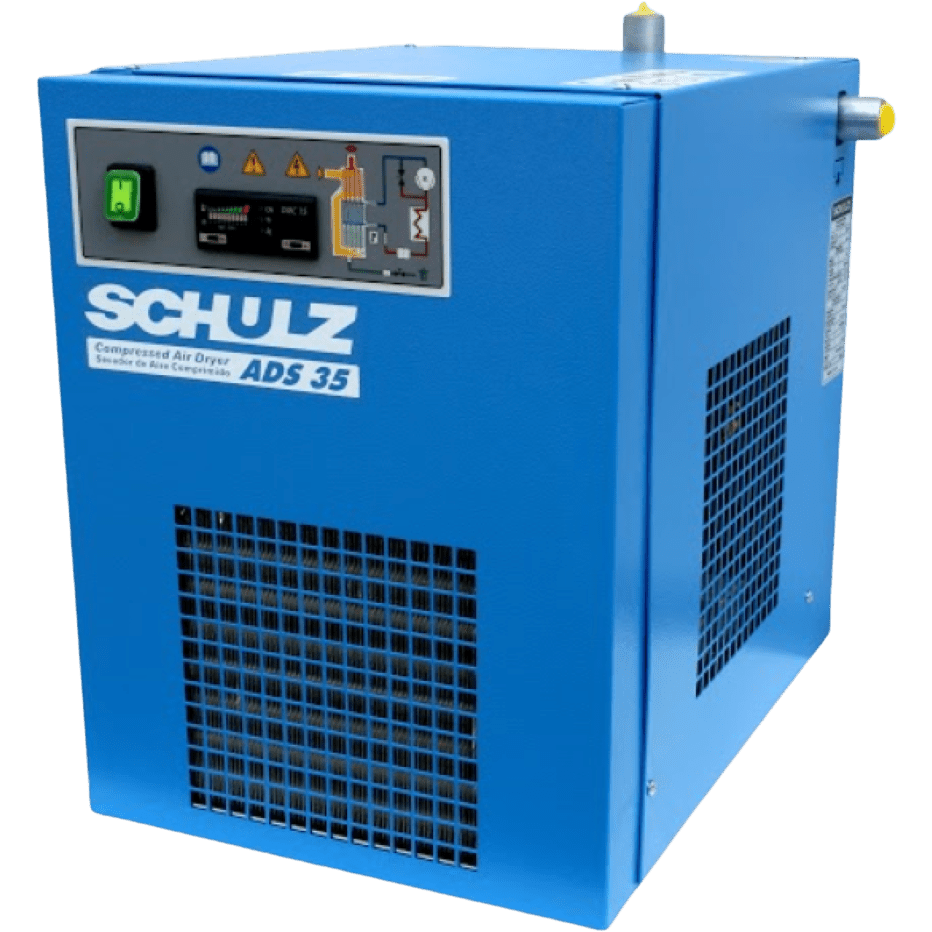

Schulz ADS-35 Air Dryer Non-Cycling Compressed 35 CFM 232 PSI 115V 1-Phase New - ADS-35
The Schulz non-cycling compressed air dryers have been developed for applications with inlet and room temperatures up to 100 °F. Removable panels facilitate easy and quick access to internal components. With an integrated electronic panel, this dryer is an extremely cost-effective option. Select the best option for your company.
Features
-
The ADS Schulz line of air dryers was designed to facilitate inspection and maintenance operations. The panels are easily removable and allow immediate access to internal components. ADS Schulz dryers are equipped with a quick-disconnected automatic drain valve which does not require any special tools for maintenance and cleaning.
-
The dryer’s operation is monitored by an electronic controller The dryer’s operation is monitored by an electronic controller which digitally indicates the temperature and dew point, controls the drain valve through a timer, and the condenser fan through a probe. The refrigerant is circulated through the system using high-efficiency compressors. These compressors have totally new design that brings low levels of power consumption and high dependability.
-
ADS Schulz dryers are designed to match the displacement of the air compressors, consequently, it is not necessary to oversize the dryer, resulting in savings in energy consumption.
-
ADS Schulz dryers have excellent performance, even in situations where ambient and inlet temperatures are elevated.
Specifications
|
Model |
ADS-35 |
|
Flow (CFM, l/min, m³/h) |
35 / 991 / 59 |
|
Connections |
1/2" NPT-F |
|
Nominal Air Pressure |
100 PSI |
|
Max. Air Pressure |
232 PSI |
|
Voltage |
115V |
|
Frequency |
60 Hz |
|
Nominal Amp |
3.2A |
|
Wire |
10 GA |
|
Refrigerant Type |
R134A |
|
Dimensions (H x W x L) |
18.11/16 x 14.9/16 x 18.11/16 in. |
|
Weight |
62 lbs. (28 kg) |
Product Manual
What Our Experts Think
- Reliable Air Drying: The Schulz ADS-35 Air Dryer delivers 35 CFM of air drying capacity, effectively removing moisture from compressed air to ensure clean and dry air for your equipment.
- High Pressure Performance: Built to handle pressures up to 232 PSI, making it ideal for high-demand industrial applications where consistent, dry air is crucial.
- Non-Cycling Technology: Designed with non-cycling technology to offer continuous performance without interruption, providing a steady flow of clean, dry air.
- Energy Efficient: Operating at 115V with a 1-phase power supply, the ADS-35 is energy-efficient, helping reduce operational costs while maintaining optimal performance.
- Durable Construction: Built with high-quality materials to withstand the demands of industrial environments, ensuring long-lasting reliability and minimal downtime.
Q&A
Q: What is the Schulz ADS-35 Air Dryer?
A: The Schulz ADS-35 is a non-cycling air dryer designed for compressed air systems, offering a 35 CFM capacity, operating at 232 PSI, and powered by a 115V 1-phase electrical supply.
Q: Who is this air dryer suitable for?
A: Ideal for small to medium-sized industrial applications or workshops requiring efficient drying of compressed air to prevent moisture damage to equipment and tools.
Q: What are the dimensions of the air dryer?
A: Dimensions: [Insert dimensions]. Designed for easy integration into compressed air systems with compact sizing.
Q: How do I maintain the air dryer?
A: Regularly check for debris and moisture buildup, and replace filters as needed. Perform routine maintenance on the compressor and electrical components to ensure efficient operation.
Maintenance Tips
- Check Air Filter: Inspect and replace the air filter regularly to ensure clean air intake. A clogged filter can reduce efficiency.
- Clean Condensate Drain: Empty the condensate drain regularly to prevent water buildup and ensure proper moisture removal.
- Inspect Hoses and Connections: Check all hoses and connections for leaks or wear to prevent air loss.
- Check Operating Pressure: Ensure the operating pressure does not exceed the specified limits (232 PSI) to maintain the system’s safety and efficiency.
- Lubrication: Ensure that moving parts are properly lubricated as per manufacturer instructions to prevent wear.
- Test Functionality: Periodically test the air dryer to ensure it is functioning correctly, cycling on and off as needed.
