Stealth Emerald series makes it possible to have Stealth quality for stand-alone spaces such as gyms, garages, pool houses, sun porches or bonus rooms with up-front cost savings.

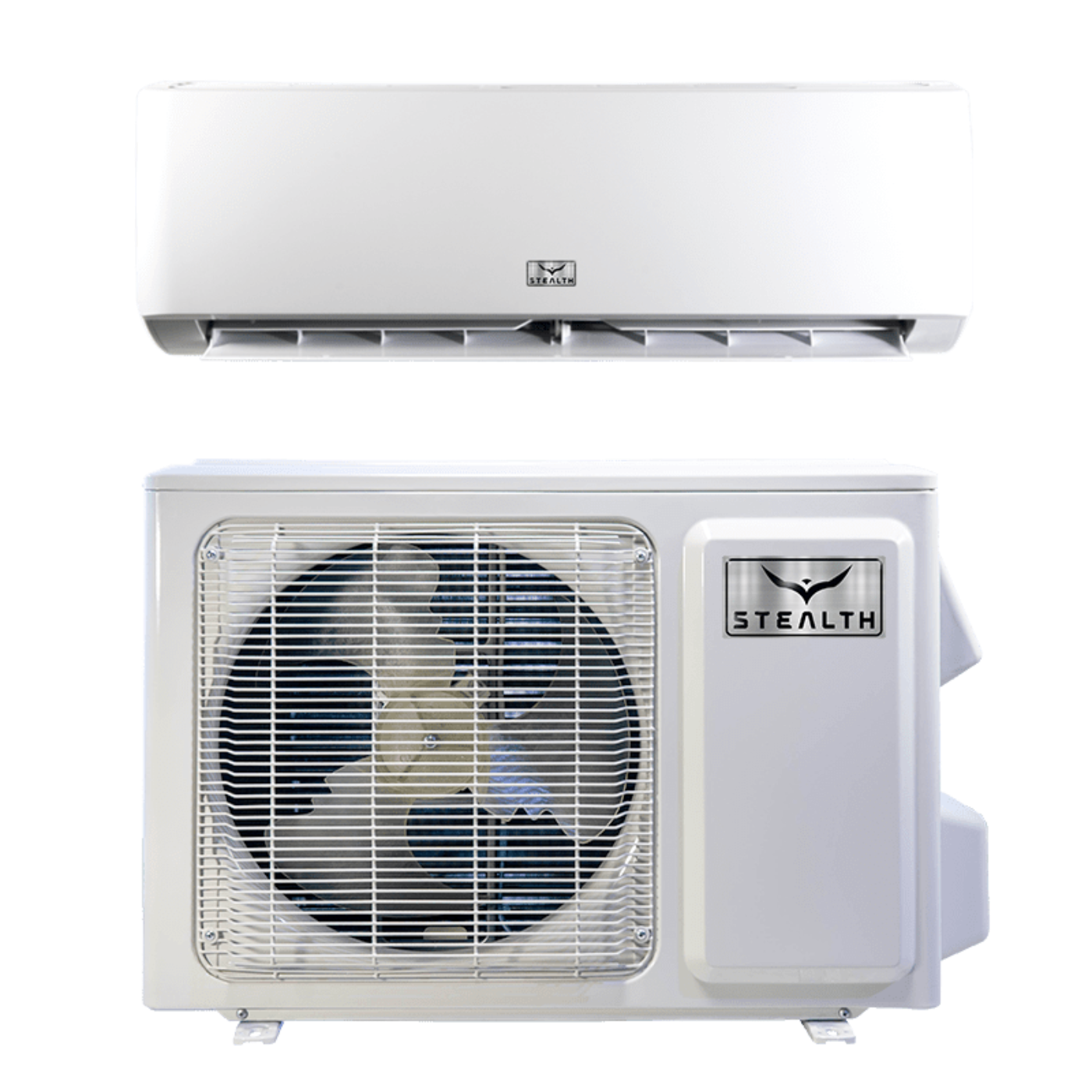

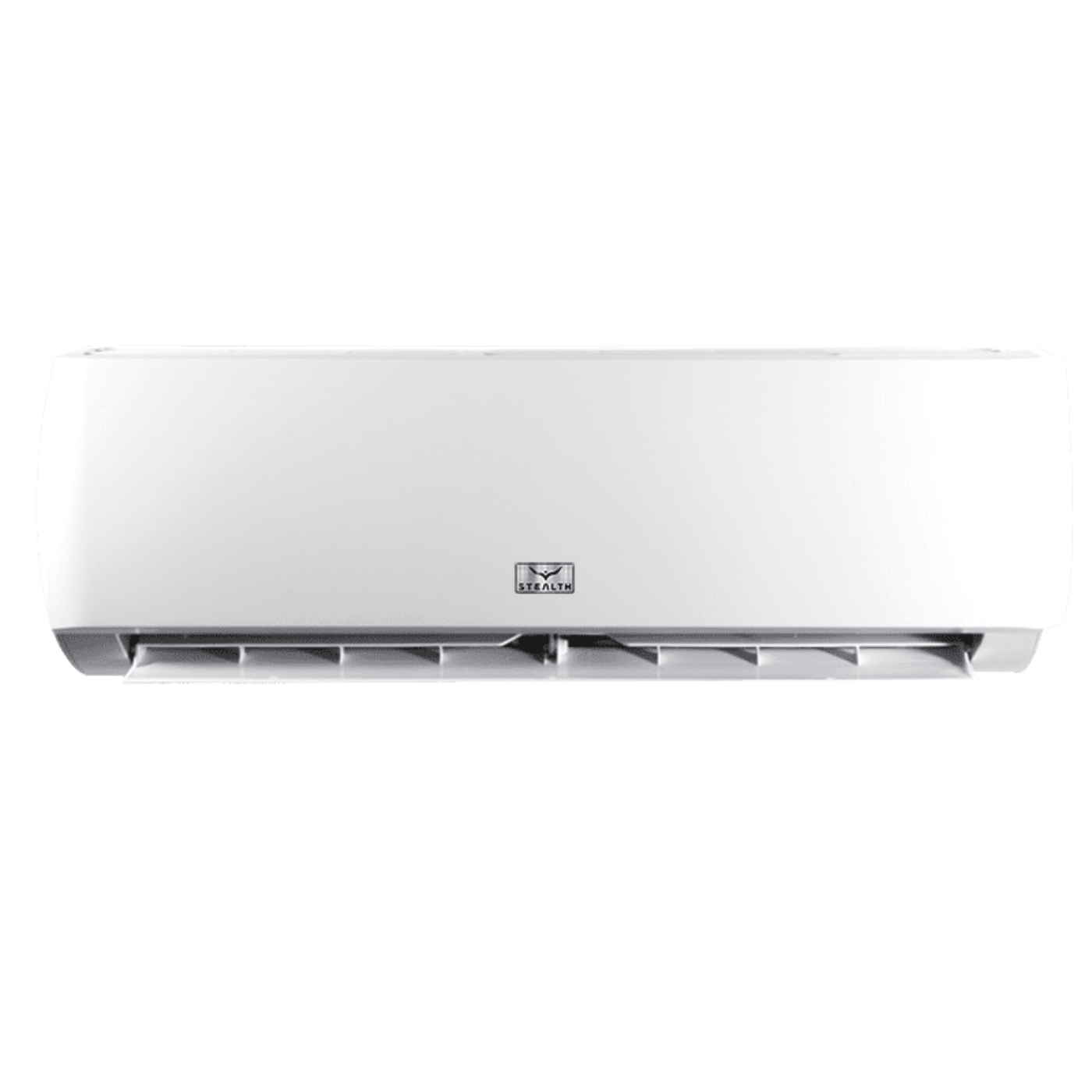

Stealth Emerald Series single zone mini-split systems features an air handler that easily mounts onto the wall. With attention to detail in design and state-of-the-art manufacturing, Stealth Emerald Series wall mounted mini split systems will complement any décor.
Rugged construction, combined with an acrylic resin fin coating equals a long, trouble-free service life. Precision engineering is behind every Stealth Emerald Series model, resulting in continuous heating with outside temperatures anywhere from from to 75°F to -22°F.

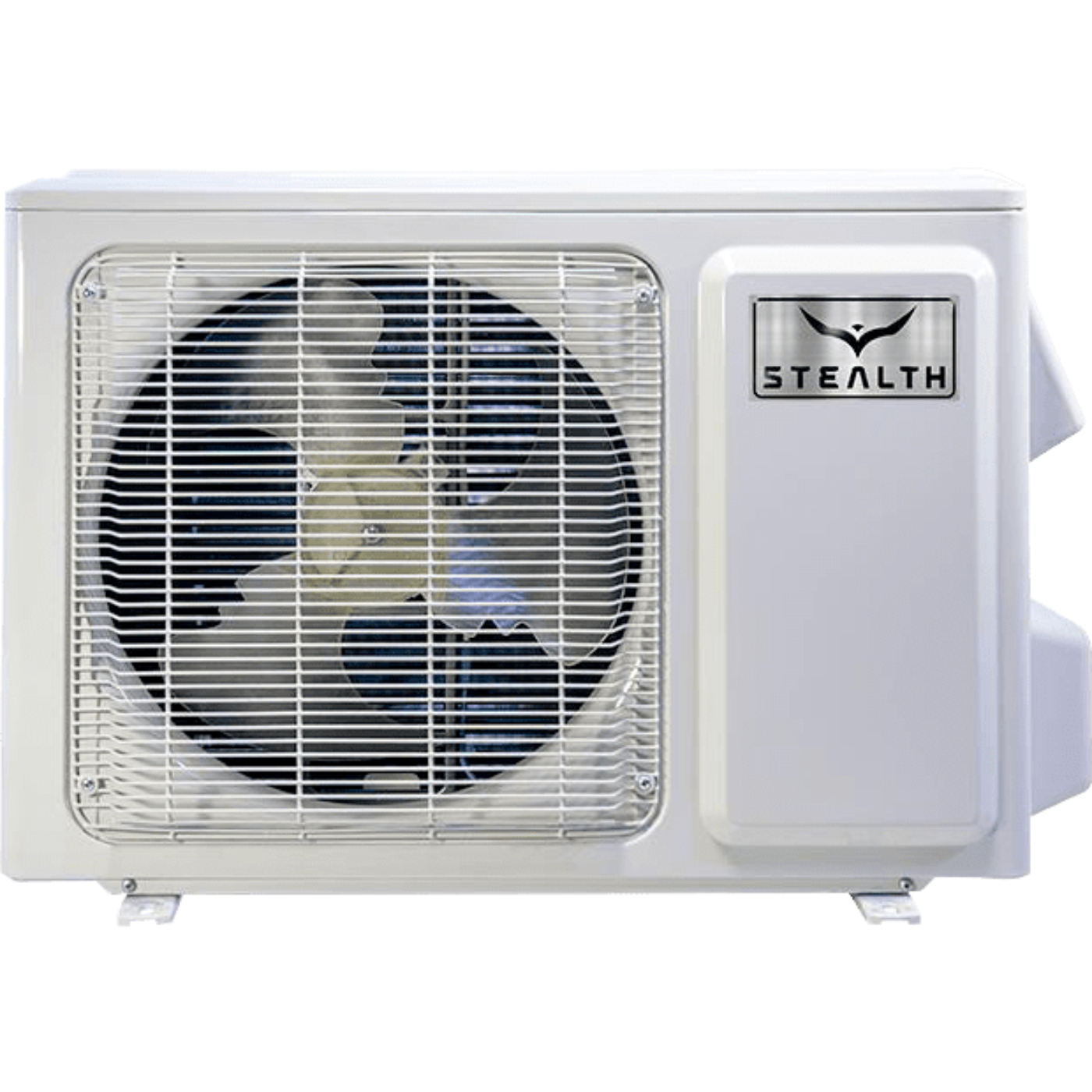

Stealth Emerald Series single zone mini-split systems provide precise temperature control, near silent operation and high efficiency at a reasonable price. The heat pump condenser has a variable inverter compressor for even, predictable cooling and heating without temperature swings, or noisy on-and-off cycling.
EnergyStar rated.
MODEL | SC-12ZGLD-HP230 / SC-12WGLD-HP230 |
---|---|
CERTIFICATIONS | ETL, AHRI |
COOLING CAPACITY | 12,000 BTU |
HEATING CAPACITY | 12,000 BTU |
SEER | 24 |
EER | 12.5 |
COP | 13 |
DEHUMIDIFYING VOLUME | 2.96 Pints/Hours |
HSP | 11 |
SET TEMMPERATURE RANGE | 61~86 |
AMBIENT TEMPERATURE OPERATING RANGE COOLING | -20°F - 122°F |
AMBIENT TEMPERATURE OPERATING RANGE HEATING | -22°F - 86°F |
GAS PIPE SIZE (OD) | 1/2-in |
LIQUID PIPE SIZE (OD) | 1/4-in |
CONNECTION METHOD | Flared |
REFRIGERANT TYPE | R410A |
REFRIGERANT CHARGE | 42.3 oz |
POWER SUPPLY | Rated Voltage: 208/230 V Rated Frequency: 60 Hz Phases: 1 |
INDOOR UNIT FAN MOTOR | Type: Cross-Flow Output Power: 20 W FLA: 0.22 A |
OUTDOOR UNIT COMPRESSOR | Type: DC Inverter Driven Rotary RLA: 6.6 A |
INDOOR UNIT AIRFLOW | Cooling Wet (Lo/Hi): 171/377 CFM Heating Dry (Lo/Hi): 171/377 CFM |
INDOOR UNIT SOUND LEVEL | Cooling (Min/Max): 27/43 db(A) Heating (Min/Max): 28/44 db(A) |
OUTDOOR UNIT SOUND LEVEL | Cooling (Max): 53 db(A) Heating (Max): 53 db(A) |
OUTDOOR UNIT DIMENSIONS | 31 3/16 x 21 5/6 x 13 5/6 inches |
OUTDOOR UNIT WEIGHT | 70.6 lbs |
INDOOR UNIT DIMENSIONS | 33 7/16 x 11 3/8 x 10 2/3 inch |
INDOOR UNIT WEIGHT | 22.1 lb |
Q: What is the Stealth Emerald 12,000 BTU Single Zone Mini Split System?
A: A 22 SEER single-zone mini split system with 12,000 BTU capacity, designed for efficient heating and cooling with a stylish wall-mounted indoor unit.
Q: What are the key features?
A:
Q: What are the benefits of this system?
A: Provides energy savings, year-round climate control, and quiet performance, perfect for enhancing comfort in individual rooms.
Q: Is this system suitable for medium-sized spaces?
A: Yes, it’s ideal for bedrooms, living rooms, or home offices.
Q: Who should consider this system?
A: Perfect for those seeking an energy-efficient, single-zone heating and cooling solution with reliable performance and a modern design
