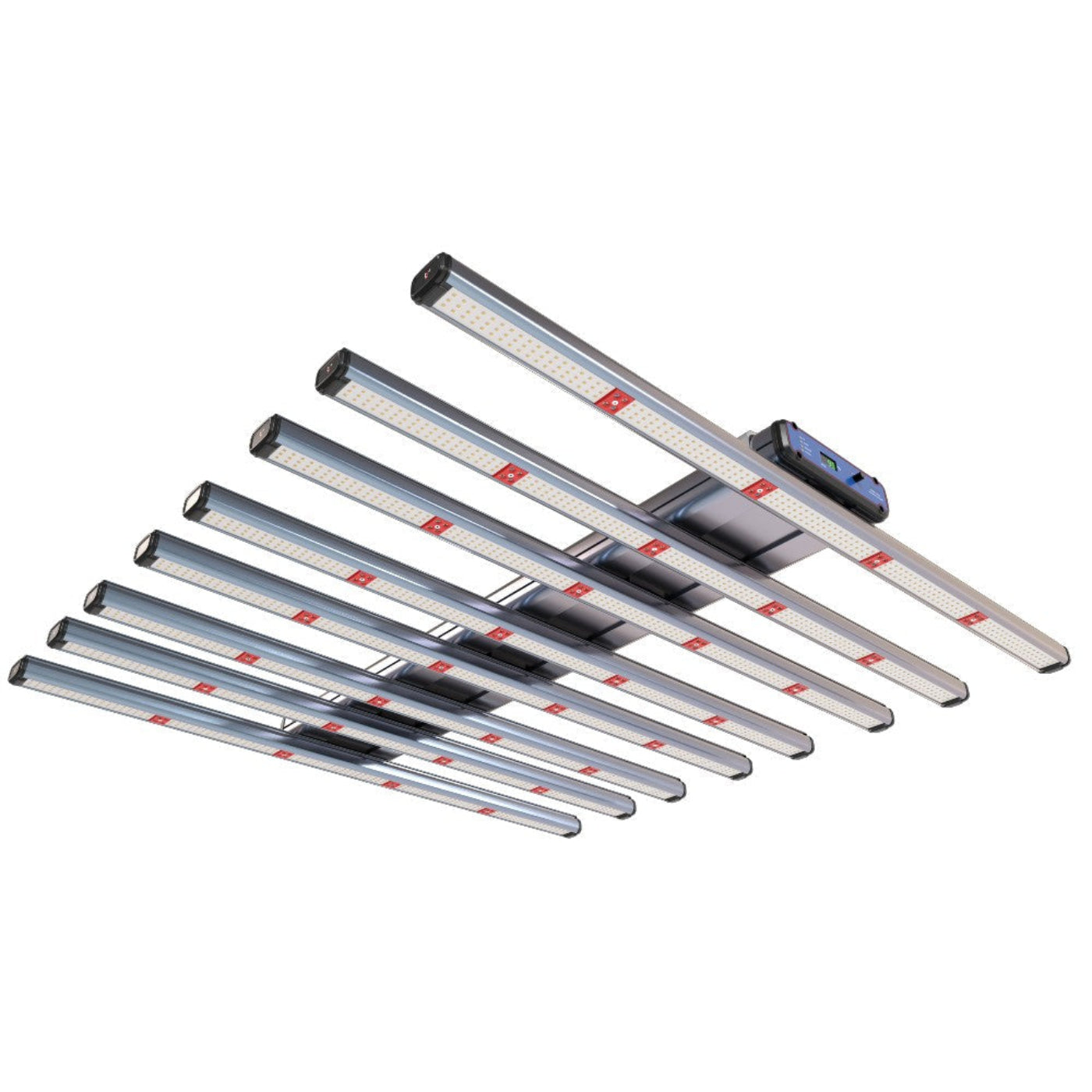

ThinkGrow LED Model-H Plus Grow Light

ThinkGrow LED Model-H Plus Grow Light

Model-H Plus is a true 5’ wide LED grow light designed to be used in indoor grow rooms for high PPFD cultivation practices in vertical farming.

The fixture has a total of 3368 pieces of highly efficient top-bin diodes with a total wattage upgraded to 720 watts, resulting in an 18% PPF increase in performance.

Users can have onboard dimming or adjust the spectrum and light intensity by connecting the fixtures with a controller. Four spectrum channels including UV, White (full spectrum), Deep Red and Far Red are fully controllable to customize your desired spectrum/recipe of light your plants need. (Only available on the TrolMaster HCS-2/3).

The patented plug-and-play light bar design also offers ease of installation and facilitates future maintenance.

Features

• True 5’ Wide Fixture
• 720 Watts Input Power
• Group Control
• Patented plug and play led light bars
• 4 Adustable Spectrum Channels
• SAMSUNG LM301B and SAMSUNG LH351H (660nm) V3

From the same company that manufactures TrolMaster, J&L Hydro is proud to bring you ThinkGrow LED's. Our products are designed by growers for growers. The TrolMaster/ThinkGrow engineers bring a combined 30+ years of design and manufacturing.

Made for every grower; small home hobbyist or large commercial facility.


The ThinkGrow Difference

• Outstanding Efficiency
• Plug and Play
• Full Spectrum Design

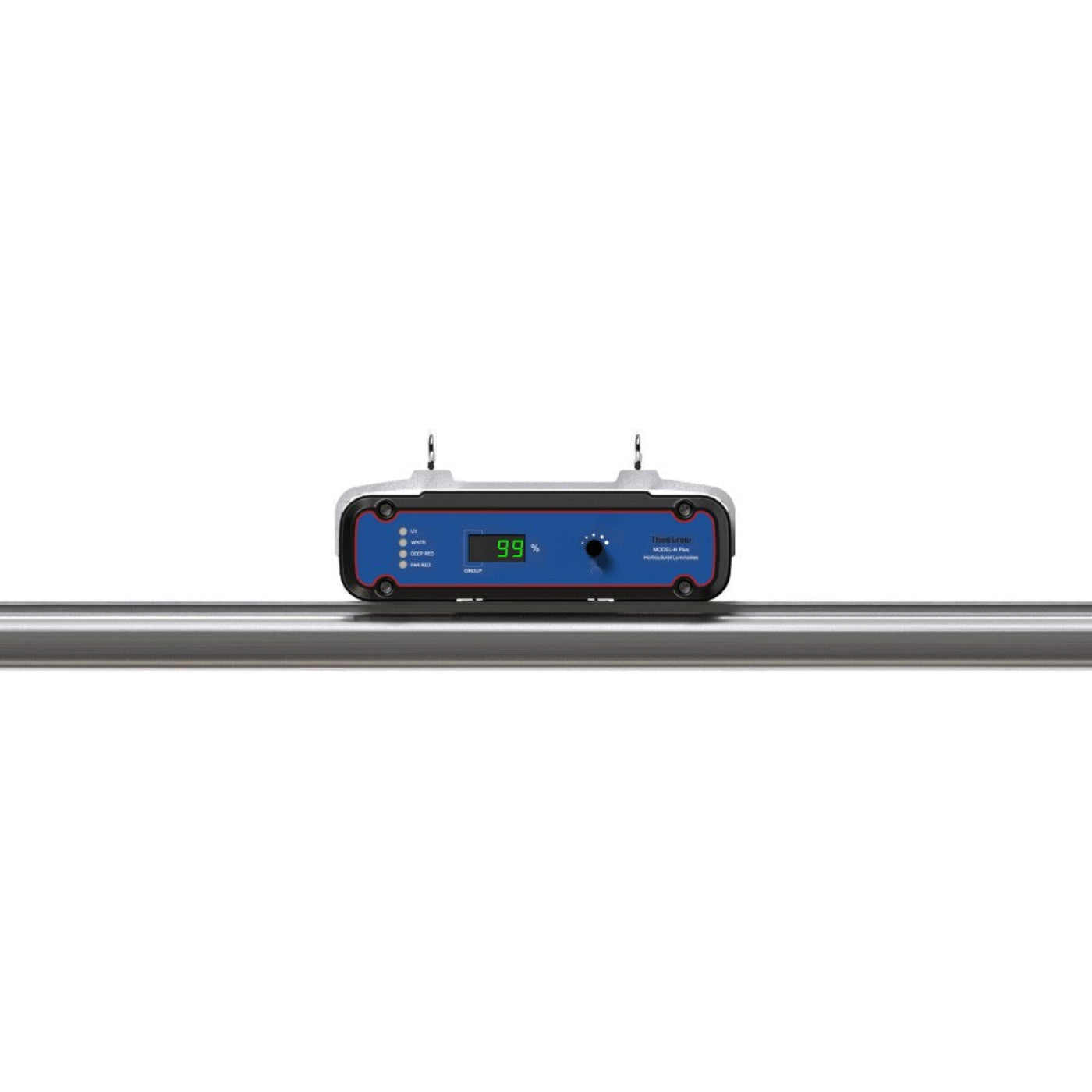

• On-Board Dimming
• Adjustable Spectrum
• External Controllability
• Group Control
• IP56 Waterproof

Adjustable Spectrum

The spectrum tunning feature allows growers to experiment with spectrum recipes for different crops and different stages. It can be achieved by the on-board dimming knob or controllers.

PAR Chart

Specs

Input Power: 720W

Power Factor: >96%

Input Voltage: Autosensing 100-277V

Amp Draw:

• 120V- 6.23A
• 240V- 3.09A
• 277V- 2.71A

PPF: 2016 umol/s

Efficacy: 2.8 umol/J

BTU: 2456.74 BTU/h

Lifetime: L90: >54,000 hours

Far Red Channel: No

Adjustable Spectrum: Yes

Dimmable: Yes

Coverage area: 5'x5' for flowering

Mounting Height: >6' above canopy

External Controllability: 256 fixture/channel

Group Control: Yes

Dimensions: 57'L x 44.6'W x 4.44'H

Weight: 41.8 lbs

Certifications / Listings: DLC, ETL, CE, FCC, IP56

Warranty: 5 years standard warranty

Recommended For: Grow Room, Grow Tent, Indoor Cultivation
