TrolMaster Aqua-X Plus Irrigation Control System (NFS-3）

TrolMaster Aqua-X Plus Irrigation Control System (NFS-3）

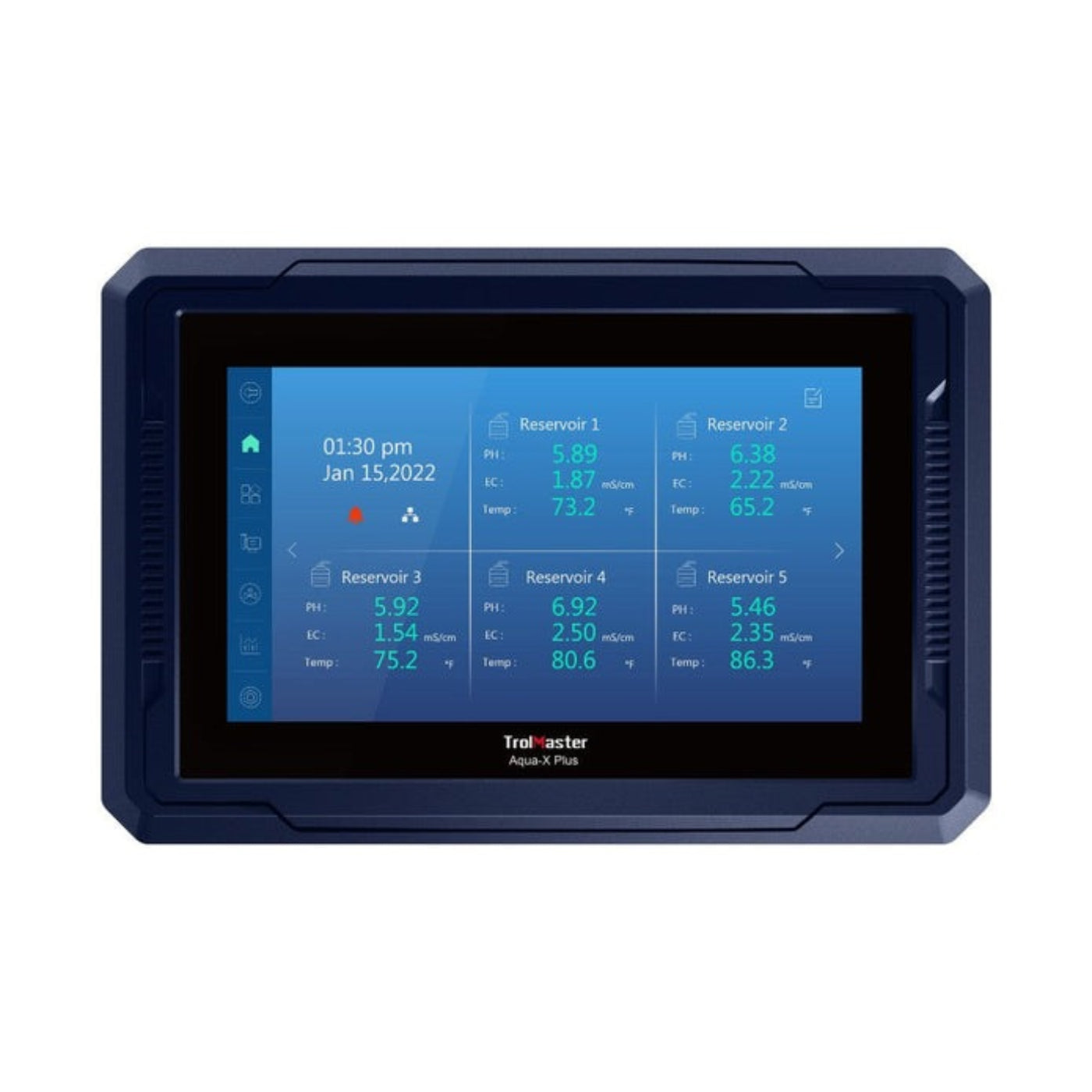

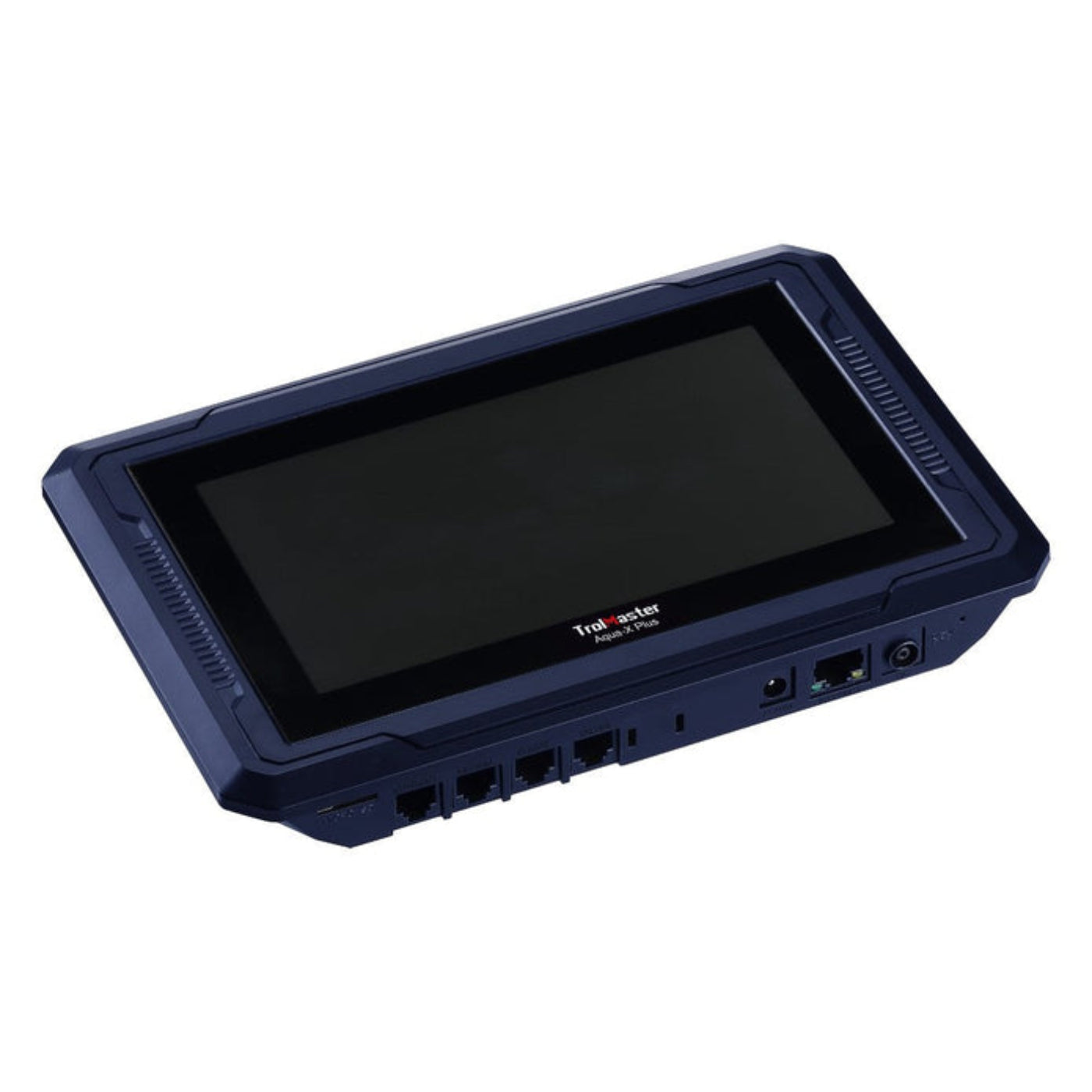

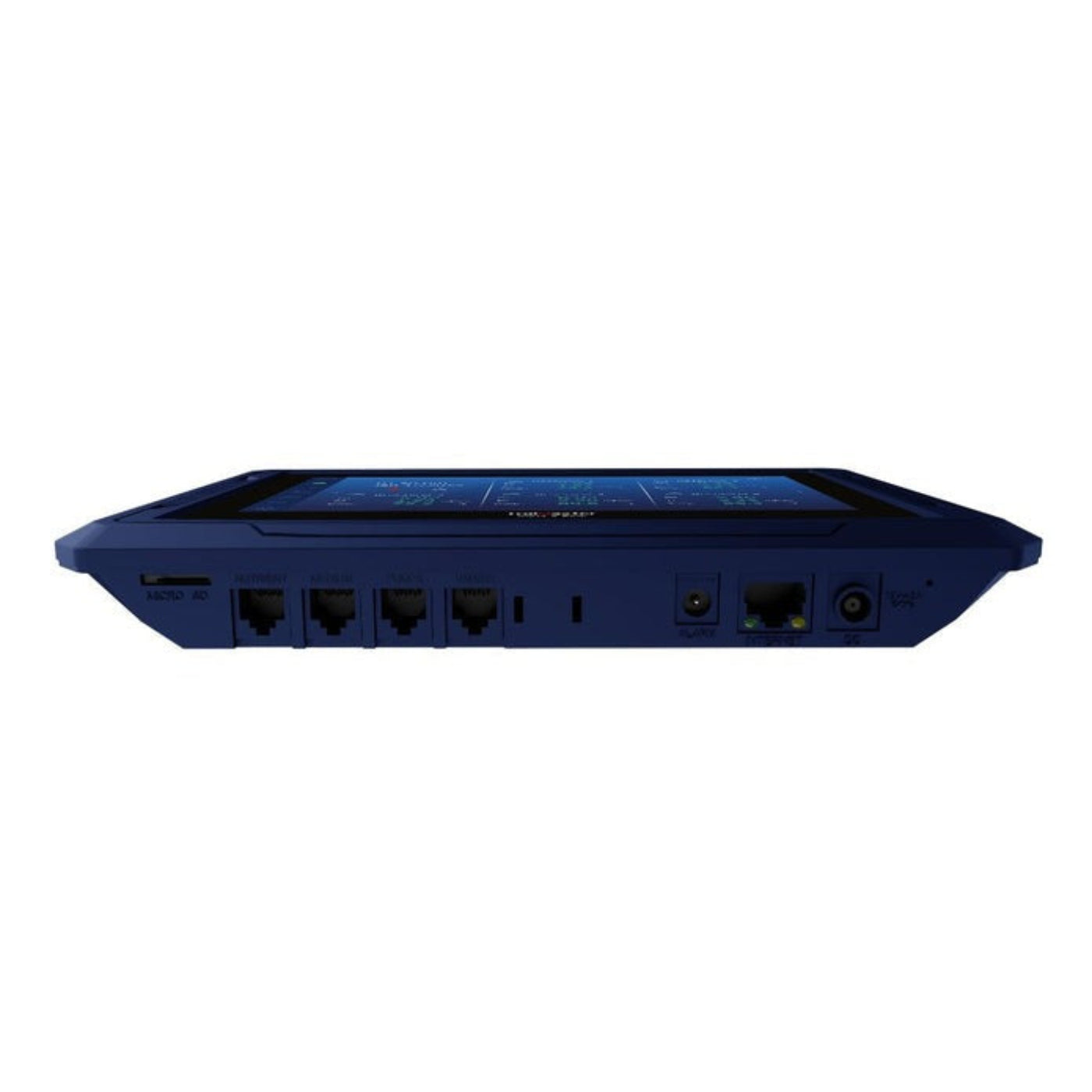

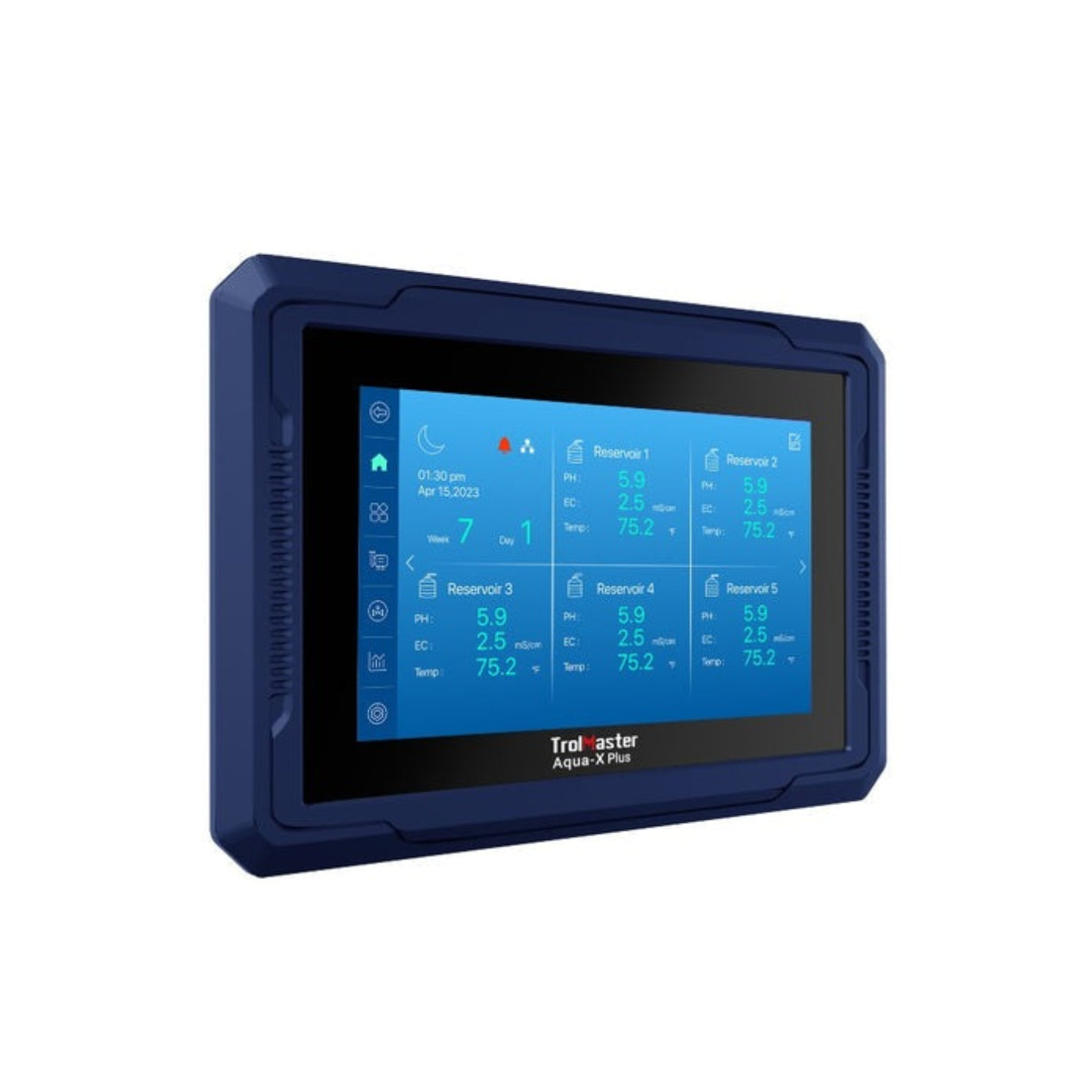

The Aqua-X Plus controller is an upgraded version of the Aqua-X controller. It’s a professional-grade multi-zone irrigation control system. It has an 800x480 7” LCD touch-screen monitor, features multiple advanced pump and solenoid control functions and has greatly expanded device control capacity.

As with all of the main controllers from TrolMaster, the Aqua-X Plus works with TrolMaster’s free app and can be connected to your internet directly using a standard CAT5 network cable. Along with controlling 240 total devices, the NFS-3 can also monitor up to 25 individual sensors including pH, EC, Temp, WC%, Grow Medium Temp and Grow Medium EC. You can view the recorded historical data directly on the NFS-3 or on your smartphone, and also receive warning messages / notifications if the growing environment exceeds your selected alarm setpoints within the NFS-3.

The optional WCS-1 or WCS-2 Water Content Sensor will monitor the water content and EC of the growing medium. The WCS-1/2 will help to visualize the dry-down time and to make adjustments to irrigation timers or irrigation settings. You can even choose to allow the WCS-1/2 Water Content Sensors to actively control irrigation cycles for automated Crop Steering based on the Water Content of your grow medium. Finally, a truly automated crop-steering controller, with the flexibility to satisfy even the most demanding applications.

The NFS-3 also features Multiple Pump Link functions. Multiple Pump Links provides choices for users to connect / link different pumps with different valves to accomplish various irrigation functions. The NFS-3 offers an amazing amount of flexibility to suit all growers.

Features

• 7" Touchscreen Display for intuitive control

• Phone App Control (Free) for remote monitoring and management (TM+)

• Increased Capacity: Up to 240 Pumps & Solenoids

• Expanded Sensor Support: Up to 25 Sensors (pH, EC, Temp, Moisture, etc.)

• New Crop Steering Function: Automated irrigation based on moisture content (WCS-1/WCS-2 sensors)

• Multiple Pump Link Functions for versatile irrigation strategies

• Historical Data Viewing & Alerts for informed decision-making

• Free TrolMaster App for convenient smartphone control

Specifications

Video

Package Include

• 1x NFS-3 Controller

• 1x AMP-3

• 1x 12V Power Adapter

• 1x RJ12 Cable Set

• 1x Mounting Plate
