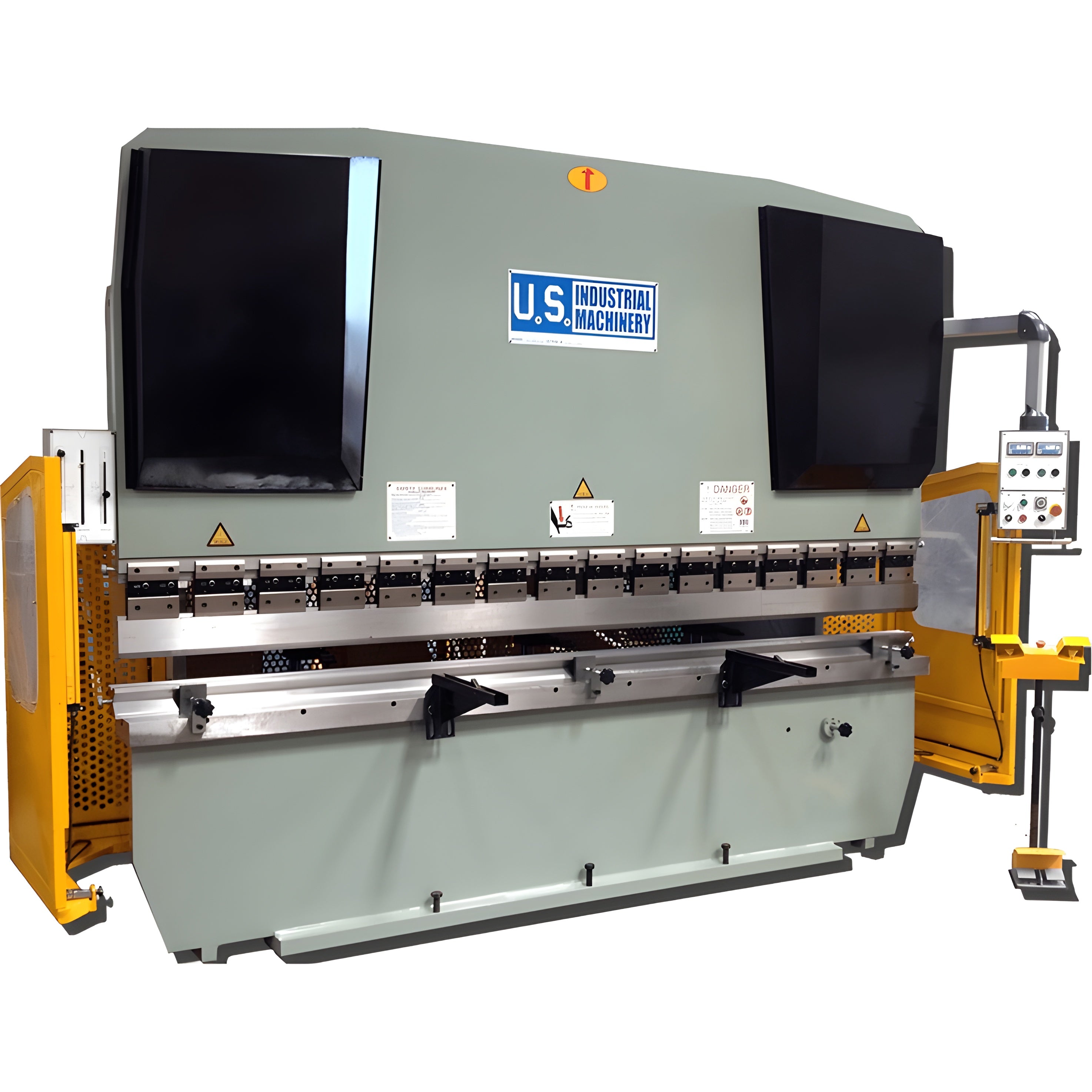

The manual press brakes have all the same safety features of the CNC models, manual press brakes are powerful machines that are easy to get started on and great for more straightforward jobs. They include a front-operated power back-gauge and ram adjust with digital readouts and fine adjustment handwheels for both. Our models range from 22 tons to 440 tons.
Working Pressure | 44 Tons |
---|---|
Pressing Speed | Dependent on Tool Load |
Length of Working Table | 78.7” |
Hydraulic Oil Capacity | 36 Gal. |
Distance Between Housings | 63.7” |
Motor Horsepower | 7.5 HP, 220 or 440 Volt, 3 ph. |
Throat Depth | 7.8” |
Net Weight | 7,700 lbs. |
Stroke Adjustment of Ram | 1.96” |
Length | 101” |
Ram Travel | 3.93” |
Width | 60” |
Open Height | 12.5” |
Height | 80” |
Rapid Ram Travel Speed | 2.4”/sec. |
Rapid Ram Retreat Speed | 2.0”/sec. |
Backgauge Travel | 24” |
