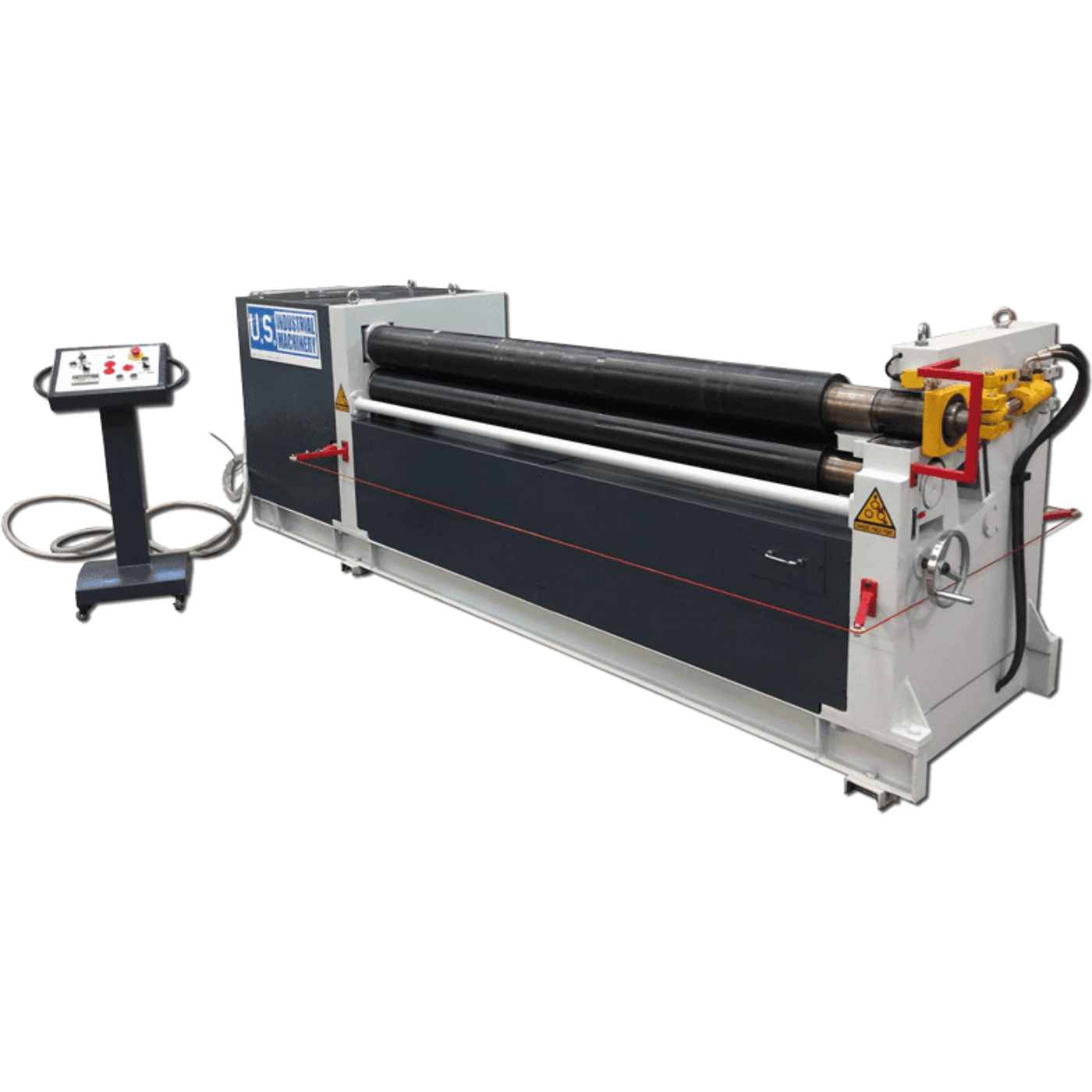

U.S Industrial Machinery Plate Roll, 5’ x 3/8”, Initial Pinch- USR5375
80
Peoples are also watching.
- $26,990.00
$31,040.00- $26,990.00
- Unit price
- per
authorized dealer, shop your favorite brand.
Expert Support,
Dial +1 (888) 575-2099
Limited Supply,
grab it before it's gone.
Lowest prices,
As low as possible.
All Items are brand New,
Never used.
Recently Viewed Products
- $2,985.00
$2,985.00- $2,985.00
- Unit price
- per
- $1,485.00
$1,650.00- $1,485.00
- Unit price
- per
- $7,999.99
$8,499.00- $7,999.99
- Unit price
- per
- From $1,000.00
- From $1,000.00
- Unit price
- per
- $2,500.00
$2,699.00- $2,500.00
- Unit price
- per
- $1,500.00
$1,699.00- $1,500.00
- Unit price
- per
- $1,569.00
$1,980.00- $1,569.00
- Unit price
- per
- $1,729.99
- $1,729.99
- Unit price
- per
When it comes to high-quality plate roll machines, no one pairs performance with affordability like U.S. Industrial Machinery in Memphis, TN.
Our machines go through rigorous testing and quality assurance checks to ensure our customers receive nothing but the best. Every piece of equipment comes with a one-year warranty, and our team offers continuing support to customers for troubleshooting and specification questions throughout the life of your machine for the original purchaser. You’ll always have a U.S. Industrial Machinery specialist available when you need us. Our standard model plate rolling machines are available in four sizes; 5′ x 3/8″, 6′ x 5/16″, 8′ x ¼”, and 10’ x ¼”. Custom-built machines are also available for needs outside of these sizes. Our plate rolling machines are gear-driven and can be adjusted to pinch varying metal thicknesses up to the machine’s capacity. The LED display on the controller shows the position of the bending roll with memory storage so operators can repeat bends accurately. With the operator control panel’s long extension cord, it’s easy to maneuver the controls to work from either side of the machine. The electrical cabinet uses standard electrical components that are always in stock in our warehouse for fast replacements when needed.
Features
-
Powered roll adjustment
-
Precision pinch roll adjustment
-
Top roll swing-out
-
Emergency trip line
-
Pedestal control
-
Quick roll adjustment
-
Roll position indicators
-
Crowned rolls
-
High torque gearbox
-
Low voltage push-button controls
Specifications
| Capacity | 5‘ x 3/8” Mild Steel @ 65000 PSI |
|---|---|
| Pre-Bend Capacity: | 3/8” Mild Steel @ 65000 PSI |
| Top & Bottom Roll Diameter | 6.57”/6.7” (ends/middle) |
| Bending Roll Diameter | 6.22”/6.34” (ends/middle) |
| Speed | 12. 5 FPM |
| Main Drive Motor | 5.5 HP Reduction Gear Drive |
| Adjustment Motor for bend roll position | 3 HP |
| Machine Length | 127” |
| Machine Width | 54” |
| Machine Height | 44” |
| Net Weight | 4,150 lbs. |
| Voltage | 220/440 Volts, 3 Phase |
What Our Experts Think
The U.S. Industrial Machinery Plate Roll (USR5375) is a robust, precision-engineered tool designed for efficient metal rolling. Here’s why it’s highly recommended:
- Optimized Capacity: Rolls plates up to 5' in length and 3/8” thickness, offering excellent versatility for medium-scale projects.
- Initial Pinch Design: Delivers precise and controlled rolling, ensuring consistent results throughout the process.
- Heavy-Duty Construction: Built for reliability, with durable components that perform well under heavy industrial use.
- Efficient Operation: Designed to maximize productivity, reducing material waste and downtime.
- Versatile Applications: Ideal for bending and shaping metal plates across a variety of industries, including manufacturing and construction.
- Easy Operation: Simple controls and quick adjustments make the machine user-friendly for operators of all skill levels.
Q&A
Q: What is the U.S. Industrial Machinery Plate Roll USR5375?
A: The USR5375 is a 5' x 3/8" initial pinch plate roll, designed for precision metal rolling with a focus on thicker materials.
Q: Which industries use the USR5375 Plate Roll?
A: It is ideal for metal fabrication, heavy manufacturing, and construction industries that require bending and rolling thicker metal plates.
Q: What types of materials can the USR5375 handle?
A: This plate roll is capable of rolling various metals, including steel, aluminum, and other alloys up to 3/8" thick.
Q: Why is the initial pinch design beneficial?
A: The initial pinch design offers greater control during the rolling process, ensuring consistent, high-quality bends across a range of materials.
Q: Is the USR5375 suitable for high-capacity operations?
A: Yes, with its robust build and 5-foot length, the USR5375 is perfect for medium to large-scale industrial applications.
Q: How does the USR5375 improve productivity?
A: The machine’s efficient design allows for faster setup and precise, consistent results, enhancing throughput for demanding metal rolling tasks.
Maintenance Tips
- Daily Cleaning: After each use, remove metal debris, dust, and chips from the machine to prevent buildup and ensure smooth operation.
- Lubrication: Lubricate bearings, gears, and all moving components regularly with recommended lubricants to minimize friction and wear.
- Roller Inspection: Inspect rollers for any signs of damage, wear, or misalignment. Clean them thoroughly to avoid marks or imperfections on the rolled material.
- Hydraulic System Check (if applicable): Check hydraulic fluid levels and ensure hoses and components are free from leaks or damage.
- Alignment and Calibration: Regularly verify roller alignment and adjust as necessary to maintain accurate and consistent rolling.
- Drive System Maintenance: Inspect chains, belts, and gears for proper tension and wear, replacing any damaged or worn components.
- Check Fasteners: Ensure all bolts, nuts, and fasteners are secure and tightened to prevent instability during operation.
- Protective Covering: When not in use, cover the machine to protect it from moisture, dust, and other contaminants.
