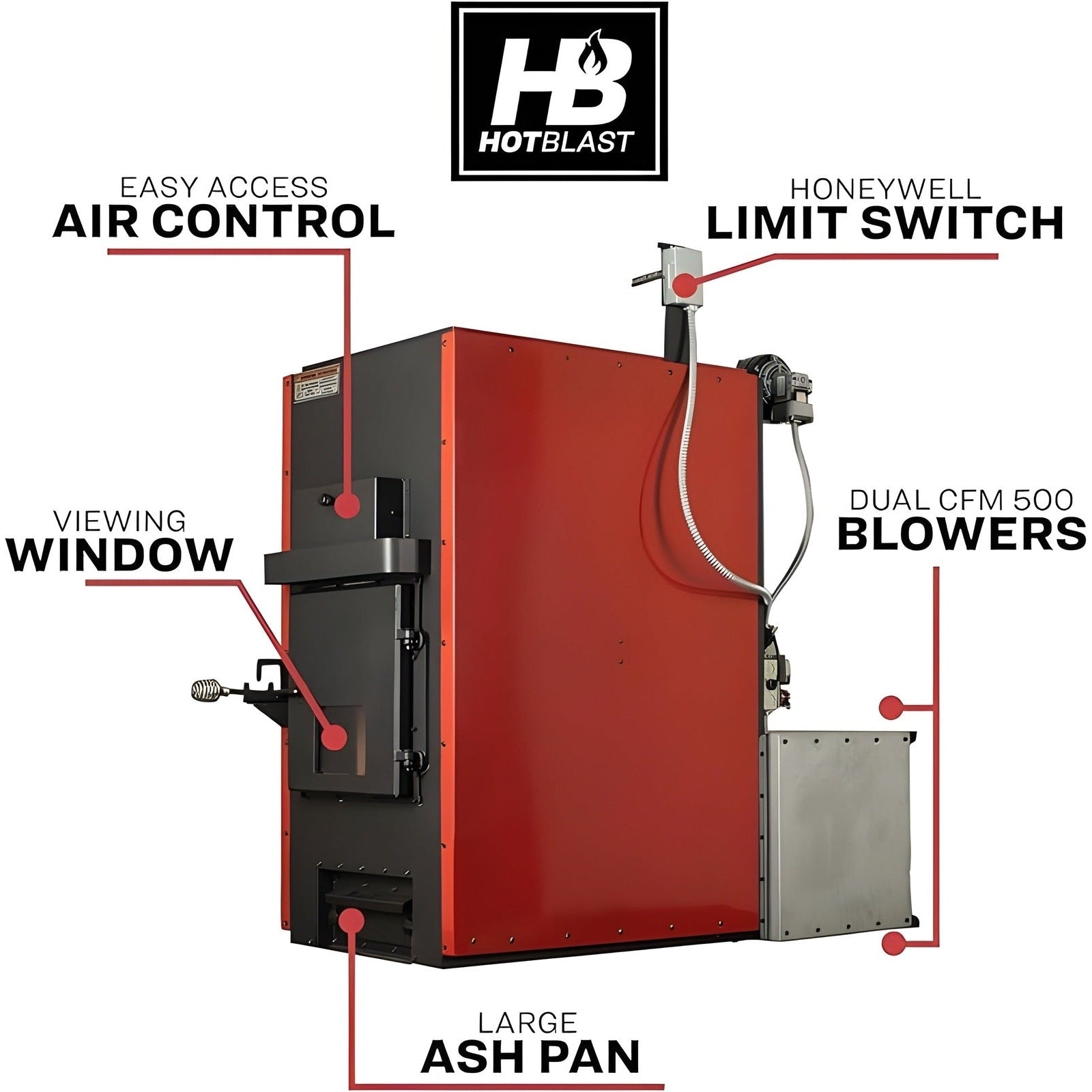

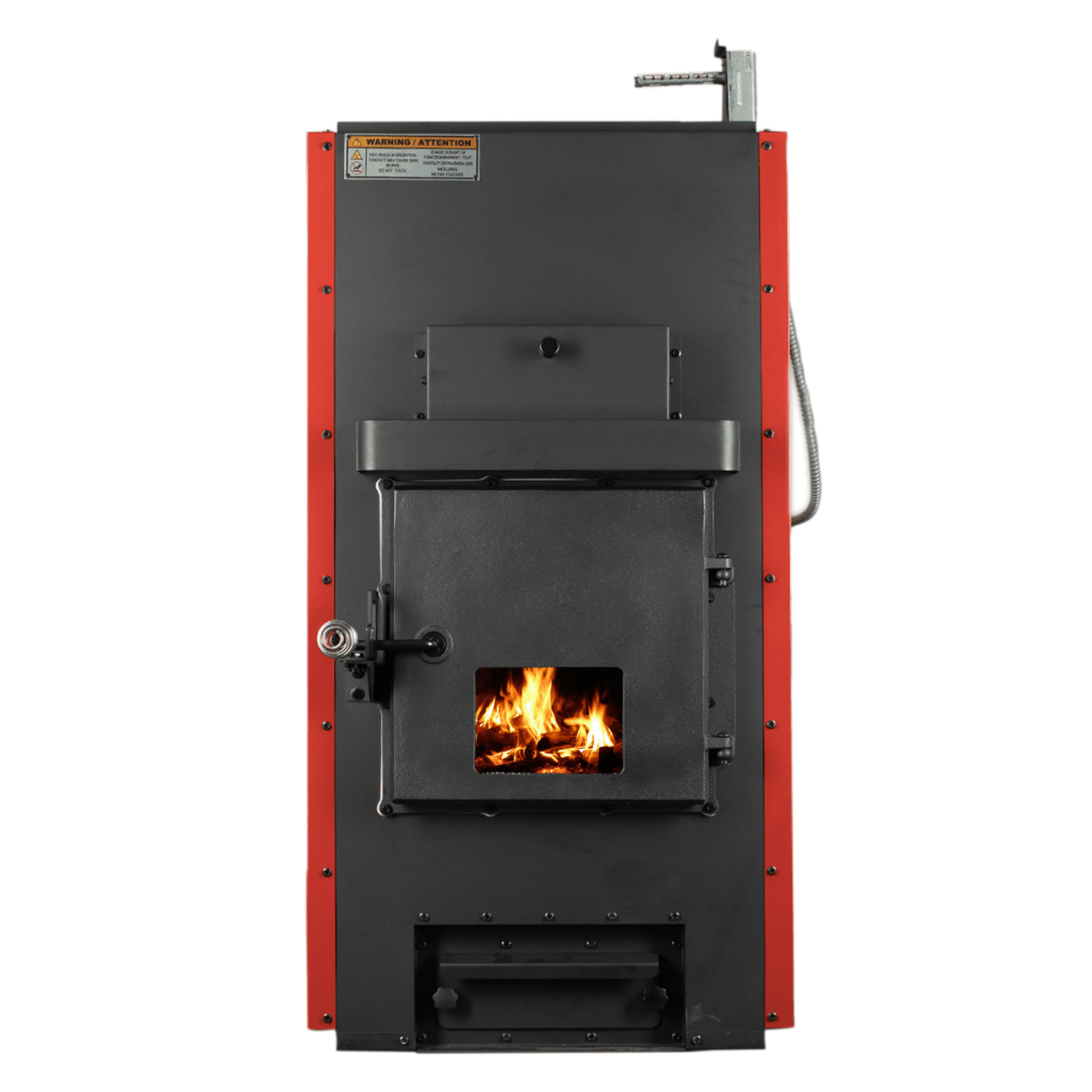

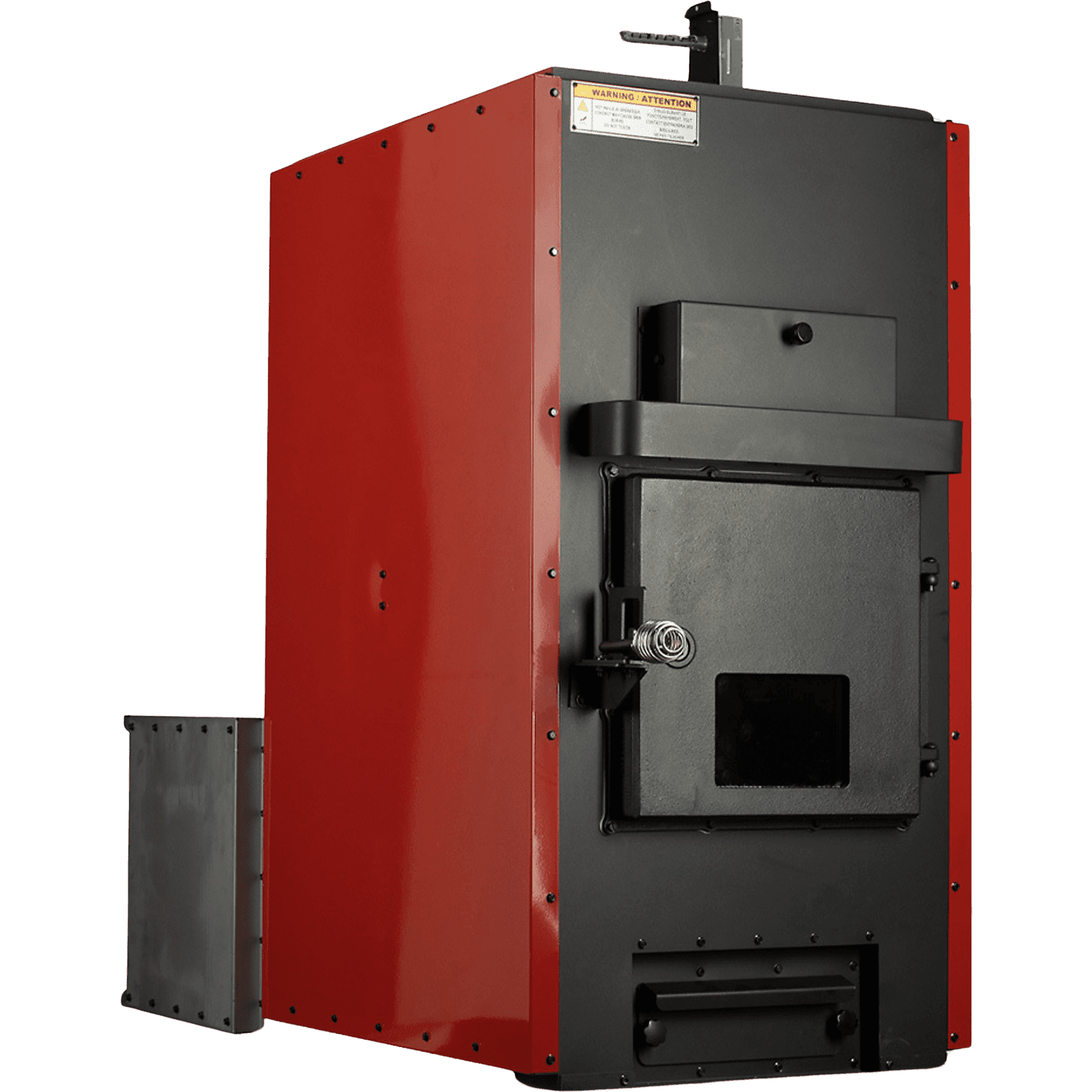

The Hot Blast HB1520 by US Stove is a wood burning furnace designed to use in conjunction with your existing HVAC ductwork. With twin 500 CFM blowers and up to 180,000 BTUs, it is designed to heat a home up to 3,500 Sq. Ft. Its heavy duty cast-iron door with a glass viewing front gives out the ambience of a flame without compromising efficiency. The open plenum allows for easy installation and with a built in ash-pan and firebrick line combustion chamber, the HB1520 is a great option for heating larger spaces in the furnace category. The Hot Blast HB1520 EPA certified furnace exceeds 75% efficiency and qualifies for the 30% IRS 25C Residential Energy Tax Credit.
Features
- Heavy Duty cast-iron door with viewing window

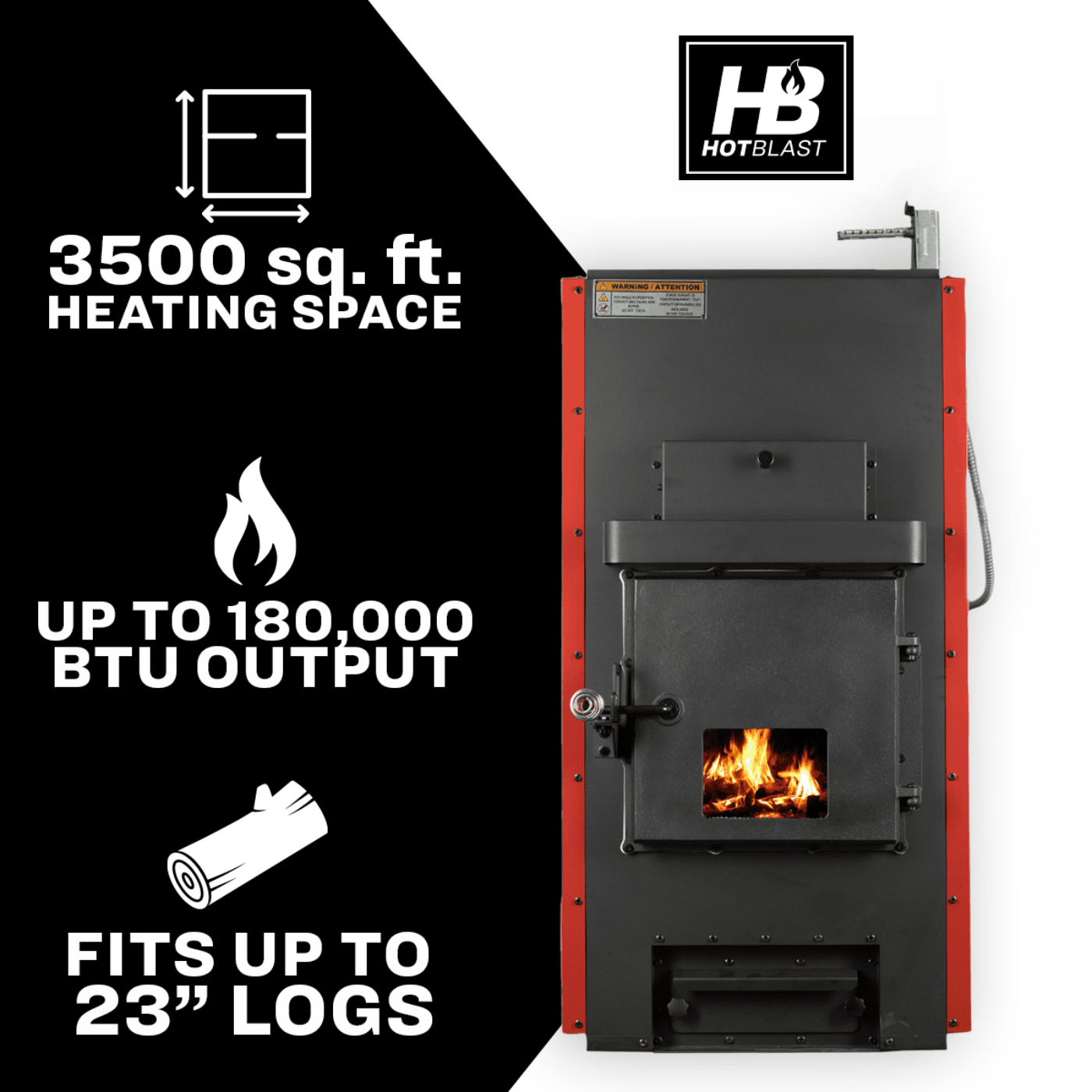

- Heats up to 3,500 Sq Ft of living space with 180,000 BTUs
- EPA Certified & 75% Efficiency Rating

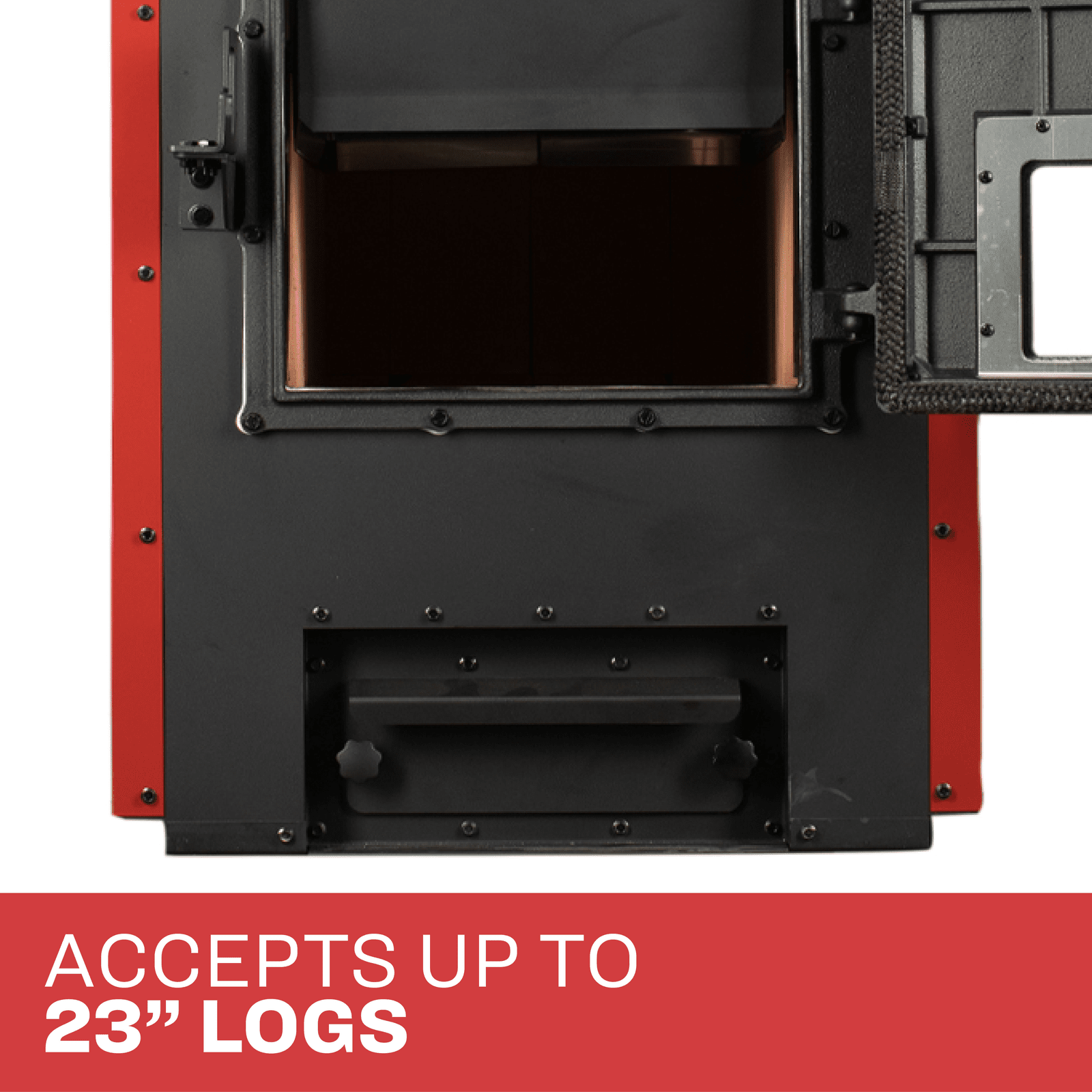

- Accepts logs up to 23" and easy to load
- Qualifies for IRS 30% 25C Residential Energy Tax Credit
- Firebrick lined to boost efficiency and heating capacity

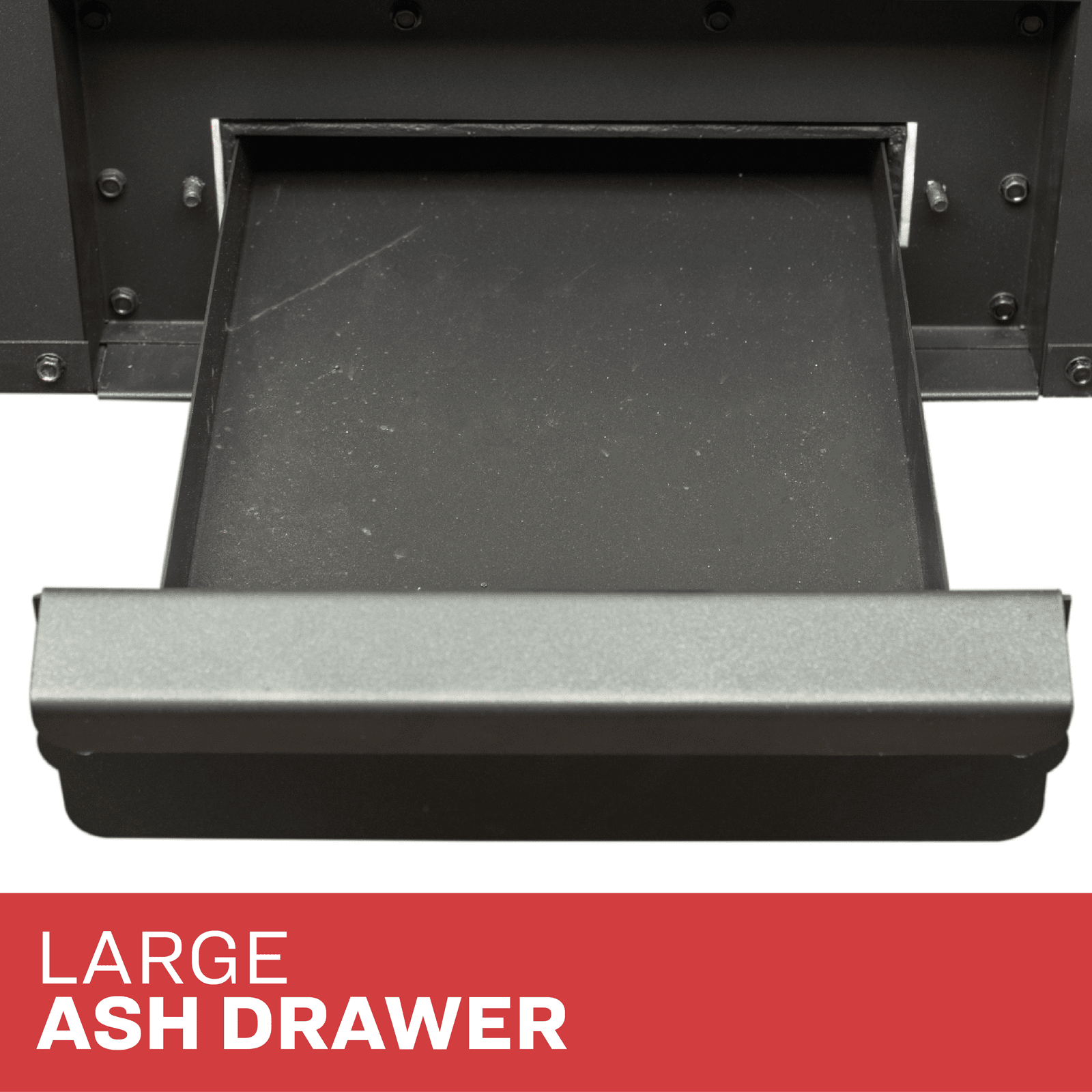

- Built in ash pan for easy clean up
- Recommended installation by NFI Certified Installer (USA) or WETT Certified Installer (Canada)

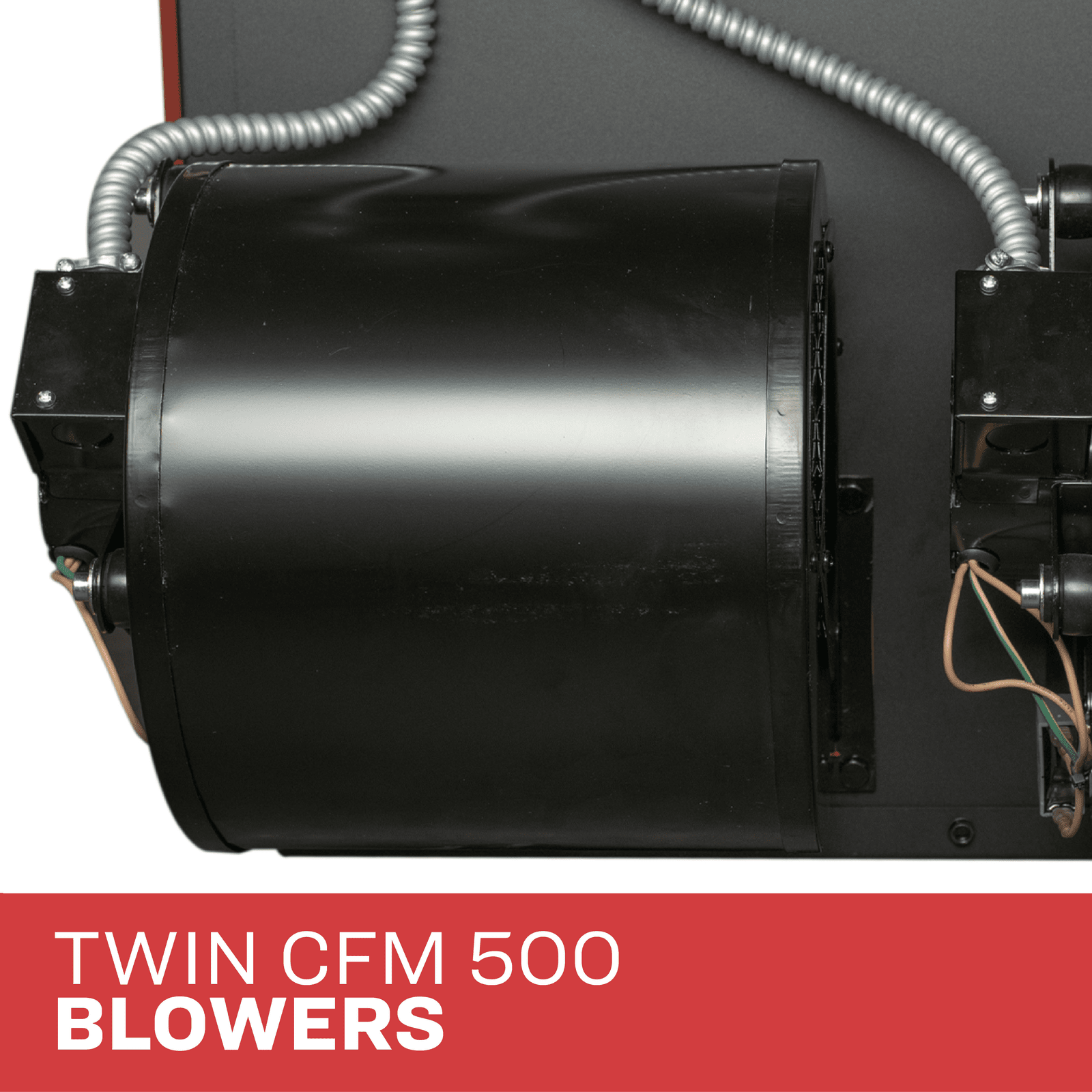

- Dual blowers provide maximum heat output
Specifications
| Combustible | Wood |
| Flue Piper Diameter | 6" |
| Flue Pipe Type | Black or Blued Steel 2100°F Class "A" |
| Minimum Chimney Height | 12 ft. |
| Maximum Log Length | 23" |
| Electrical | 120V, 60 Hz, 6.0 Amps |
| Cooktop | No |
| Vent Location | Rear |
| Removable Water Reservoir | No |
| Temperature Gauge | No |
| Venting Required | Yes |
| Heating Area (ft²) | 3500 |
| Maximum BTU | 180,000 |
| Stove Type | Freestanding |
| Vented Or Vent-Free | Vented |
| Firebox Width (in) | 20 |
| Brick-Lined Firebox | Yes |
| Vent Diameter (in) | 6 |
| Pedestal Base Included | No |
| Firebox Height (in) | 19.5 |
| Air Wash System | No |
| Outside Air Kit | No |
| Heater Type | Outlet |
| Ash Drawer | Yes |
| Blower | Yes |
| Catalytic/Non Catalytic | Non Catalytic |
| Auto Ignition | No |
| Maximum BTU | 180,000 |
| CSA Certified | Yes |
| ETL Listed | Yes |
| EPA Approved | Yes |
| UL Listed | No |
| Assembled Depth (in) | 54.75 |
| Assembled Width (in) | 23.375 |
| Assembled Height (in) | 45 |
| Package Depth | 36.5" |
| Package Width | 27.5" |
| Package Height | 50" |
| Package Weight | 585 lbs. |
| Product Manufacturer Warranty | 5 Year Firebox and Grates Limited Warranty, 1 Year Electrical Limited Warranty |
Manual
User's Manual
What Our Experts Think
The US Stove HB1520 Wood Furnace is an exceptional choice for those needing powerful, efficient heating. Here's why it's a standout:
- Massive Heating Capacity: 180,000 BTU heats up to 3,500 sq. ft., making it ideal for large homes or commercial spaces.
- Wood-Burning Efficiency: Uses wood for a renewable and cost-effective heat source, perfect for those with access to firewood.
- Heavy-Duty Construction: Built with durable materials to provide long-lasting performance and withstand high heat.
- Advanced Airflow System: Designed with efficient air circulation to distribute heat evenly and reduce cold spots.
- Low Maintenance: Simple design with an accessible firebox, making refueling and cleaning hassle-free.
- Eco-Friendly: Produces fewer emissions compared to other heating methods, contributing to a cleaner environment.
Q&A
Q: What is the heating capacity of the US Stove HB1520 Wood Furnace?
A: The HB1520 wood furnace can heat up to 3,500 square feet, making it ideal for large homes or commercial spaces.
Q: What is the BTU rating of the HB1520 furnace?
A: The furnace produces 180,000 BTUs, offering powerful and efficient heat output for expansive areas.
Q: Is the US Stove HB1520 suitable for residential or commercial use?
A: Yes, the HB1520 is designed for both residential and commercial use, efficiently heating large spaces.
Q: What are the advantages of using a wood furnace like the HB1520?
A: The HB1520 offers cost-effective, renewable heating with long-lasting durability and high heat efficiency, making it a great choice for large areas.
Q: Is the US Stove HB1520 new or refurbished?
A: The US Stove HB1520 is a brand new, high-performance wood furnace, designed for reliable and efficient heating.
Maintenance Tips
- Clean Ashes Regularly: Remove ashes after each use to maintain airflow and combustion efficiency.
- Inspect the Firebox: Check for cracks or damage in the firebox and replace any damaged components.
- Clean the Heat Exchanger: Periodically remove any soot or debris to ensure efficient heat transfer.
- Check Chimney & Flue: Clean and inspect the chimney for creosote buildup to prevent fire hazards and ensure proper exhaust.
- Maintain Door Seals: Regularly check and replace door gaskets to prevent heat loss and ensure proper sealing.
- Lubricate Moving Parts: Apply high-temperature lubricant to hinges, dampers, and any adjustable controls.
- Check for Ventilation Blockages: Ensure air vents and intake ducts are clear for optimal combustion and airflow.
