Victron Energy BMV-700H High Voltage Battery Monitor (60-385VDC) - BAM010700100 - CW99782
BMV-700H High Voltage Battery Monitor (60-385VDC)
The BMV-700H is a high-precision battery monitor that has been specially designed for systems with a high battery voltage ranging from 60 to 385 volts.
These battery monitors calculate the state of charge of a battery and keep track of the ampere-hours consumed from the battery by integrating the current flowing in or out of the battery.

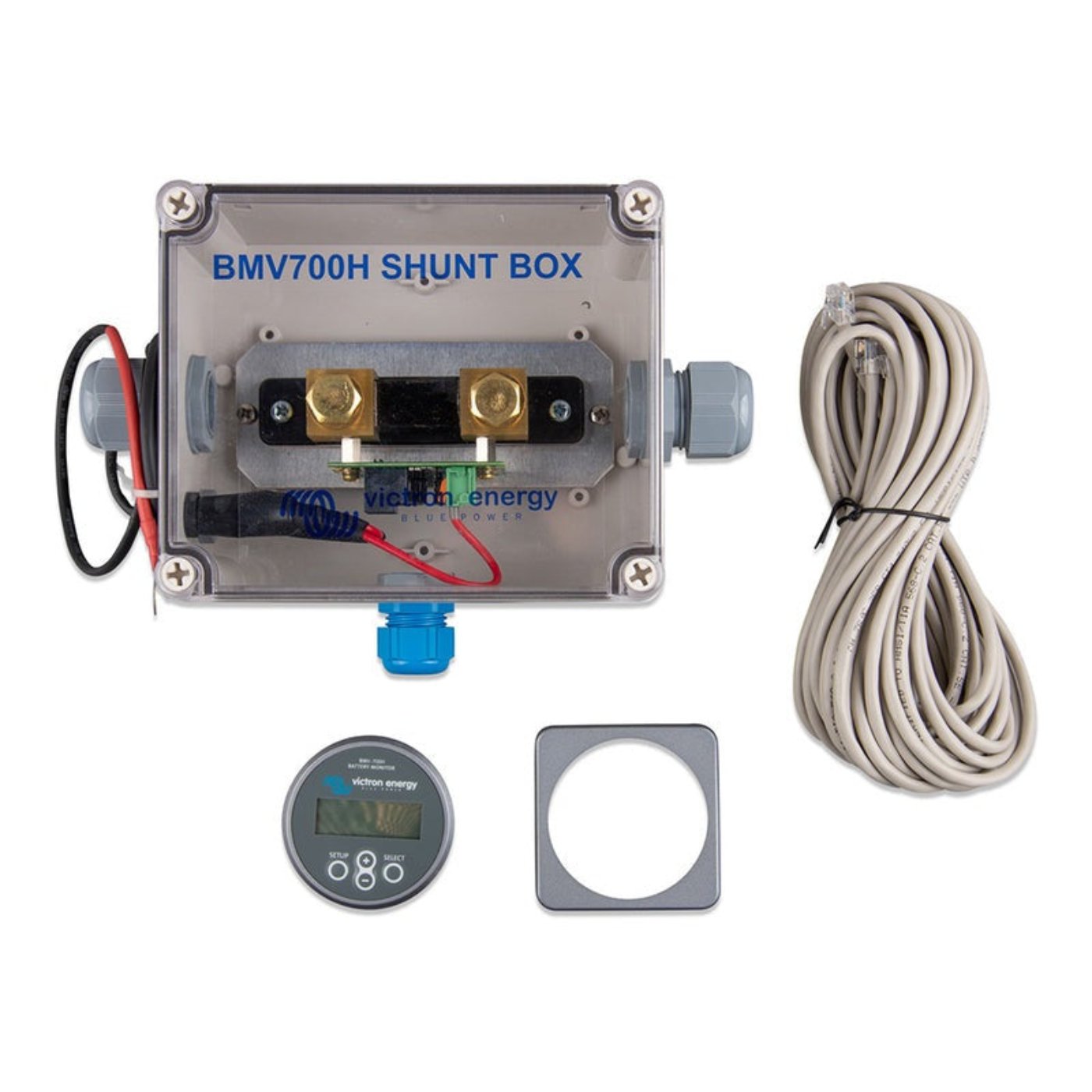

They both come with a round head unit, a square bezel overlay, a screw ring for mounting, a 10m UTP RJ12 cable, a fused power supply cable, and a 500 A/50 mV shunt. Because of the high voltage application, the shunt is housed in a special enclosure.
Battery ‘fuel gauge’, time-to-go indicator, and much more
The remaining battery capacity depends on the ampere-hours consumed, discharge current, temperature, and the age of the battery. Complex software algorithms are needed to take all these variables into account.
Next to the basic display options, such as voltage, current, and ampere-hours consumed, the BMV-700 series also displays the state of charge, time to go, and power consumption in Watts.
Easy to Install
All electrical connections are to the quick-connect PCB on the current shunt. The shunt connects to the monitor with a standard RJ12 telephone cable. Included: RJ12 cable (10m) and battery cable with fuse (2m); No other components are needed.
Also included is a separate front bezel for a square or round display appearance and a securing ring for the rear mounting and screws for the front mounting.
BMV-700H: 60 to 385 VDC Voltage Range
No additional parts are needed. Note: This is suitable for systems with grounded negative only (the battery monitor is not isolated from the shunt).
Features
-
Battery voltage, current, power, ampere-hours consumed, and state of charge
-
Remaining time at the current rate of discharge
-
Programmable visual and audible alarm
-
Programmable relay, to turn off noncritical loads or run a generator when needed
-
500 Amp quick connect shunt and connection kit
-
Shunt selection capability up to 10,000 amps
-
VE.Direct communication port
-
Stores a wide range of historical events, which can be used to evaluate usage patterns and battery health
-
Wide input voltage range: 6.5 – 95V
-
High current measurement resolution: 10 mA (0.01A)
-
Low current consumption: 2.9Ah per month (4mA) @12V and 2.2Ah per month (3mA) @ 24V
Specifications
| Supply Voltage Range: | 60 – 385 VDC |
|---|---|
| Current Draw, Back Light Off: | < 4mA |
| Battery Capacity (Ah): | 1 - 9999 Ah |
| Operating Temperature Range: | -40 +50°C (-40 - 120°F) |
| Measures Voltage of Second Battery, or Temperature, or Midpoint: | No |
| VE.Direct Communication Port: | Yes |
| Relay: | 60V / 1A normally open (function can be inverted) |
| Current: | ± 0.01A |
| Voltage: | ± 0.01V |
| Amp Hours: | ± 0.1 Ah |
| State of Charge: | (0 – 100%) ± 0.1% |
| Time to Go: | ± 1 min |
| Temperature: | n. a. |
| Accuracy of Current Measurement: | ± 0.4% |
| Accuracy of Voltage Measurement: | ± 0.3% |
What Our Experts Think
- Wide Voltage Range: Capable of monitoring voltages from 60V to 385VDC, making it suitable for a variety of high-voltage battery setups, such as those found in large off-grid solar, electric vehicle (EV), and industrial applications.
- Accurate Monitoring: Provides real-time monitoring of critical battery parameters such as voltage, current, state of charge (SOC), and battery health, ensuring you can optimize your system’s performance.
- Advanced Features: Includes features like programmable alarms for under-voltage, over-voltage, and other safety thresholds, keeping your system protected and preventing damage.
- Clear Display: The monitor’s high-quality display provides easy-to-read information, with the option to integrate with the VictronConnect app for remote monitoring and detailed data analysis.
- Compatible with Victron Systems: Seamlessly integrates with Victron’s inverters, chargers, and other components, making it the ideal choice for those using Victron energy solutions.
- Durable and Reliable: Built to last with high-quality components, ensuring that you can rely on it for long-term monitoring in demanding environments.
Q&A
Q: What is the Victron Energy BMV-700H High Voltage Battery Monitor used for?
A: The BMV-700H is designed to monitor the voltage, current, and state of charge of high-voltage battery systems, ideal for use in solar, off-grid, and industrial applications.
Q: What voltage range does the BMV-700H support?
A: It supports a high voltage range from 60V to 385V DC, making it suitable for large-scale systems.
Q: What features does the BMV-700H include?
A: It offers real-time monitoring of battery voltage, current, and state of charge (SOC), as well as the ability to track battery history and trends.
Q: Is the BMV-700H compatible with all battery types?
A: Yes, it is compatible with various battery chemistries, including lithium-ion, lead-acid, and others, provided they fall within the supported voltage range.
Q: Does it have smart features?
A: Yes, the BMV-700H has Bluetooth connectivity, allowing remote monitoring and control through the Victron Energy app.
Q: How easy is it to install?
A: It is easy to install with clear wiring instructions and integrates seamlessly with other Victron devices.
Q: Does it include built-in safety features?
A: Yes, it includes protections for overvoltage and undervoltage, ensuring safe operation and reliable performance in high-voltage systems
Maintenance Tips
-
Regular Cleaning: Clean the BMV-700H unit regularly with a soft, dry cloth to remove dust and debris. Avoid using water or harsh chemicals that could damage the display or internal components.
-
Ensure Proper Installation: Ensure the battery monitor is securely installed and positioned in a well-ventilated location. Proper installation will prevent damage from vibration or exposure to extreme temperatures.
-
Inspect Wiring and Connections: Periodically check the wiring, connectors, and terminals for any loose connections, signs of wear, or corrosion. Tighten any loose connections to ensure proper communication between the monitor and the battery system.
-
Monitor Battery Performance: Use the BMV-700H to continuously monitor your battery’s voltage and charge status. Ensure that the unit is providing accurate data and that your battery system is operating within the recommended voltage range (60-385VDC).
-
Test Functionality: Periodically verify that the monitor is correctly tracking battery voltage, current, and state of charge. Ensure all readings are accurate and that the system is functioning as expected. Perform a self-test if available to confirm proper operation.
-
Check for Firmware Updates: If applicable, check for firmware updates from Victron Energy to ensure your unit is running the latest software. Firmware updates can improve accuracy, fix bugs, and provide new features.
-
Inspect for External Damage: Regularly check the exterior for physical damage, such as cracks or scratches, which could compromise the monitor’s performance. Address any damage promptly to prevent further issues.
-
Avoid Overloading: Ensure that the monitor’s settings are appropriately configured for your specific high-voltage battery system. Overloading the system with excessive current can affect the accuracy of the monitor or cause damage
