BMV-710H Smart High Voltage Battery Monitor (60-385VDC)

The BMV-710H Smart has Bluetooth built-in and can connect wirelessly to your phone (or tablet) via the VictronConnect App to conveniently read out all monitored battery parameters, like state of charge, time to go, historical information and much more.

This battery monitor can calculate the state of charge of a battery and keep track of the ampere hours consumed from the battery by integrating the current flowing in or out of the battery.

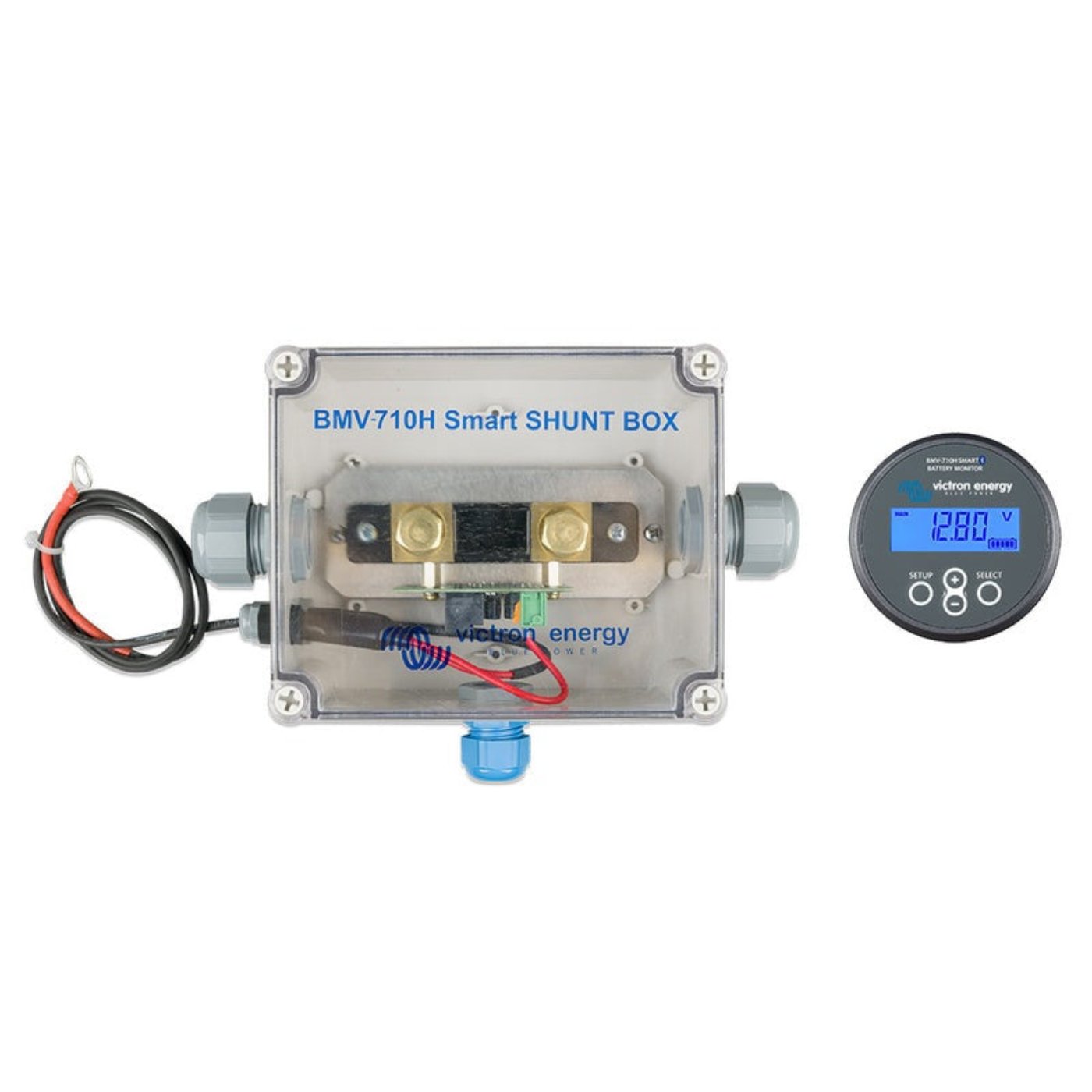

The monitor comes with a round head unit, a square bezel overlay, a screw ring for mounting, a 10m UTP RJ12 cable, a fused power supply cable, and a 500 A/50 mV shunt. Because of the high voltage application, the shunt is housed in a special enclosure.

Battery ‘fuel gauge’, time-to-go indicator, and much more

The remaining battery capacity depends on the ampere-hours consumed, discharge current, and temperature and the age of the battery. Complex software algorithms are needed to take all these variables into account.

Next to the basic display options, such as voltage, current, and ampere-hours consumed, the BMV-700 series also displays the state of charge, time to go, and power consumption in Watts.

Features

• Battery voltage, current, power, ampere-hours consumed, and state of charge

• Remaining time at the current rate of discharge

• Programmable visual and audible alarm

• Programmable relay, to turn off non critical loads or run a generator when needed

• 500 Amp quick connect shunt and connection kit

• Shunt selection capability up to 10,000 amps

• VE.Direct communication port

• Stores a wide range of historical events, which can be used to evaluate usage patterns and battery health

• Wide input voltage range: 6.5 – 95V

• High current measurement resolution: 10 mA (0.01A)

• Low current consumption: 2.9Ah per month (4mA) @12V and 2.2Ah per month (3mA) @ 24V

Specifications

Video

• Regular Cleaning: Wipe down the BMV-710H monitor with a soft, dry cloth to remove any dust, dirt, or debris. Avoid using water or harsh cleaning agents, as they may damage the unit or its components.

• Ensure Proper Installation: Install the monitor in a secure, dry, and well-ventilated location to prevent overheating and ensure clear readings. Ensure that the monitor is positioned for easy viewing and access to its connections.

• Inspect Wiring and Connections: Periodically check the wiring and connections for any signs of damage, corrosion, or loose terminals. Tighten any loose connections and clean corrosion as necessary to ensure reliable communication between the monitor and the battery system.

• Monitor Battery Performance: Regularly check the BMV-710H to ensure it is accurately monitoring the high-voltage battery’s voltage, current, and state of charge (SOC). Verify that the system is functioning within the recommended voltage range (60-385VDC).

• Test Functionality: Perform periodic tests to ensure that all the monitor's functions are working correctly. Check that the data displayed (e.g., battery voltage, current, charge level) is accurate and matches the readings from other devices or systems.

• Check for Firmware Updates: As the BMV-710H is a smart device, ensure that the unit is running the latest firmware by checking for updates through the Victron app or the Victron website. Updates may improve performance, add new features, or resolve software issues.

• Inspect for External Damage: Regularly inspect the exterior of the unit for any signs of physical damage such as cracks, chips, or scratches. If you find any damage, address it immediately to prevent further issues or potential malfunction.

• Ensure Compatibility: Ensure that the BMV-710H is properly configured for your specific high-voltage battery system and that all settings (e.g., voltage ranges and charging parameters) match your system requirements.
