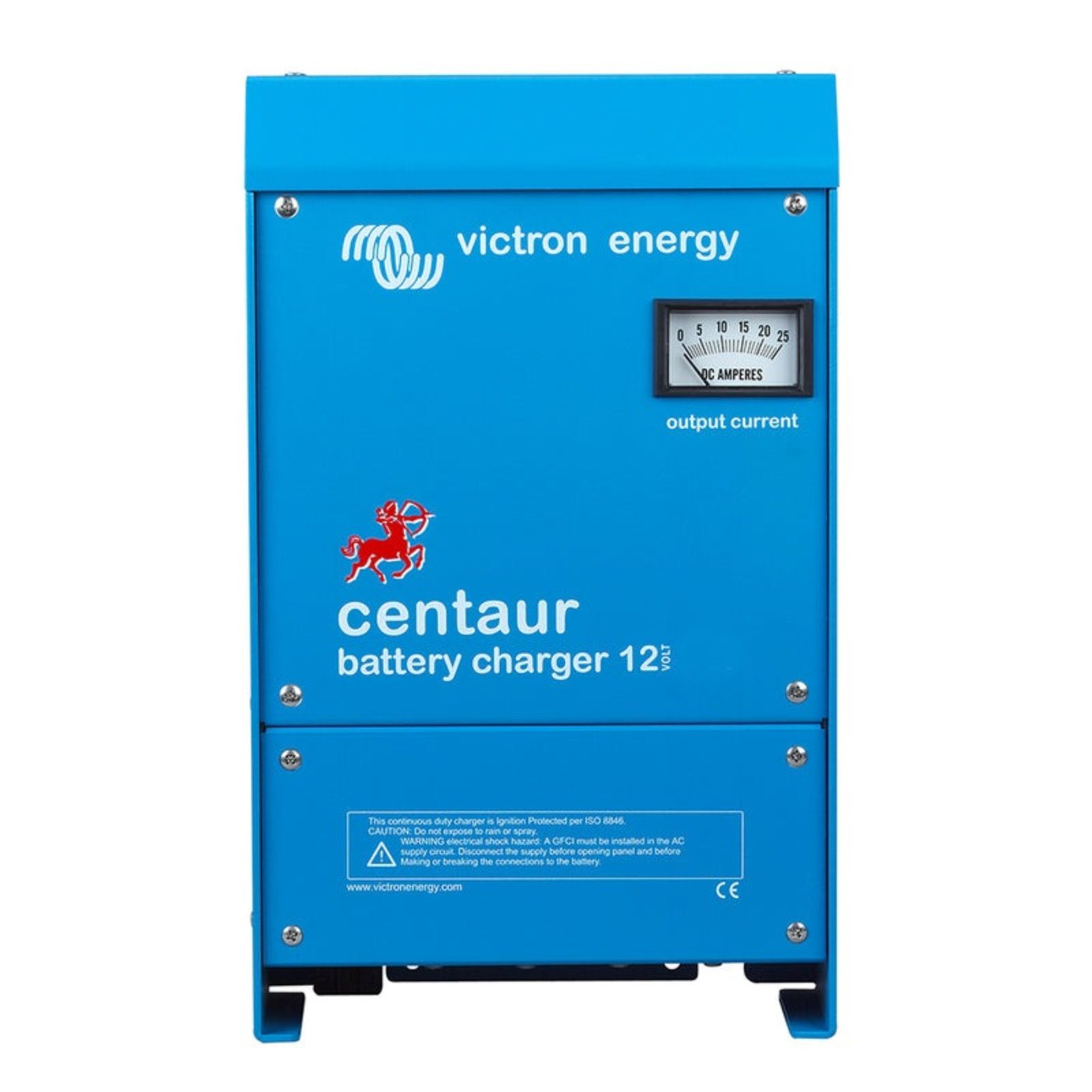

Victron Energy Centaur Charger - 12 VDC - 100AMP - 3-Bank - 120-240 VAC - CCH012100000 - CW82833

Victron Energy Centaur Charger - 12 VDC - 100AMP - 3-Bank - 120-240 VAC - CCH012100000 - CW82833

The Victron Energy Centaur Charger is engineered for durability and performance in harsh environments. Its aluminium epoxy powder-coated case with a drip shield and stainless steel fixings ensures resilience against heat, humidity, and salt air. Circuit boards are safeguarded with an acrylic coating for maximum corrosion resistance. Temperature sensors monitor power components, ensuring they operate within safe limits, with automatic reduction of output current under extreme conditions.

Features

• Quality without compromise - Aluminium epoxy powder coated cases with drip shield and stainless steel fixings withstand the rigors of an adverse environment: heat, humidity and salt air. Circuit boards are protected with an acrylic coating for maximum corrosion resistance. Temperature sensors ensure that power components will always operate within specified limits, if needed by automatic reduction of output current under extreme environmental conditions.

• Universal 90-265V AC input voltage range and also suitable for DC supply (AC-DC and DC-DC operation) All models will operate without any adjustment needed over a 90 to 265 Volt input voltage range, whether 50 Hz or 60 Hz.

• The chargers also accept a 90-400 V DC supply.

• Three outputs that each can supply the full output current Three isolated outputs to simultaneously charge 3 battery banks Each output is capable to supply the full rated current.

• Three-stage charging, with temperature compensation The Centaur charges at bulk rate until the output has reduced to 70% of the rated Amps, at which a 4 hour timer begins. After the timed period the charger switches to float rate. An internal temperature sensor is used to compensate the charge voltage with – 2 mV/ºC (– 1 mV/ºF) per cell. A DIP switch is available to select the optimum charge/float voltages for Flooded Lead-acid, Gel or AGM batteries

Specifications

What Our Experts Think

• High Output: With 100A charging capacity, it provides fast and efficient charging, ensuring your batteries are charged quickly and safely, ideal for larger off-grid or mobile systems.
• Three-Bank Charging: Capable of charging up to three separate 12V batteries simultaneously, making it perfect for complex systems like RVs, boats, or backup power setups.
• Wide Voltage Range: Supports 120-240 VAC input, offering flexibility in different regions and power configurations for global compatibility.
• Advanced Charging Algorithm: Incorporates a multi-stage charging process, including bulk, absorption, and float stages, optimizing battery life and performance by ensuring a safe, gradual charge.
• Durable and Reliable: Designed with rugged, high-quality components to withstand harsh environments, making it suitable for off-grid and marine applications where reliability is crucial.
• Built-In Protection: Includes safety features like over-voltage, over-temperature, and short-circuit protection, ensuring the longevity and safety of both the charger and your batteries.

Q&A

Q: What is the Victron Energy Centaur Charger used for?
A: The Centaur Charger is designed to efficiently charge 12V DC battery systems, ideal for use in off-grid, RV, marine, and industrial applications.

Q: What is the output capacity of the Centaur Charger?
A: It provides a 12V output with a 100A charging capacity, capable of charging multiple battery banks (up to 3) simultaneously.

Q: What input voltage does the Centaur Charger support?
A: It supports 120-240V AC input, making it compatible with a wide range of power sources.

Q: Does it support multiple battery banks?
A: Yes, the Centaur Charger can charge up to three separate battery banks, providing versatility in managing different battery systems.

Q: Is the Centaur Charger suitable for various battery types?
A: Yes, it is compatible with lead-acid, AGM, and lithium-ion batteries, with selectable charging profiles for each type.

Q: Does it include smart features?
A: The Centaur Charger does not have Bluetooth, but it can be integrated with other Victron devices for comprehensive system monitoring.

Q: Is it easy to install?
A: Yes, the Centaur Charger is designed for easy installation with clear wiring instructions and compatibility with a range of systems.

Q: Does it include built-in safety features?
A: Yes, it features overvoltage, overcurrent, and temperature protection to ensure safe and reliable charging

Maintenance Tips

• Regular Cleaning: Clean the Centaur Charger using a soft, dry cloth to remove dust and debris. Avoid using water or harsh chemicals that could damage the unit. Pay close attention to air vents and cooling areas to prevent dust buildup, which can affect ventilation.

• Ensure Proper Ventilation: Install the charger in a well-ventilated area, ensuring that the vents are not obstructed. Overheating can reduce the charger’s efficiency and lifespan, so adequate airflow is essential to maintain optimal performance.

• Inspect Wiring and Connections: Periodically check the input and output wiring, including terminals, for signs of wear, corrosion, or loose connections. Tighten any loose connections to ensure secure contact and prevent potential electrical issues.

• Monitor Charging Performance: Regularly check the performance of the charger to ensure it is correctly charging all three battery banks. Verify that the output voltage and current match the specifications for your battery type.

• Test Functionality: Occasionally, test the functionality of the charger by checking that it is properly distributing power across the three battery banks. Ensure the system is functioning efficiently and without errors.

• Check for Firmware Updates: If applicable, check for firmware updates from Victron Energy. Keeping your charger’s firmware up to date helps improve performance, adds new features, and resolves potential issues.

• Avoid Overloading: Make sure that the charger is not being overloaded beyond its rated current (100A). Ensure that the charging system is within its operating limits to prevent overheating and potential damage.

• Inspect for External Damage: Regularly inspect the external casing of the charger for cracks, dents, or any physical damage. Address any damage immediately to prevent further issues or compromise the unit’s protection.
