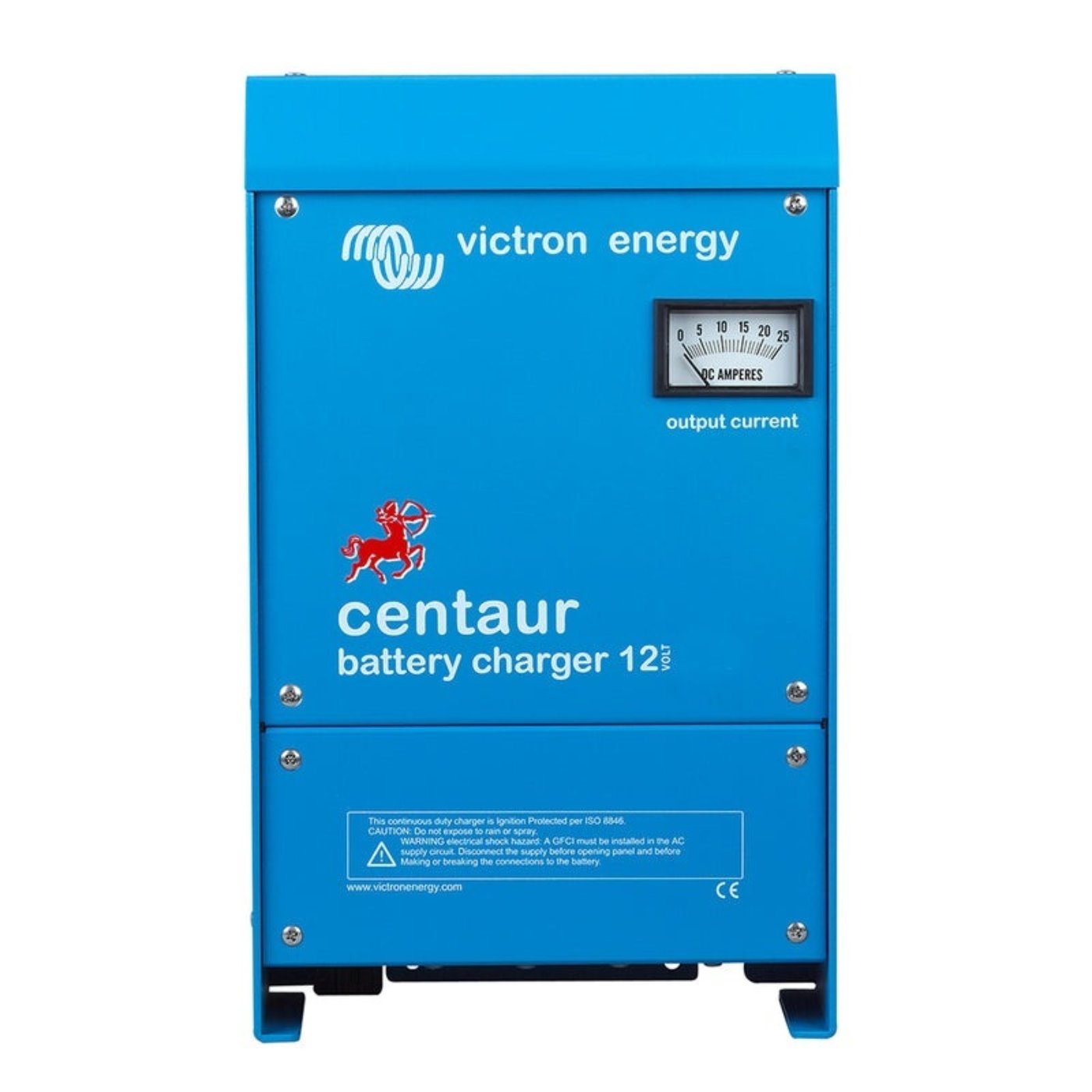

Victron Energy Centaur Charger - 12 VDC - 60AMP - 3-Bank - 120-240 VAC - CCH012060000 - CW82831

Victron Energy Centaur Charger - 12 VDC - 60AMP - 3-Bank - 120-240 VAC - CCH012060000 - CW82831

The Centaur Charger delivers uncompromising quality and durability, designed to excel in harsh environments. Its robust aluminium epoxy powder-coated case with a drip shield and stainless steel fixings ensures resilience against heat, humidity, and salt air. The circuit boards are coated with acrylic to provide maximum corrosion resistance, and integrated temperature sensors monitor power components, adjusting the output current as needed to prevent overheating under extreme conditions. This charger operates efficiently across a wide input voltage range of 90-265V AC and is also compatible with a 90-400V DC supply, making it versatile for various power sources without requiring manual adjustments.

Equipped with three isolated outputs, the Centaur Charger can simultaneously charge up to three separate battery banks, each delivering the full rated current. It features a sophisticated three-stage charging process that includes bulk, timer, and float stages. The charger automatically switches to float mode after a 4-hour timer once the output drops to 70% of its rated amps. Temperature compensation ensures optimal charging performance by adjusting the voltage according to temperature changes, with a DIP switch allowing customization for different battery types such as Flooded Lead-acid, Gel, or AGM. This advanced design ensures reliable and efficient battery maintenance, enhancing both performance and longevity.

Features

• Quality without compromise - Aluminium epoxy powder coated cases with drip shield and stainless steel fixings withstand the rigors of an adverse environment: heat, humidity and salt air. Circuit boards are protected with an acrylic coating for maximum corrosion resistance. Temperature sensors ensure that power components will always operate within specified limits, if needed by automatic reduction of output current under extreme environmental conditions.

• Universal 90-265V AC input voltage range and also suitable for DC supply (AC-DC and DC-DC operation) All models will operate without any adjustment needed over a 90 to 265 Volt input voltage range, whether 50 Hz or 60 Hz.

• The chargers also accept a 90-400 V DC supply.

• Three outputs that each can supply the full output current Three isolated outputs to simultaneously charge 3 battery banks Each output is capable to supply the full rated current.

• Three-stage charging, with temperature compensation The Centaur charges at bulk rate until the output has reduced to 70% of the rated Amps, at which a 4 hour timer begins. After the timed period the charger switches to float rate. An internal temperature sensor is used to compensate the charge voltage with – 2 mV/ºC (– 1 mV/ºF) per cell. A DIP switch is available to select the optimum charge/float voltages for Flooded Lead-acid, Gel or AGM batteries

Specifications

What Our Experts Think

• Efficient Charging: With a 60A output, this charger offers fast and efficient charging, ensuring your batteries are fully charged and ready for use in a variety of off-grid and mobile applications.
• Three-Bank Charging: Capable of charging up to three 12V batteries simultaneously, making it ideal for systems that require multiple battery banks, such as RVs, boats, and backup power systems.
• Wide Input Voltage Range: Supports 120-240 VAC input, offering compatibility across different regions and installations, whether you’re in North America, Europe, or elsewhere.
• Optimized Charging Process: Features a multi-stage charging process (bulk, absorption, and float stages), ensuring your batteries are charged safely and effectively, optimizing both performance and lifespan.
• Durable and Safe: Built with high-quality components and protective features such as over-voltage, over-temperature, and short-circuit protection, ensuring safe operation and long-term durability.
• Compact and Flexible: The compact design allows for easy installation in tight spaces, while the flexible voltage input options make it suitable for a wide range of applications.

Q&A

Q: What is the Victron Energy Centaur Charger used for?
A: The Centaur Charger is designed to efficiently charge 12V DC battery systems, ideal for off-grid, RV, marine, and industrial setups.

Q: What is the output capacity of the Centaur Charger?
A: It provides a 12V output with a 60A charging capacity, capable of charging up to three separate battery banks simultaneously.

Q: What input voltage does the Centaur Charger support?
A: It supports 120-240V AC input, making it versatile and compatible with different power sources.

Q: Does it support multiple battery banks?
A: Yes, the Centaur Charger can charge up to three battery banks, offering flexibility for managing different systems.

Q: Is the Centaur Charger compatible with various battery types?
A: Yes, it works with lead-acid, AGM, and lithium-ion batteries, with selectable charging profiles tailored to each type.

Q: Does it have smart features?
A: The Centaur Charger does not include Bluetooth, but it can be integrated with other Victron devices for remote monitoring and system management.

Q: Is it easy to install?
A: Yes, it is designed for simple installation with clear wiring instructions, making it suitable for various applications.

Q: Does it include built-in safety features?
A: Yes, the Centaur Charger offers overvoltage, overcurrent, and temperature protection to ensure safe operation

Maintenance Tips

• Regular Cleaning: Clean the Centaur Charger regularly with a soft, dry cloth to remove dust and debris. Avoid using water or harsh chemicals that could damage the unit. Ensure the ventilation areas are clear of dust to maintain proper airflow.

• Ensure Proper Ventilation: Install the charger in a well-ventilated location with sufficient airflow. Keep the ventilation grilles clear to prevent overheating, which could impair performance and longevity.

• Inspect Wiring and Connections: Periodically inspect all wiring, including input and output terminals, for signs of wear, corrosion, or loose connections. Tighten any loose connections and clean any corrosion to prevent inefficient charging and potential safety hazards.

• Monitor Charging Performance: Regularly monitor the performance of the charger. Ensure that it is effectively charging all three battery banks and that the voltage and current levels are appropriate for your specific battery type.

• Test Functionality: Perform periodic tests to ensure the charger is distributing the charge correctly across all three battery banks. Check that the unit is charging without interruptions and that there are no warning or error indicators.

• Check for Firmware Updates: Ensure the Centaur Charger’s firmware is up to date. Victron Energy periodically releases updates that improve functionality, fix bugs, and enhance performance. Check the Victron website or app for the latest versions.

• Avoid Overloading: Ensure the charger is not operating beyond its rated capacity (60A). Overloading the unit could lead to overheating and potential damage. Confirm that the system is within safe operating limits.

• Inspect for External Damage: Regularly check the charger’s casing for cracks, dents, or signs of physical damage. Address any external damage immediately to prevent further issues or impact on the unit’s operation.
