Ekrano GX

The Ekrano GX represents the next generation in the GX product family. With its complete range of connections and interfaces as well as its integrated 7-inch touchscreen display, it is the most powerful GX device to date and allows you to always have perfect control over your system from wherever you are and to maximize its performance. Simply access your system via our Victron Remote Management (VRM) portal, or access it directly, using the built-in touchscreen, a Multi-Functional Display (MFD), or our VictronConnect app thanks to its Bluetooth capability. The Ekrano GX is also the successor to the Color Control GX.

Perfect Monitoring & Control

Instantly monitor the battery state of charge, power consumption, and power harvest from PV, generator, and mains, or check tank levels and temperature measurements. Easily control the shore power input current limit, (auto)start/stop generator(s) or change any setting to optimize the system. Follow up on alerts, perform diagnostic checks, and resolve challenges remotely. The Ekrano GX turns any power challenge into an effortless experience.

Expand Your View

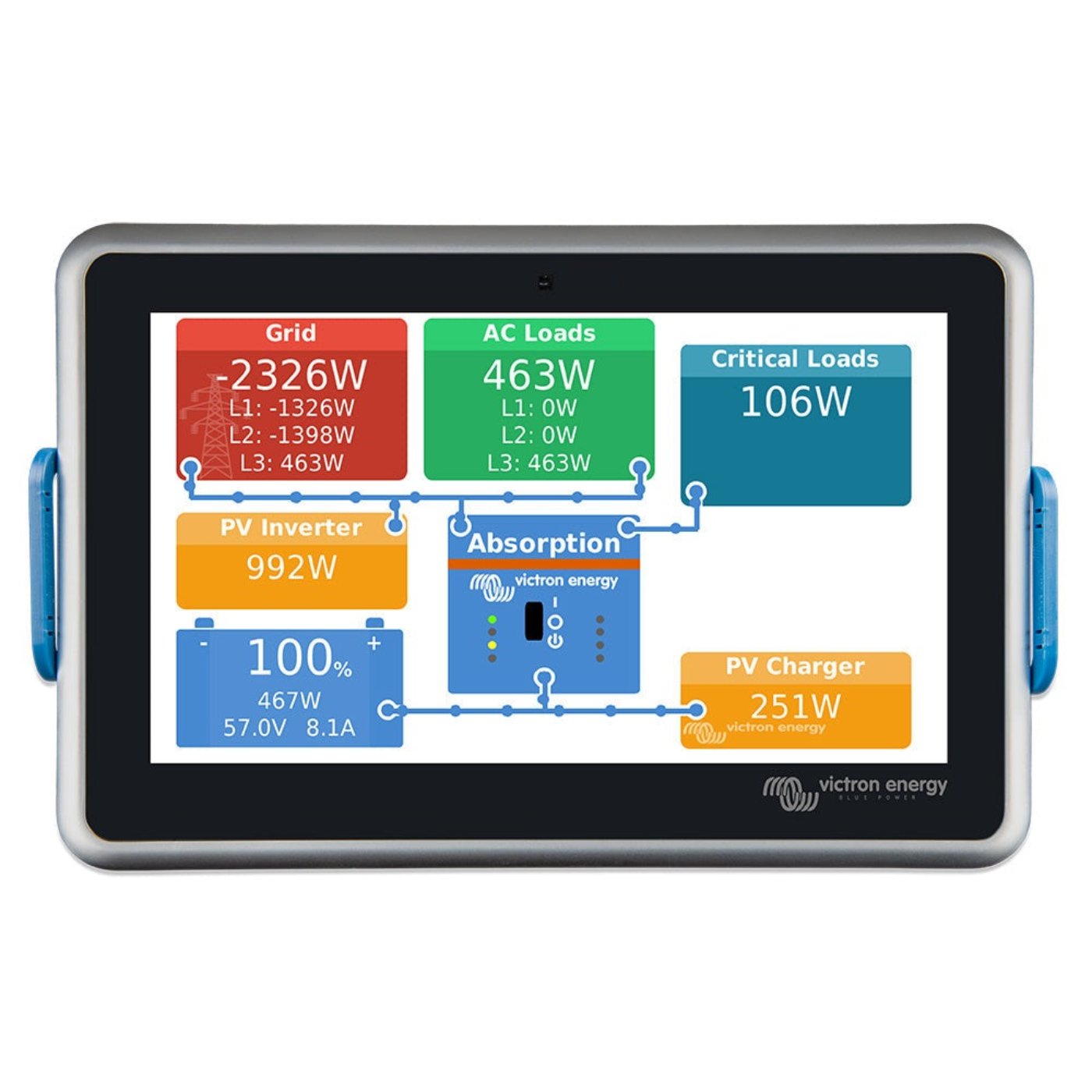

The integrated 7-inch touchscreen allows you to have an instant overview of your system and adjust settings in the blink of an eye. Its super slim waterproof design offers a lot of flexibility in designing a crisp and clean dashboard. The touch function can be disabled (or enabled) via a recessed button on the back to prevent unauthorized use.

Simple Mounting & Configuration

The Ekrano GX is optimized for flush panel or blind hole mounting and has all the necessary mounting material supplied. Screw-on terminal blocks keep everything securely in place.

Outsmart Any Power Challenge

The Ekrano GX serves endless purposes, extending perfect control to the most diverse applications. For solutions including generators, such as Marine, or Offgrid & Backup, it will auto-start/stop your generator, or delays ignition until the end of ‘quiet’ periods. For Energy Storage Systems it keeps backup batteries at 100%, kicks in during power cuts, and diverts excess (solar) power to self-consumption, saving you money. For RV and Emergency vehicles, it keeps vital systems functioning flawlessly. But that’s just to name a few.

Features

• Real-time monitoring of battery state of charge, power consumption, PV power harvest, generator, and mains power.

• Tank level and temperature measurements.

• Control shore power input current limit.

• Auto-start/stop generator functionality.

• Follow up on alerts and perform diagnostic checks remotely

Specifications

• Regular Cleaning: Clean the Ekrano GX screen regularly using a soft, dry cloth to remove dust, fingerprints, and debris. Avoid using water or harsh cleaning chemicals, as they may damage the display or casing.

• Ensure Proper Installation: Install the Ekrano GX in a dry, cool location with good ventilation to prevent overheating. Ensure it is securely mounted to avoid accidental damage, especially around connectors and cables.

• Inspect Wiring and Connections: Periodically check all input and output connections for wear, corrosion, or loose terminals. Tighten any loose connections to maintain reliable data communication and ensure that all cables are securely connected.

• Monitor Display Performance: Check the display for clarity and responsiveness. If the touch screen becomes unresponsive or shows incorrect readings, ensure the firmware is up to date or consider a reset if necessary.

• Check for Firmware Updates: Regularly check for firmware updates through the VictronConnect app or website to ensure that the Ekrano GX operates with the latest features and improvements. Firmware updates can also help resolve any known issues.

• Protect from Overheating: Avoid placing the Ekrano GX in areas with high temperatures or inadequate ventilation, as overheating can affect the display and internal components. Ensure that the unit is kept within the recommended operating temperature range.

• Inspect for External Damage: Periodically inspect the casing for any physical damage such as cracks or chips. Address any damage promptly to prevent further issues and protect the internal components of the unit.

• Avoid Excessive Power Loads: Ensure that the system connected to the Ekrano GX does not exceed its power rating. Overloading can result in malfunction or system shutdowns, so monitor the power requirements of all connected devices.
