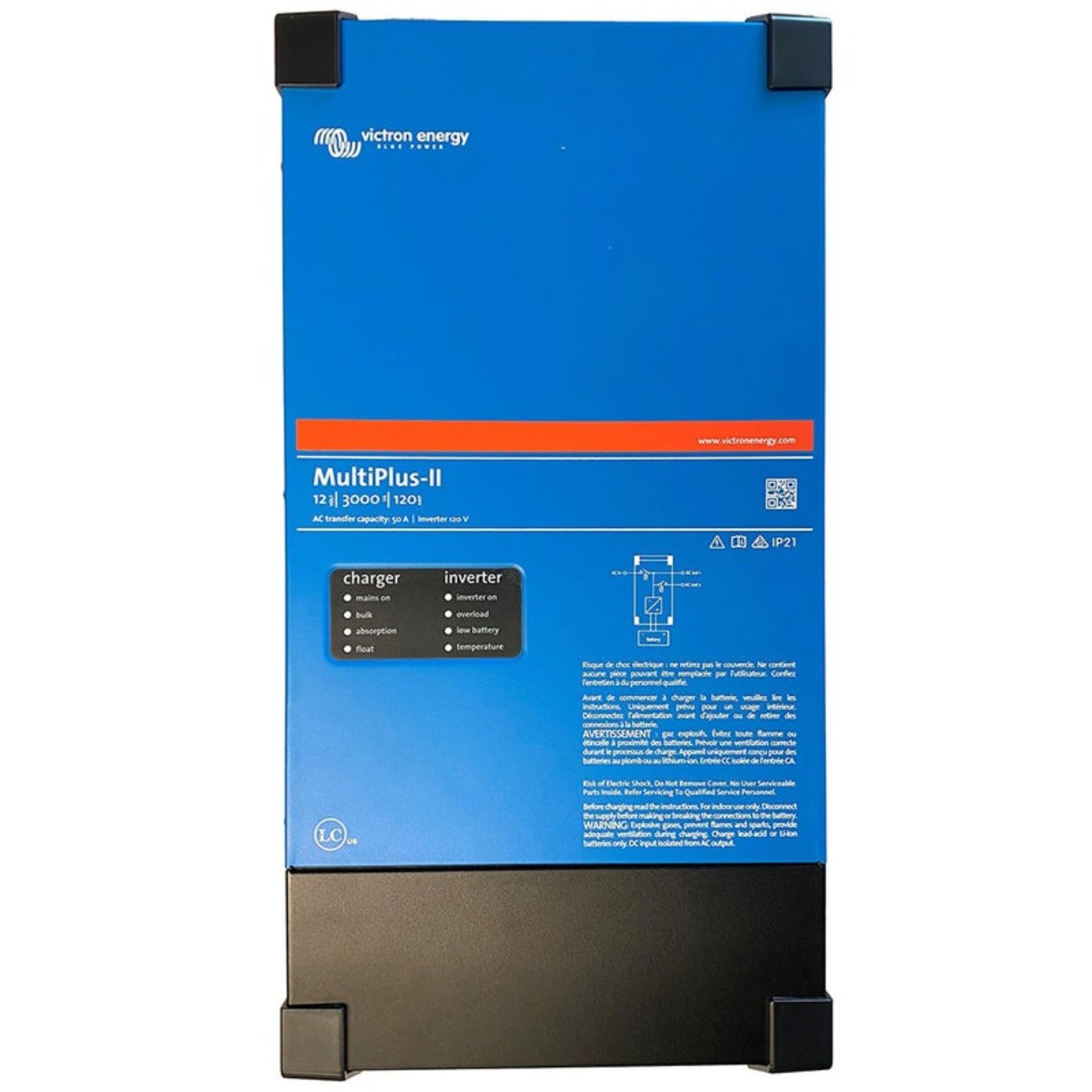

MultiPlus-II 12/3000 - 120-50 - 120V - UL Approved

The MultiPlus-II, an inverter/charger, combines the functions of the MultiPlus and the MultiGrid. It has all the features of the MultiPlus, plus an external current transformer option to implement PowerControl and PowerAssist and to optimize self-consumption with external current sensing (max. 32A). It also has all the features of the MultiGrid with built-in anti-islanding and an increasingly long list of country approvals.

PowerAssist

The MultiPlus-II will prevent the overload of a limited AC source, such as a generator or shore power connection. First, battery charging will automatically be reduced when otherwise an overload would occur. The second level will boost the output of a generator or shoreside supply with power taken from the battery.

ESS: Energy Storage Systems

The MultiPlus-II is the key component in a Victron ESS system, providing the flexibility to combine with MPPT Solar Chargers or Grid-tie PV Inverters.

Uninterrupted AC power (UPS function)

In the event of a grid failure, or when shore or generator power is disconnected, the inverter within the Multi is automatically activated and takes over the supply to the connected loads. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption.

Remote Monitoring and Control

When coupled with a GX device (e.g. Cerbo GX) you can monitor and control your Multi and system or systems' locally (LAN) or remotely via the internet from anywhere in the world, using the free VRM app and free VRM portal website. Access can be from a phone, tablet, laptop or PC for multiple operating systems. There is no end to the level of control, from adjusting your Multi to auto starting a backup generator and more.

Features

• Inverter and Charger Combined:
  • Dual Functionality: Integrates the features of a high-performance inverter and a smart charger in a single unit.
• PowerAssist Technology:
  • Overload Protection: Prevents overload of limited AC sources such as generators or shore power connections. It reduces battery charging to avoid overload and boosts output using battery power when necessary.
• ESS (Energy Storage Systems):
  • Flexible Integration: Acts as a core component in a Victron ESS system, compatible with MPPT Solar Chargers or Grid-tie PV Inverters for efficient energy storage and usage.
• Uninterrupted Power Supply (UPS) Function:
  • Seamless Transition: Automatically switches to inverter mode in the event of a grid failure or disconnection from shore or generator power, ensuring continuous power supply to connected loads within 20 milliseconds.

Specifications

What Our Experts Think

• Versatile Power Solution: 3000VA inverter with a 120A battery charger, ideal for off-grid, marine, and RV systems.
• Pure Sine Wave Technology: Provides clean, stable power to protect sensitive electronics and appliances.
• Automatic Power Switching: Includes a 50A transfer switch for seamless transitions between power sources.
• VE.Bus Compatibility: Supports advanced system integration, monitoring, and control with Victron Energy components.
• High Efficiency: Optimized for energy reliability and long-term performance in demanding setups.

Q&A

Q: What is the Victron Energy MultiPlus-II 12/3000 Inverter/Charger (PMP122305122)?
A: A high-performance 12V inverter/charger with 3000VA output, 120A battery charging, and advanced integration for hybrid, off-grid, and backup power systems.

Q: What are its key features?
A:

• Inverter Output: 3000VA for powering demanding AC appliances.
• Battery Charger: 120A multi-stage charger for efficient battery management.
• Grid-Assist: Supports feed-in, backup, and off-grid functionality.
• Transfer Switch: 50A automatic switch for seamless power transitions.
• VE.Bus Compatibility: Allows for parallel and three-phase system configurations.
• Compact Design: Built for flexibility and ease of installation.

Q: Who is it ideal for?
A: Ideal for RVs, boats, off-grid solar setups, hybrid energy systems, and backup applications.

Q: Why choose this inverter/charger?
A: It combines advanced features, reliable performance, and scalability, making it a top choice for versatile energy systems.

Maintenance Tips

• Inspect Connections: Regularly check AC/DC terminals for tight and corrosion-free connections.
• Monitor via App: Use the VictronConnect app or VE.Bus to track system performance and adjust settings as needed.
• Keep Vents Clean: Dust vents and external surfaces to ensure optimal cooling and prevent overheating.
• Update Firmware: Update firmware through VE.Bus for the latest features and performance improvements.
• Test Transfer Switch: Periodically verify the functionality of the 50A transfer switch for seamless power transitions.
• Set Charger Correctly: Configure the system to match your battery specifications for efficient and safe charging.
• Install Properly: Ensure installation in a dry, ventilated area away from temperature extremes and vibrations.
