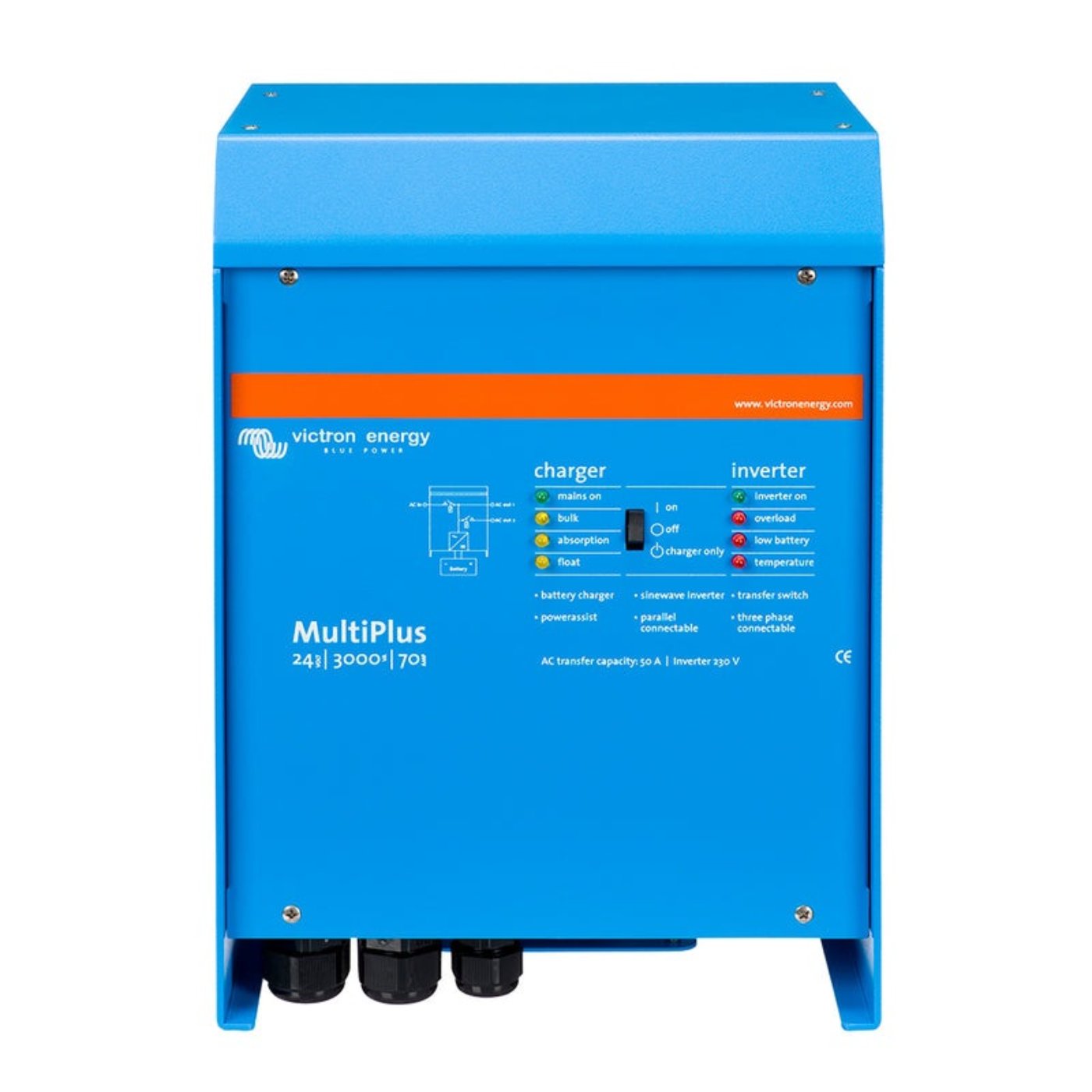

Victron Energy Multiplus Inverter/Charger 24VDC - 3000VA - 120VAC w/7 70AMP Charger - 50AMP Transfer Switch - PMP242301102 - CW82640

Victron Energy Multiplus Inverter/Charger 24VDC - 3000VA - 120VAC w/7 70AMP Charger - 50AMP Transfer Switch - PMP242301102 - CW82640

The Victron Energy MultiPlus Inverter/Charger seamlessly combines multiple functions into a single, compact unit, making it an ideal solution for both residential and marine applications. It features a robust 3000VA inverter and a 70AMP battery charger, alongside a 50AMP transfer switch, all with UL approval for safety and reliability. This versatile device integrates a true sine wave inverter with adaptive charging and hybrid PowerAssist technology, ensuring efficient and reliable performance.

The unique PowerAssist feature prevents overloads of limited AC sources like generators or shore power connections. The MultiPlus first reduces battery charging to prevent overload and then boosts the AC source’s output using power from the battery if needed. Additionally, the MultiPlus offers uninterrupted AC power with its UPS function, switching to inverter mode within less than 20 milliseconds during grid failures or disconnections, ensuring continuous operation for sensitive electronics. For expanded power needs, up to six MultiPlus units can be connected in parallel, with options for three-phase or split-phase configurations. Remote monitoring and control are facilitated through the free VRM app and portal, allowing global access and comprehensive management from any device with internet capability, enhancing the versatility and control of your power system.

Features

• Multifunctional -The MultiPlus, as the name suggests, is a combined inverter and charger in one elegant package. Its many features include a true sine wave inverter, adaptive charging, hybrid PowerAssist technology, plus multiple system integration features.

• Unique PowerAssist feature - The MultiPlus will prevent overload of a limited AC source, such as a generator or shore power connection. First, battery charging will automatically be reduced when otherwise an overload would occur. The second level will boost the output of a generator or shore side supply with power taken from the battery

• Uninterrupted AC power (UPS function) - In the event of a grid failure, or when shore or generator power is disconnected, the inverter within the Multi is automatically activated and takes over the supply to the connected loads. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption.

• Virtually unlimited power thanks to parallel operation -Up to 6 Multis can operate in parallel to achieve higher power output. Three phase or split phase operation is also possible. Please check our datasheets to see which models have paralleling, three phase and split phase capabilities.

• Remote Monitoring and Control - Monitor and control your MultiPlus and system or systems' locally (LAN) or remotely via the internet from anywhere in the world, using the free VRM app and free VRM portal website. Access can be from a phone, tablet, laptop or PC for multiple operating systems. There is no end to the level of control, via the required Color Control GX or Venus GX, from adjusting your MultiPlus to setting a Geofence for hire vehicles and more...

Specifications

What Our Experts Think

• High Power Output: 3000VA inverter capacity designed for larger energy needs in off-grid, marine, or RV systems.
• Efficient Battery Charging: Includes a 70A charger for fast and reliable battery replenishment.
• Built-in Transfer Switch: 50A automatic switch ensures uninterrupted power by seamlessly transitioning between sources.
• Stable Power Delivery: Pure sine wave output protects sensitive electronics and ensures consistent performance.
• VE.Bus Connectivity: Enables integration with Victron systems for advanced monitoring and control.

Q&A

Q: What is the Victron Energy MultiPlus 24V 3000VA Inverter/Charger (PMP242301102)?
A: A robust 24V inverter/charger offering 3000VA output, a 70A battery charger, and a 50A transfer switch, designed for reliable power management in off-grid and backup systems.

Q: What are its key features?
A:

• Inverter Output: 3000VA for powering high-demand AC appliances.
• Battery Charger: 70A multi-stage charger for efficient battery maintenance.
• Transfer Switch: 50A automatic switch for seamless grid-to-inverter transition.
• VE.Bus Compatibility: Supports parallel and three-phase system configurations.
• Compact Design: Ideal for diverse energy setups with limited space.

Q: Who is it ideal for?
A: Perfect for off-grid solar, marine, RV, and backup systems requiring 24V power solutions and reliable performance.

Q: Why choose this inverter/charger?
A: It offers reliable energy conversion, efficient charging, and smooth power transfer, making it a dependable choice for demanding applications

Maintenance Tips

• Inspect Connections: Ensure all AC/DC terminals are securely tightened and free of corrosion.
• Monitor Performance: Use the VictronConnect app or VE.Bus to track system health and adjust settings.
• Clean Vents: Keep vents dust-free to maintain proper airflow and prevent overheating.
• Update Firmware: Regularly update firmware via VE.Bus for improved functionality and new features.
• Test Transfer Switch: Periodically test the 50A transfer switch to confirm seamless power source transitions.
• Configure Charger: Set the 70A charger to match your battery specifications for safe and efficient charging.
• Install Properly: Mount in a dry, well-ventilated location, away from vibrations and temperature extremes.
