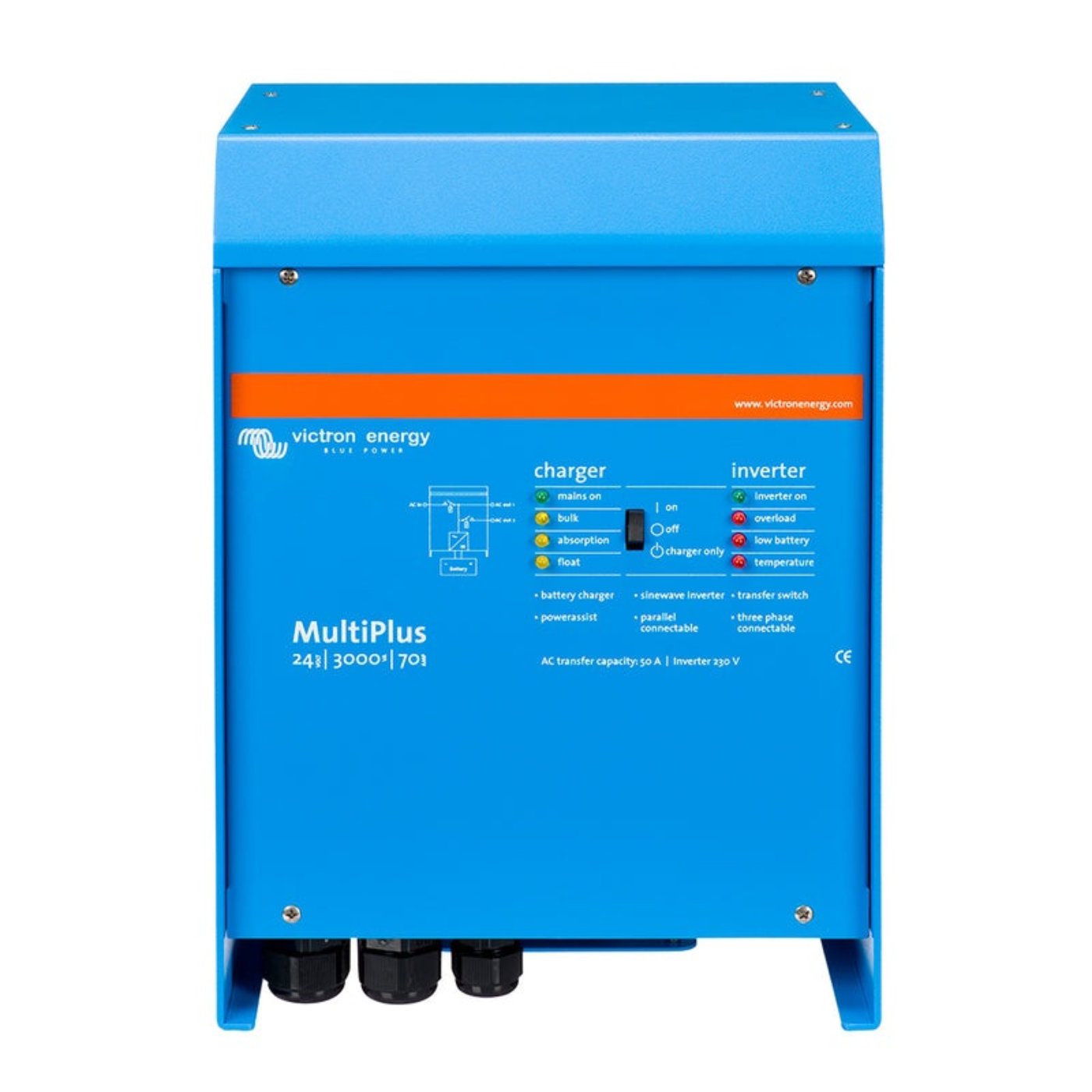

Victron Energy MultiPlus Inverter/Charger 24VDC - 3000VA -120VAC w/ 70-AMP Battery Charger - 50AMP Transfer Switch - PMP243021102 - CW82639

Victron Energy MultiPlus Inverter/Charger 24VDC - 3000VA -120VAC w/ 70-AMP Battery Charger - 50AMP Transfer Switch - PMP243021102 - CW82639

MultiPlus Inverter/Charger 24VDC - 3000VA - 70AMP Battery Charger - 50AMP Transfer Switch

The MultiPlus Inverter/Charger is a versatile and powerful device that combines the functions of an inverter and a battery charger into one elegant package. Designed for a wide range of applications, it provides reliable power, adaptive charging, and advanced system integration features, making it an ideal choice for both residential and professional energy systems.

Features

• Multifunctional -The MultiPlus, as the name suggests, is a combined inverter and charger in one elegant package. Its many features include a true sine wave inverter, adaptive charging, hybrid PowerAssist technology, plus multiple system integration features.

• Unique PowerAssist feature - The MultiPlus will prevent overload of a limited AC source, such as a generator or shore power connection. First, battery charging will automatically be reduced when otherwise an overload would occur. The second level will boost the output of a generator or shore side supply with power taken from the battery

• Uninterrupted AC power (UPS function) - In the event of a grid failure, or when shore or generator power is disconnected, the inverter within the Multi is automatically activated and takes over the supply to the connected loads. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption.

• Virtually unlimited power thanks to parallel operation -Up to 6 Multis can operate in parallel to achieve higher power output. Three phase or split phase operation is also possible. Please check our datasheets to see which models have paralleling, three phase and split phase capabilities.

• Remote Monitoring and Control - Monitor and control your MultiPlus and system or systems' locally (LAN) or remotely via the internet from anywhere in the world, using the free VRM app and free VRM portal website. Access can be from a phone, tablet, laptop or PC for multiple operating systems. There is no end to the level of control, via the required Color Control GX or Venus GX, from adjusting your MultiPlus to setting a Geofence for hire vehicles and more.

Specifications

What Our Experts Think

• Robust Power Solution: Delivers 3000VA inverter capacity, ideal for high-demand off-grid, marine, or RV applications.
• Efficient Charging: Features a 70A battery charger for fast and consistent energy replenishment.
• Seamless Power Switching: Includes a 50A transfer switch for automatic transitions between shore, generator, and inverter power.
• Pure Sine Wave Output: Ensures clean, reliable power for sensitive electronics and appliances.
• Advanced System Integration: VE.Bus compatibility allows for smart monitoring and control with Victron components.

Q&A

Q: What is the Victron Energy MultiPlus 24V 3000VA Inverter/Charger (PMP243021102)?
A: A powerful 24V inverter/charger delivering 3000VA output, a 70A battery charger, and a 50A transfer switch for seamless and efficient energy management.

Q: What are its key features?
A:

• Inverter Output: 3000VA for running high-demand AC appliances.
• Battery Charger: 70A multi-stage charger for effective battery maintenance.
• Transfer Switch: 50A automatic transfer for uninterrupted power supply.
• VE.Bus Compatibility: Allows parallel operation and three-phase system configurations.
• Durable Design: Compact and built for versatile energy applications.

Q: Who is it ideal for?
A: Suited for marine, off-grid solar, RV, and backup systems requiring a 24V solution with high capacity.

Q: Why choose this inverter/charger?
A: It combines robust performance, reliable charging, and smooth power transfer, ideal for demanding energy needs

Maintenance Tips

• Inspect Connections: Regularly check AC/DC terminals for tight, corrosion-free connections.
• Monitor System: Use the VictronConnect app or VE.Bus to monitor performance and adjust settings.
• Clean Vents: Keep air vents clear of dust to maintain efficient cooling and prevent overheating.
• Update Firmware: Update firmware via VE.Bus for improved features and performance.
• Test Transfer Switch: Periodically test the 50A transfer switch to ensure smooth source transitions.
• Optimize Charging: Configure the 70A charger to match battery specifications for safe, efficient charging.
• Install in Ideal Conditions: Mount in a dry, well-ventilated location, away from extreme temperatures and vibrations.
