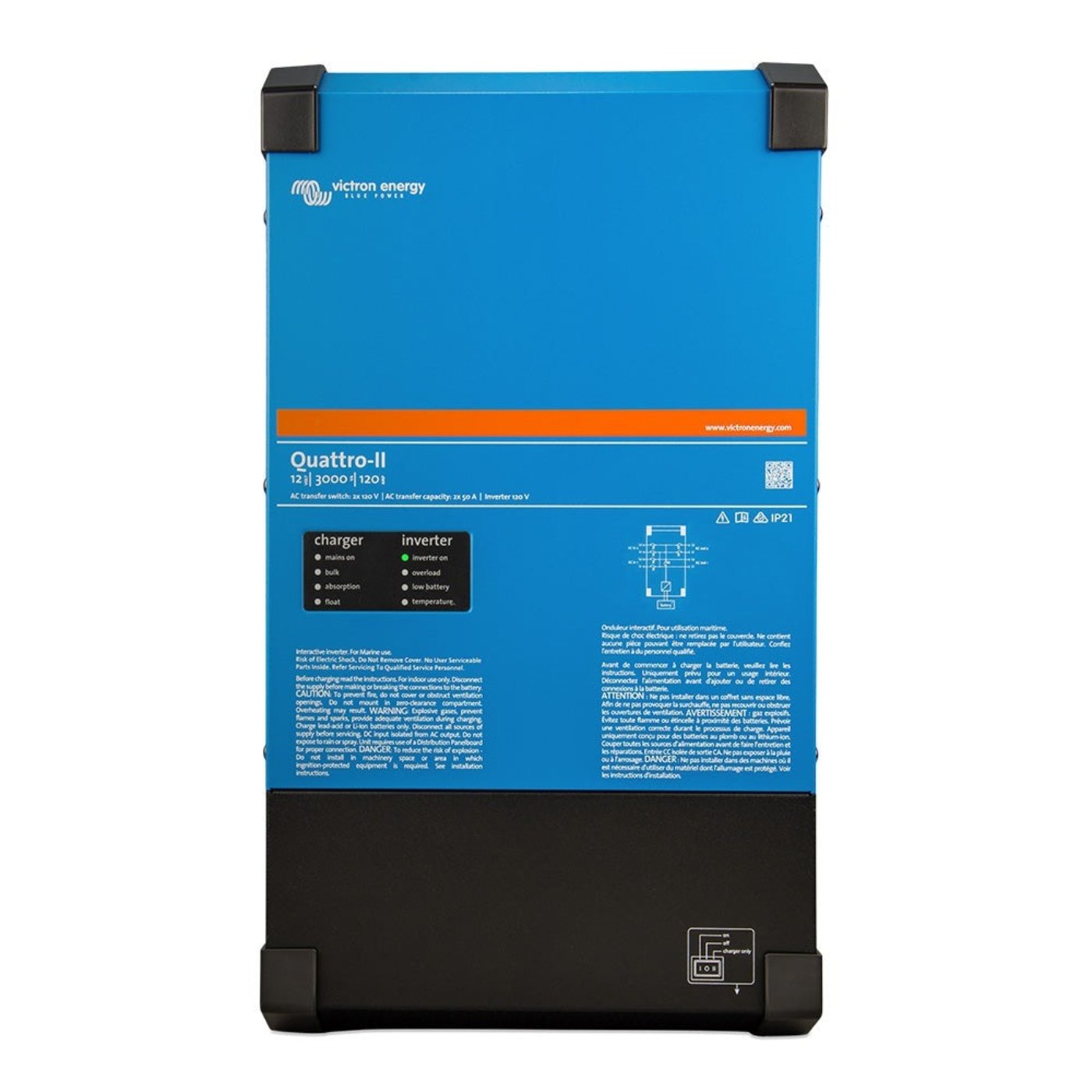

Quattro-II - 24/3000 - 70-50/50 - 2X 120V

Similar to the MultiPlus-II 2x120V, the Quattro-II 2x120V is a combined inverter and charger specifically designed for standard North American 50A 120/240VAC split-phase applications. Additionally, it can accept two AC inputs and automatically connect to the active source.

120/240V Input and Output, or 120V Input and Output (Always 120V Output When in Inverter Mode)

The two AC inputs can be supplied from a split-phase 120/240V source or a single-phase 120V source. When one of the AC sources is available, the Quattro will feed through the AC to its output. The output will therefore mirror the AC input.

The inverter/charger connects to the neutral and the preferred input line (L1). The power needed to charge the batteries will therefore be drawn from L1.

The Quattro switches to inverter operation when no AC source is available. The inverter output is 120V single-phase. In invert mode, the Quattro connects both output lines (L1 and L2) together to provide 120VAC to loads on either line.

Any 240V loads will therefore be supplied only when the Quattro is supplied by a split-phase AC source. This prevents heavy loads such as water heaters or 240V air conditioners from discharging the battery.

PowerControl and PowerAssist - Boosting the Capacity of the Grid or a Generator

A maximum grid or generator current can be set. The Quattro will then take account of other AC loads and use whatever is extra for battery charging, thus preventing the generator or grid from being overloaded (PowerControl function).

PowerAssist takes the principle of PowerControl to a further dimension. Where peak power is often required only for a limited period, the Quattro will compensate for insufficient generator, shore, or grid power with power from the battery. When the load reduces, the spare power is used to recharge the battery (available on L1 input only).

Two AC Inputs and Two AC Outputs

The Quattro can be connected to two independent AC sources, for example,shore-side power and a generator, or two generators. The Quattro-II will automatically connect to the active source.

The main output has no-break functionality. The Quattro takes over the supply to the connected 120V loads in the event of a grid failure or when shore/generator power is disconnected. The transfer time of the L1 output is less than 18 milliseconds, so computers and other electronic equipment will continue to operate without disruption. The transfer time of the L2 output is longer: approximately 40 milliseconds.

The second (auxiliary) output is live only when AC is available on the input of the Quattro. Loads that should not discharge the battery can be connected to this output.

Virtually Unlimited Power Thanks to Parallel and Three-Phase Operation

Up to 6 Quattros can operate in parallel to achieve a higher power output. In addition to parallel connections, three units of the same model can be configured for three-phase output. In multi-phase setups, L2 is disabled on all units.

On-Site System Configuring, Monitoring and Control

Settings can be changed in a matter of minutes with the VictronConnect app or VEConfigure software (computer or laptop and MK3-USB interface are needed). Several monitoring and control options are available: Cerbo GX, Color Control GX, laptop, computer, Bluetooth (with the optional VE.Bus Smart dongle), Battery Monitor, and Digital Multi Control Panel.

Remote Configuration and Monitoring

Install a Cerbo GX or other GX product to connect to the internet. Operational data can be stored and displayed on our VRM (Victron Remote Management) website free of charge. When connected to the internet, systems can be accessed remotely, and settings can be changed.

Features

• Dual AC Inputs and Outputs:

  • Accommodates both 120/240V split-phase or 120V single-phase sources.

  • Automatically switches to the active AC source, ensuring seamless power supply.

• 120V Single-Phase Output:

  • Provides 120V output in inverter mode by connecting both output lines (L1 and L2), suitable for loads on either line.

• PowerControl and PowerAssist:

  • PowerControl: Limits the maximum current drawn from the grid or generator to prevent overload.

  • PowerAssist: Compensates for insufficient grid or generator power by supplementing with battery power and recharges the battery when the load decreases.

• No-Break Functionality:

  • Main Output: Less than 18 milliseconds transfer time for 120V loads, ensuring uninterrupted power for sensitive electronics.

  • Auxiliary Output: Live only when AC is available, protecting battery power for critical loads.

• Parallel and Three-Phase Operation:

  • Up to 6 units can be connected in parallel for increased power output.

  • Configurable for three-phase operation using three units of the same model (L2 disabled in multi-phase setups).

Specifications

What Our Experts Think

• Dual AC Inputs: Automatically switches between two independent power sources (e.g., grid and generator) for seamless operation.
• 3000VA Pure Sine Wave Output: Provides clean, stable power for sensitive devices and high-demand equipment.
• Integrated Smart Charger: Delivers 70A charging for 24V battery systems, ensuring efficiency and battery health.
• Dual 120V AC Outputs: Supports flexible power distribution for different load types and priorities.
• Scalable Power: Compatible with parallel and three-phase configurations, allowing for system expansion.
• Built for Reliability: Advanced safety features include overload, short-circuit, and temperature protection.

Q&A

Q: What is the input voltage for this unit?
A: It operates on 24VDC input voltage.

Q: What is the power output capacity?
A: It delivers 3000VA of continuous output power.

Q: How many AC outputs are available?
A: It features two 120V AC outputs for powering multiple devices or circuits.

Q: Does it support dual AC inputs?
A: Yes, it seamlessly switches between two AC inputs, such as grid power and a generator.

Q: What is the charger current?
A: It provides a charging current of up to 70A for batteries.

Q: What are the key features?
A: Includes an inverter, charger, automatic power transfer, and advanced system integration capabilities.

Q: What are the typical applications?
A: Perfect for off-grid, marine, RV, and backup power systems requiring reliability and versatility

Maintenance Tips

• Ventilation: Ensure cooling vents and fans remain unobstructed and clean to prevent overheating.
• Connections: Inspect DC (24V) and AC terminals regularly for tightness and corrosion; clean if needed.
• Battery Management: Use compatible 24V batteries, monitor charge levels, and avoid deep discharges.
• Load Capacity: Do not exceed the 3000VA rating for optimal performance and longevity.
• Firmware Updates: Update firmware via Victron tools to enhance features and ensure compatibility.
• Environmental Conditions: Operate in a dry, well-ventilated area with a stable temperature (0–40°C).
• Dual Outputs: Test the dual 120V AC outputs and the 50/50Hz switch periodically for proper functionality.
• Wiring Maintenance: Check all cables and connections for wear or damage; replace faulty wiring promptly.
