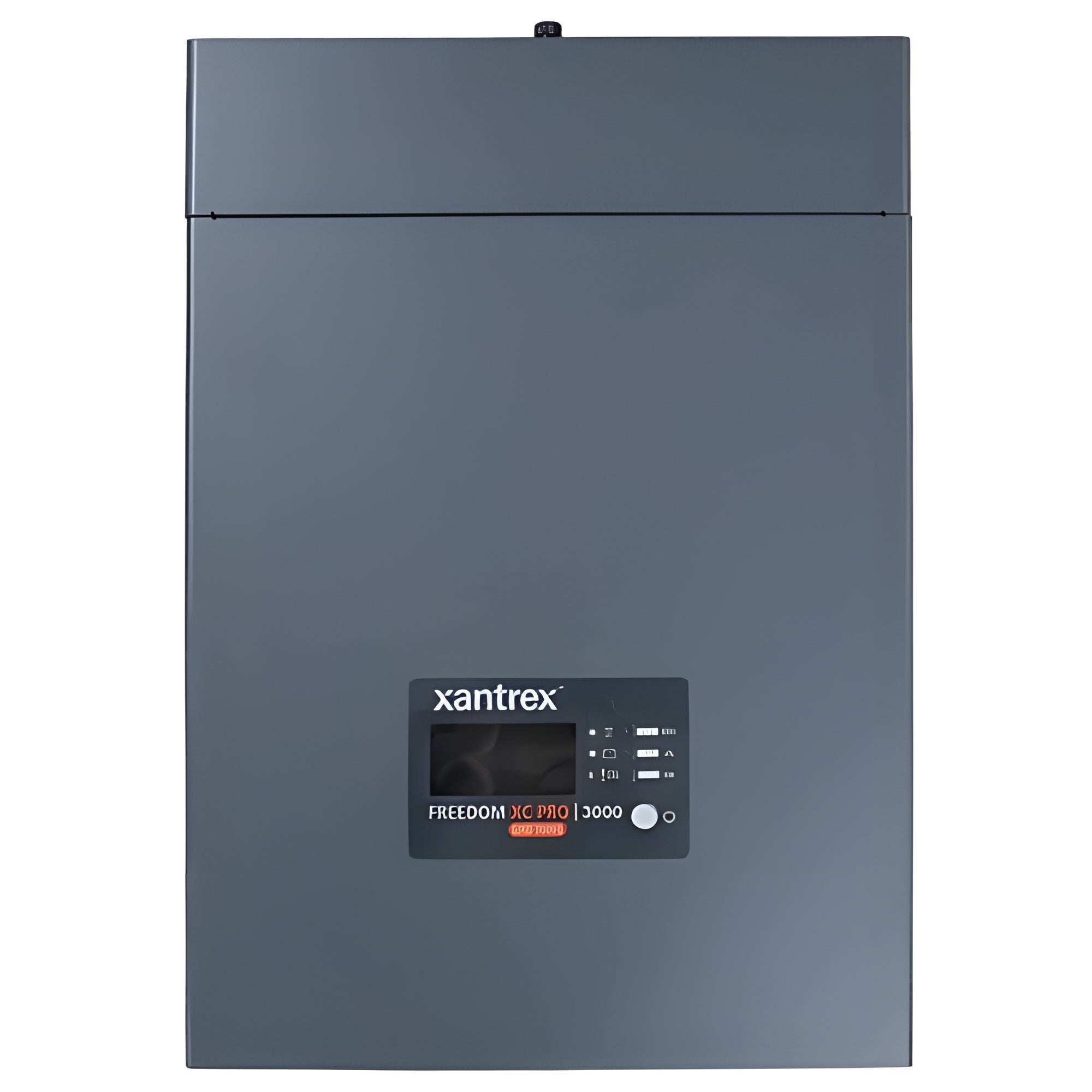

Xantrex 818-3010 Freedom Xc Pro 3000 Inv/Chgr X168183010

Freedom Xc Pro 3000 Inv/Chgr

The Freedom XC PRO inverter/charger, supporting RV-C and J1939 protocols, is the most versatile and flexible AC power solution in the market today. It supports seamless integration with third party monitoring and control systems. It also features a 100 amp (2000W model) / 150 amp (3000W model) battery charger and light weight package. It cranks out full output in invert or charge mode from -4°F (-20°C) - 104°F (40°C) for operation in all climate temperatures. The extended surge rating enables compressor loads such as an A/C or a fridge to start reliably.

Specifications

Features

• Extended Surge Rating: Surges to 2X continuous power for 5 seconds for motor loads

• True Sine Wave AC Power: For operation of sensitive and motor loads

• Ignition Control: Feature to turn inverter on/off via a 12 VDC signal and to minimize battery drain by switching the inverter off when the ignition key is turned off

• Wide 10-18 VDC Input Range: Ensures inverter operation on high voltage alternators found on many new vehicle chassis

• Programmable AC Under-Voltage (85-110VAC) Shutdown: Feature ideal to operate under weak shore power or generator input

• Built in 50A AC Transfer Relay (3KW model): Senses when outside AC Power is present and transfers the load from the inverter to the source of incoming power.

• Power Factor Corrected Multi-Stage Charging: Utilizes less shorepower when charging batteries. This frees up more usable AC power for running electrical devices and appliances and reduces the likelihood of tripping shorepower breakers

• Programmable: Configurable 3 stage temperature compensated battery charge algorithm for optimal charging of almost any battery type up to 18V

• Battery Equalization: Maximizes flooded battery life

• Power Share: Prioritizes AC loads by reducing the charge current and maintaining the total input current to less than the breaker setting.

Video

Product Manual

✓ X168183010 Product Manual

What Our Experts Think

• High-Powered Conversion: The Xantrex 818-3010 Freedom XC Pro 3000 provides 3000W of continuous pure sine wave power, converting 12V DC to 120V AC, making it ideal for powering larger appliances, electronics, and tools in RVs, boats, or off-grid systems.
• Integrated 100A Charger: With a built-in 100A battery charger, this unit ensures your battery bank is charged quickly and efficiently, maintaining a consistent power supply even during extended off-grid stays.
• Pure Sine Wave Output: The Freedom XC Pro delivers clean, stable power, which is safe for sensitive devices such as laptops, medical equipment, and home appliances, preventing potential damage caused by power surges or voltage instability.
• Advanced Safety Features: Equipped with overload, short circuit, and thermal protection, the inverter/charger ensures reliable and safe operation, protecting both your equipment and the unit itself from electrical faults.
• Rugged Design: Built for durability, the Freedom XC Pro is designed to withstand the demands of off-grid living and mobile applications, making it an excellent choice for RVs, boats, and remote power needs.
• Energy Efficient: Optimized for efficiency, the Freedom XC Pro minimizes energy loss during the conversion process, allowing for longer battery life and more efficient power usage, especially in off-grid environments.
• User-Friendly Interface: Featuring simple controls and clear status indicators, this unit is easy to operate and monitor, even for those without extensive technical experience.

Q&A

Q: What is the Xantrex 818-3010 Freedom XC Pro 3000 Inverter/Charger?
A: The Xantrex 818-3010 Freedom XC Pro 3000 is a 3000-watt inverter/charger that converts 12V DC power from a battery into 120V AC power for household appliances and electronics. It also charges the battery from an AC source, providing a complete power solution for off-grid, RV, and backup applications.

Q: What is the power capacity of the Xantrex 818-3010?
A: The Xantrex 818-3010 offers a continuous power output of 3000 watts, with a surge power capacity of up to 6000 watts, suitable for most residential and recreational needs.

Q: How does the Xantrex 818-3010 work?
A: This inverter/charger takes 12V DC battery power and converts it to 120V AC power, which can be used to run common household electronics and appliances. It also charges the connected battery system from an AC power source, such as shore power or a generator.

Q: Is the Xantrex 818-3010 suitable for off-grid use?
A: Yes, the Xantrex 818-3010 is designed for off-grid applications such as RVs, boats, cabins, and mobile homes. It’s perfect for providing reliable power where conventional electricity is unavailable.

Q: What types of devices can the Xantrex 818-3010 power?
A: The Xantrex 818-3010 can power a wide range of devices including refrigerators, laptops, lights, small appliances, and other electronics with a combined power consumption of up to 3000 watts.

Q: How efficient is the Xantrex 818-3010?
A: The Xantrex 818-3010 is designed for high efficiency with minimal energy loss, ensuring optimal power delivery to your devices while conserving energy when in standby mode.

Q: Is the Xantrex 818-3010 easy to install?
A: Yes, the Xantrex 818-3010 is relatively easy to install and comes with clear instructions for wiring and setup. Depending on your system, professional installation may be recommended.

Q: Does the Xantrex 818-3010 have any safety features?
A: Yes, the Xantrex 818-3010 includes safety features such as overload protection, over-temperature shutdown, and short circuit protection, ensuring safe and reliable operation.

Q: Does the Xantrex 818-3010 come with a warranty?
A: Yes, the Xantrex 818-3010 is covered by a manufacturer’s warranty. Please refer to the product documentation for specific warranty terms and details.

Maintenance Tips

• Regular Cleaning: Clean the exterior of the inverter/charger with a soft, dry cloth to remove dust, dirt, and debris. For thorough cleaning, use a vacuum with a soft brush attachment to clear dust from the vents and fan areas.
• Ensure Proper Ventilation: Place the inverter/charger in a well-ventilated area with ample airflow around the unit. Avoid blocking vents or placing the unit in confined spaces to prevent overheating.
• Inspect Electrical Connections: Regularly inspect the DC input and AC output connections for signs of wear, corrosion, or looseness. Ensure all connections are tight and clean to maintain proper functionality.
• Monitor System Performance: Keep an eye on the inverter/charger for any warning lights, error codes, or unusual sounds. If issues arise, address them promptly to avoid damage or performance degradation.
• Check Fuses and Circuit Breakers: Inspect the fuses and circuit breakers for wear or damage. Replace any damaged components immediately to ensure safe operation.
• Avoid Overloading: Make sure the connected devices do not exceed the inverter's rated power capacity. Overloading the system can cause overheating and potential damage to internal components.
• Test the System: Periodically test the inverter/charger by running a load to ensure it is delivering stable AC output. Testing helps verify that it is functioning properly under normal conditions.
• Proper Storage: When not in use for long periods, store the inverter/charger in a dry, cool place away from excessive dust, moisture, or extreme temperatures.
