Zoeller Aquanot Spin 508 1/3 HP 115V Cast Iron Submersible Sump Pump System with 12V Battery Backup - Z5080006

Zoeller Aquanot Spin 508 1/3 HP 115V Cast Iron Submersible Sump Pump System with 12V Battery Backup - Z5080006

Reliability is priceless for any homeowner. When accidents happen, they deserve to have the tools and technology necessary to remain safe and secure in their home. Homeowners can benefit from the Aquano  Spin 508 — a heavy-duty backup sump pump system that’s ready to work whenever the existing pump goes down or more strength is needed.

The Aquanot Spin 508 is a backup sump pump with a DC battery system that gives you up to six hours of uninterrupted pumping. This double-sealed pump performs at 35 gallons per minute (GPM) using 12.7 volts while being 10 feet submerged. It also offers two days of battery protection.

As a self-testing 12-volt backup sump pump system, the Aquanot® Spin 508 maintains a sophisticated controller responsible for charging, offering automatic, supervised switch connections, and running intelligent diagnostics. This cost-effective battery backup solution for your existing sump pump uses an audible alarm and flashing lights to alert homeowners when an issue has occurred.

Features

• Each pump is individually tested and achieves 35 GPM at 10′ and 12.7 volts.

• Works alongside submersible or pedestal pumps to provide up to 6 hours of continuous high performance pumping when the primary pump power is interrupted or more capacity is needed.

• The controller is an automatic charging and protection system, including a low battery indicator and alarm, self-testing technology, and an optional high water switch.

• The included battery case will fit all group size 27, 29, and 31 batteries.

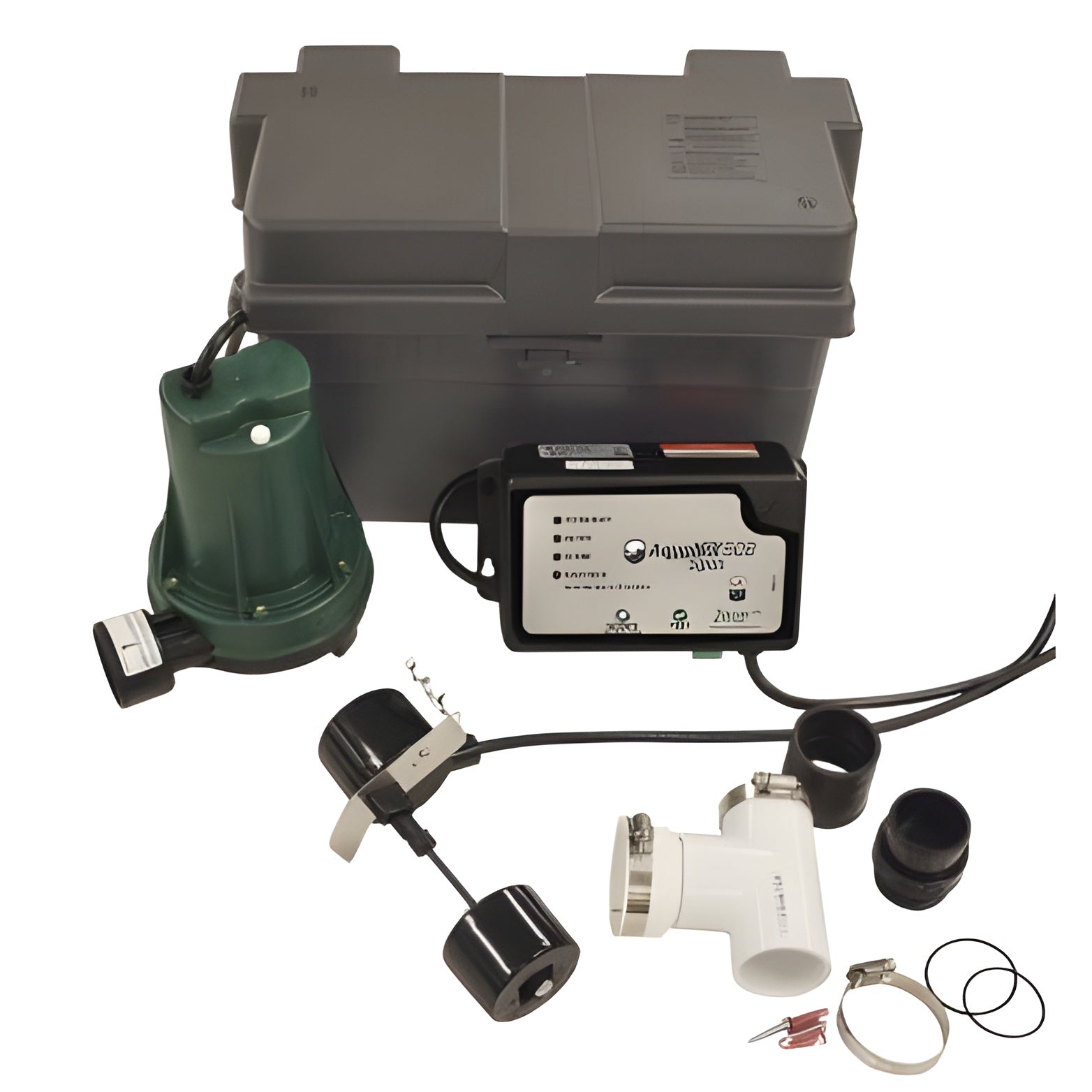

• An integrated DC pump discharge check valve, additional AC pump thread-in check valve, tee, and adapter are included.

• The charger uses the latest switch mode technology available. This allows for an extremely efficient charger in a compact design.

Documents

Zoeller Model 508 Specifications

Zoeller Model 508 Installation Guide
